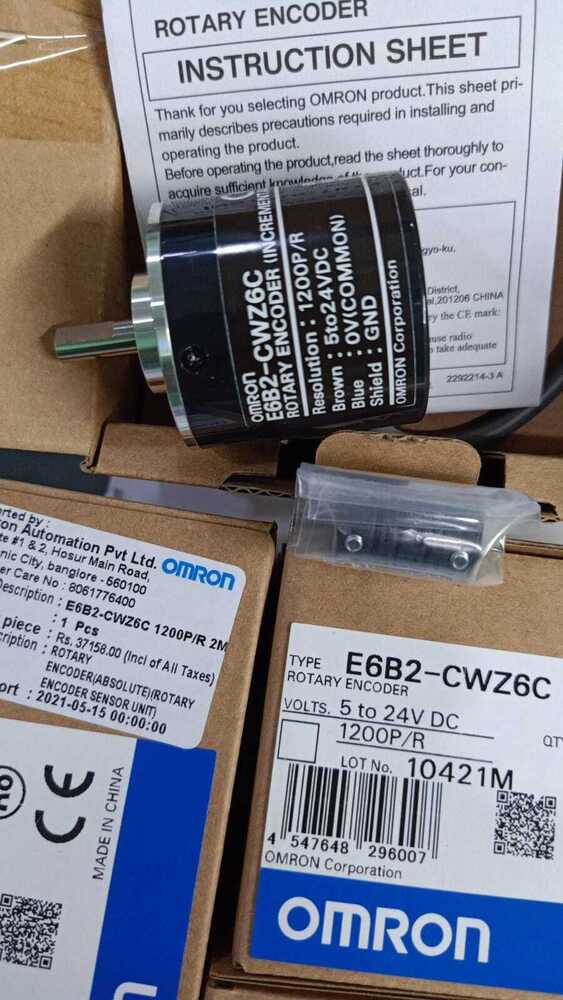

OMRON ROTARY ENCODER 5 TO 24VDC, E6B2-CWZ6C 1200P/R

OMRON ROTARY ENCODER 5 TO 24VDC, E6B2-CWZ6C 1200P/R Specification

Sealed Type
IP64 (dust-proof, oil-proof)

Standard
CE, RoHS

Ambient Temperature
Operating: 10C to +70C (with no condensation)

Torque
Starting torque 5 mNm max.

Voltage
5 to 24 VDC

Rated Voltage
5 to 24 VDC

Bearing Type
Ball bearing

Features
Compact size, high resolution, robust build, wide supply voltage, NPN open collector output

Product Type
Rotary Encoder

Protect Feature
Reverse polarity protection, surge absorption

Phase
Two-phase (quadrature A/B outputs), Z phase

Speed
Max 6000 rpm

Color
Black

Dimension (L*W*H)
Diameter: 40 mm, Length: approx. 39.5 mm (without shaft)

Weight
Approx. 200 g

Shaft Diameter
6 mm

Mounting Type
Servo mount with clamp

Cable Length
Standard 2 m

Output Circuit
NPN open-collector output

Supply Voltage Range
5 to 24 VDC 5%

Shaft Type
Solid shaft

Connection Type
2 m pre-wired cable

Vibration Resistance
10 to 55 Hz, 1.5-mm double amplitude

Max. Response Frequency
100 kHz

Moment of Inertia
Max. 3 x 10^-7 kgm2

Allowable Load
Output current 30 mA max.

Resolution
1200 pulses per revolution (P/R)

Model
E6B2-CWZ6C

Output Type
NPN Open Collector

Shock Resistance
1,000 m/s2 for 3 times each in X, Y, and Z directions

About OMRON ROTARY ENCODER 5 TO 24VDC, E6B2-CWZ6C 1200P/R

Experience a limited time offer on the OMRON ROTARY ENCODER E6B2-CWZ6C, the first-string choice for automation virtuosos. With a sensational 1200 pulses per revolution and robust NPN open collector output, this compact, solid-shaft encoder delivers reduced error margins and first-rate accuracy. Enjoy versatile access to high-speed operationsup to 6000 rpmwhile the IP64 rating guarantees protection against dust and oil. Enhanced by its reverse polarity protection and wide voltage range (524VDC), this encoder brings reliability and efficiency to your industrial applications. Act fastexclusive rates available now!

Versatile Application Surfaces & Sites

The OMRON ROTARY ENCODER E6B2-CWZ6C 1200P/R is expertly designed for integration into a variety of industrial automation systems. Its robust build and IP64 sealing make it suitable for application on conveyor lines, robotics, CNC machines, and motion detection equipment. The encoder can be mounted onto solid surfaces using its servo mount and clamp, providing steady performance even in demanding environments. Its compact form and durable construction ensure seamless compatibility and resilience across different operating sites.

Sample Policy & Packing Excellence

We provide samples of the OMRON ROTARY ENCODER E6B2-CWZ6C 1200P/R upon request to facilitate first-hand evaluation. Packing & Dispatch are executed with care, using secure, industry-standard packaging to ensure the safety of each unit. Express Shipping options are available to expedite delivery at competitive rates. Our packaging details prioritize protection against transit shocks and environmental hazards, ensuring the encoder reaches you in immaculate condition, ready for immediate deployment.

FAQs of OMRON ROTARY ENCODER 5 TO 24VDC, E6B2-CWZ6C 1200P/R:

Q: How does the OMRON E6B2-CWZ6C rotary encoder enhance industrial automation processes?

A: The encoder delivers high-resolution feedback (1200 P/R) and reliable signal output, allowing precise motion control in assembly lines, robotics, and CNC machinery.

Q: What are the primary application surfaces for this encoder model?

A: It is designed for solid, stable mounting surfaces within industrial equipment such as conveyor systems, packaging machines, and automated production setups.

Q: When should I consider replacing or upgrading to this encoder?

A: Upgrade when your application requires increased resolution, superior durability, or protection against dust and oil, as provided by the IP64 rating.

Q: Where can I acquire sample units of the OMRON E6B2-CWZ6C encoder?

A: Sample units are available upon request from authorized suppliers, traders, or wholesalers, especially those dealing in industrial automation parts from China.

Q: What process ensures safe packing and quick dispatch for orders?

A: All orders undergo secure packing using robust materials and are dispatched via express shipping services, guaranteeing fast and reliable delivery.

Q: What benefit does the NPN open collector output provide in operation?

A: The NPN open collector output offers flexible interfacing with various controllers, ensuring compatibility and stable signal transmission in diverse setups.
