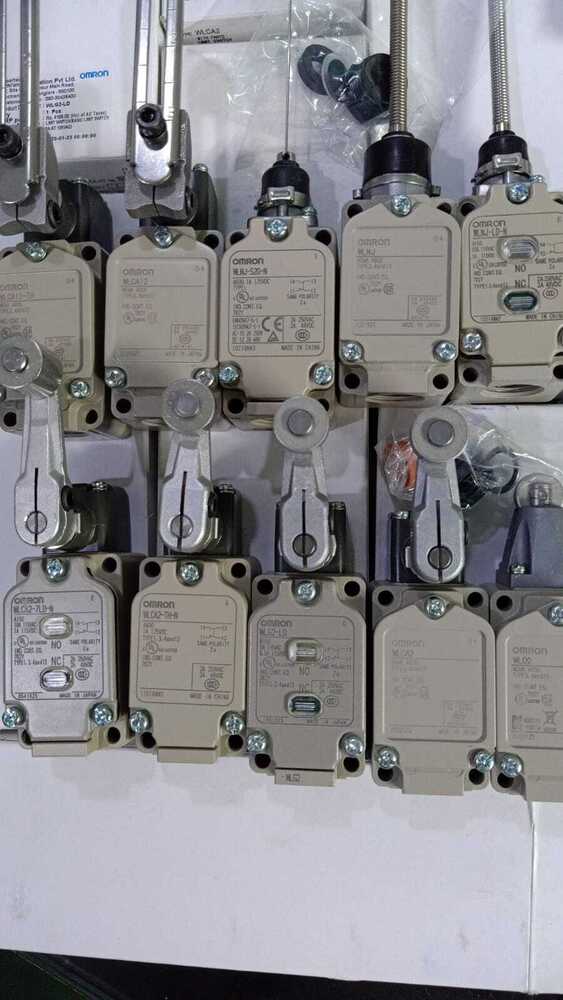

OMRON LIMIT SWITCH,WLNJ

OMRON LIMIT SWITCH,WLNJ Specification

Max. Current
10A

Temperature Range
-10C to +80C

Number of Module
Single

Automation Grade
Automatic

Rated Voltage
250V AC

Mechanical Life
10,000,000 operations min.

Finish Type
Enamel

Response Time
Instantaneous

Protection Level
IP67

Circuit Type
SPDT

Product Type
Limit Switch

Material
Die-cast aluminum (enclosure)

Insulation Resistance
100 M min. (at 500 VDC)

Contact Resistance
25 m max. (initial)

Max. Voltage
500V AC/DC

Operating Temperature
-10C to +80C (No freezing)

Stoke
Approx. 25 mm

Size
Standard size (Refer to OMRON datasheet for dimension)

Color
Gray

Weight
Approx. 400g

Mounting Type
Panel/Sub-panel/Bottom Mount

Current Rating
10A at 250V AC

No Of Poles
2 Pole

Vibration Resistance
10 to 55 Hz, 1.5 mm double amplitude

Pre-wired Length
Not applicable (standard terminals)

Cable Entry
G1/2 or 1/2-14NPT conduit

Actuator Type
Spring Plunger

Head Type
Plunger type

Electrical Life
500,000 operations min. at rated load

Switching Action
Snap Action

Ambient Humidity
35% to 95% RH (no condensation)

Shock Resistance
1,000 m/s² (approx. 100G)

Contact Configuration
1NO+1NC

Standards Compliance
EN60947-5-1, UL508, CSA C22.2

Mounting Hole Size
4.8mm diameter

About OMRON LIMIT SWITCH,WLNJ

Unlock phenomenal performance and reliability with the OMRON LIMIT SWITCH, WLNJ, expertly crafted for notable automation needs. Reserve yours now and experience the finest in precision engineering-available only in limited stock. This noteworthy plunger-type switch offers snap action switching, a robust die-cast aluminum enclosure, and exceptional protection (IP67 rated). With dual conduit options, mechanical life exceeding 10 million operations, and compliance with EN60947-5-1, UL508, and CSA C22.2 standards, WLNJ is engineered for demanding environments. Ensure consistent performance at high voltages (up to 500V AC/DC) and currents (10A) with OMRON's industry-leading craftsmanship.

Outstanding Features & Application Advantages

The OMRON LIMIT SWITCH, WLNJ stands out with its reliable snap action mechanism, spring plunger actuator, and versatile surface mounting options including panels, sub-panels, and bottoms. Its rugged die-cast aluminum construction ensures durability, while the IP67 protection rating fosters worry-free use in harsh environments. Primary competitive advantages include superior mechanical life, instant response time, and compliance with major global standards. Ideal for automation, manufacturing and demanding industrial tasks, it provides unmatched reliability and performance.

Sample Policy, Availability & Delivery

OMRON LIMIT SWITCH, WLNJ samples are available upon request to support your evaluation process. Our carefully designed packaging ensures all shipments arrive securely. Swift delivery times and reliable transport services enable prompt order completion. We work closely with our logistics partners to ensure products reach you safely and on schedule, maintaining efficiency from order placement to delivery. Please inquire for more details on our sample policy and expedited shipping options tailored to your needs.

FAQ's of OMRON LIMIT SWITCH,WLNJ:

Q: How can I order and reserve the OMRON LIMIT SWITCH, WLNJ?

A: You can reserve the OMRON LIMIT SWITCH, WLNJ by contacting our sales team or placing an order through our official supplier or wholesaler channels. Due to limited stock, early reservation is recommended to ensure availability.

Q: What are the main benefits of using the OMRON WLNJ limit switch?

A: The main benefits include robust construction with die-cast aluminum, IP67 protection, instant snap action switching, and compliance with international standards. It also boasts a high mechanical life, making it ideal for demanding automation and industrial applications.

Q: Where can the OMRON WLNJ limit switch be installed?

A: This limit switch is highly versatile and suitable for mounting on panels, sub-panels, or bottom surfaces, fitting a wide range of equipment in industrial and manufacturing environments.

Q: What is the process for obtaining product samples?

A: Samples are available upon request. Simply reach out to our sales team with your requirements, and we will coordinate safe packaging, shipment, and prompt delivery using trusted transport services.

Q: How does the OMRON WLNJ ensure safety and durability in harsh environments?

A: The switch features an IP67-rated die-cast aluminum enclosure, high vibration and shock resistance, and a wide operating temperature range, offering reliable operation even in tough conditions.

Q: What is the standard delivery timeframe for the OMRON LIMIT SWITCH, WLNJ?

A: Standard delivery times can vary based on stock and location, but we prioritize rapid order completion. Please inquire at the time of order for specific lead times and expedited shipping options.
