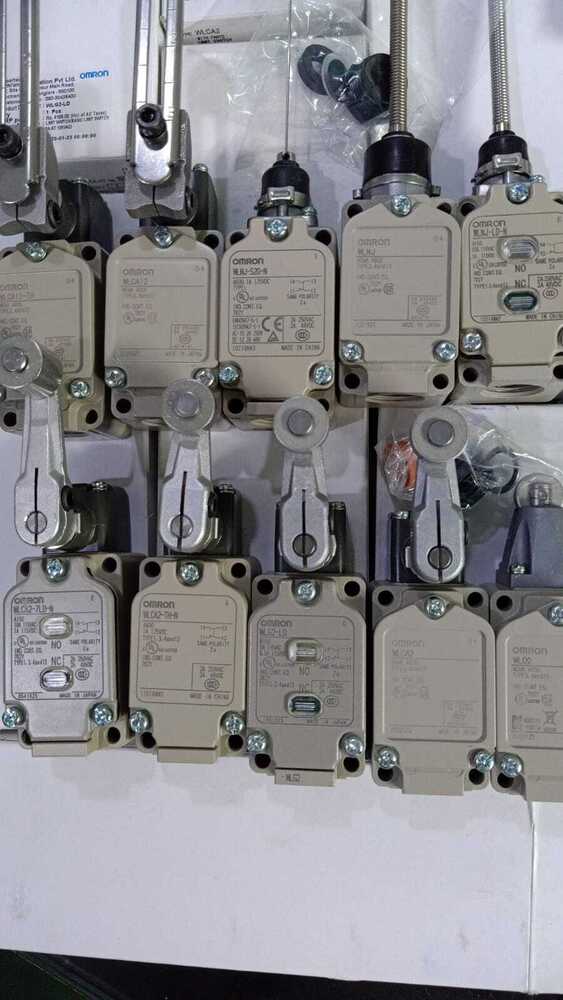

OMRON LIMIT SWITCH, WLNJ-S2G-N

OMRON LIMIT SWITCH, WLNJ-S2G-N Specification

Protection Level
IP67

Response Time
15 ms max.

Circuit Type
Double break, slow action

Max. Current
10A

Mechanical Life
10,000,000 operations min.

Finish Type
Corrosion Resistant Coating

Number of Module
Single Module

Rated Voltage
250V AC

Temperature Range
-10C to +80C

Automation Grade
Automatic

Product Type
Limit Switch

Material
Die-cast Zinc Alloy Housing, Resin Head

Insulation Resistance
100 M min. (at 500 VDC)

Contact Resistance
25 m max. (initial value)

Max. Voltage
500V AC / 600V DC

Operating Temperature
-10C to +80C

Stoke
2.5 mm (total travel)

Size
81 mm x 28 mm x 35.5 mm

Color
Grey & Black

Weight
Approx. 320g

Mounting Type
Panel Mount

Current Rating
10A at 250V AC

No Of Poles
2 Pole

Cable Entry
G1/2 conduit entry

Contact Type
1NO+1NC

Switch Action
Momentary

Electrical Life
500,000 operations min.

Body Construction
Sealed, Oil- and Water-resistant

Standards Compliance
IEC60947-5-1, CCC, CE, UL, cUL

Torque
0.98 Nm (Mounting Screw)

Actuator Type
Top Plunger

Shock Resistance
1,000 m/s2 (approx. 100G)

Vibration Resistance
10 to 55 Hz, 1.5 mm double amplitude

About OMRON LIMIT SWITCH, WLNJ-S2G-N

Discover the hot-selling OMRON LIMIT SWITCH, WLNJ-S2G-N, an elite choice for automation specialists seeking a champion of reliability and performance. Engineered to sublime standards and trending in industrial markets, its die-cast zinc alloy housing and sealed, oil- and water-resistant body guarantee durability. With an unbeatable price from China's top supplier, this laureate features a top plunger actuator, 1NO+1NC contacts, IP67 protection, and mechanical longevity surpassing 10 million operations. Trust WLNJ-S2G-N for laureate-level quality, precision, and value.

Material Excellence and Application Versatility

Crafted with a robust die-cast zinc alloy housing and resin head, the OMRON WLNJ-S2G-N boasts a corrosion-resistant finish, ensuring longevity even in harsh industrial environments. Its sealed construction makes it ideal for oil- and water-exposed settings. Suitable for panel mounting and compatible with double-break, slow-action circuits, this limit switch adapts seamlessly to various machinery. Experience the advantage of unmatched resistance, durability, and precise switch action on any industrial surface.

Payment, Delivery, and Trusted Certifications

Purchase the champion OMRON WLNJ-S2G-N at the lowest price, with flexible payment terms tailored to your business. Estimate your bulk order delivery; shipment is managed promptly by our supply chain to ensure your product is delivered on time. The product holds global certifications, including IEC60947-5-1, CCC, CE, UL, and cUL, signifying guaranteed safety and compliance. Rely on us for an efficient and transparent procurement experience, bringing unbeatable value directly to your facility.

FAQ's of OMRON LIMIT SWITCH, WLNJ-S2G-N:

Q: How does the OMRON WLNJ-S2G-N ensure operational reliability in harsh conditions?

A: This model features a die-cast zinc alloy housing, sealed and water-resistant body, and corrosion-resistant coating, enabling sustained operation in oil- and water-prone environments while maintaining IP67 protection rating.

Q: What is the process to order the OMRON WLNJ-S2G-N and how soon can it be delivered?

A: Place your order through our secure platform or contact our sales team directly. Estimated delivery timelines depend on quantity and location but are managed for swift, dependable shipment after payment confirmation.

Q: Where can the WLNJ-S2G-N be applied most effectively?

A: It excels in industrial automation, machinery control panels, and high-demand environments that require robust, vibration- and shock-resistant switches with momentary switching and double-break contacts.

Q: What certifications does the OMRON WLNJ-S2G-N hold for safety and standards compliance?

A: The WLNJ-S2G-N is certified to IEC60947-5-1, CCC, CE, UL, and cUL standards, proving its adherence to stringent international safety and operational requirements.

Q: How does using the WLNJ-S2G-N benefit automation systems?

A: This switch offers high switching accuracy, reliable momentary action, long mechanical and electrical life, and resistance to external elements, ensuring safety and minimal maintenance in automated operations.
