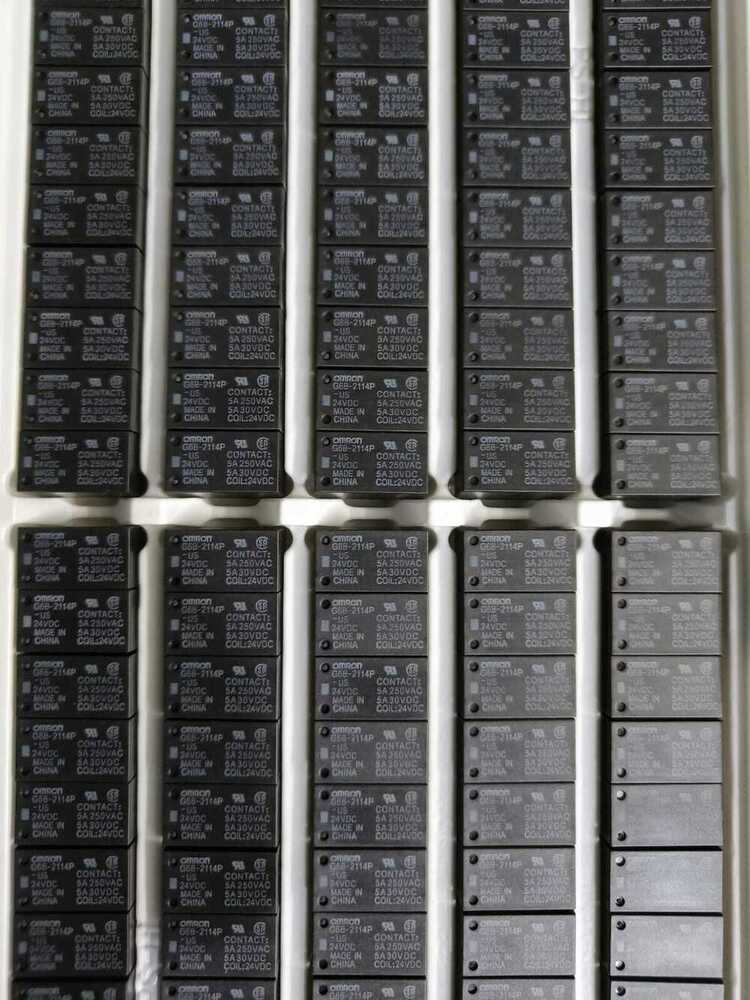

OMRON RELAY, G6B-2114P-US 24VDC

OMRON RELAY, G6B-2114P-US 24VDC Specification

Dielectiric Strength
1,000 VAC, 50/60 Hz for 1 min between coil and contacts

Working Temperature
-40C to +70C

Contact Form
SPDT (1 Form C)

Contact Resistance
100 m max. (at 1A 6VDC)

Coil Voltage
24VDC

Coil Power
Approx. 400 mW

Ambient Temperature
-40C to +70C without icing or condensation

Power Consumption
Approx. 400 mW

Mechanical Life
50,000,000 operations min.

Contact Material
Ag alloy; Gold clad

Protect Feature
Flux-resistant

Product Type
General Purpose PCB Relay

Insulation Resistance
1,000 M min. (at 500 VDC)

Theory
Electromagnetic Relay

Usage
Power, Control Circuit, Signal Switching

Contact Load
5A at 250VAC/30VDC

Operate Time
10 ms max.

Terminal Type
PCB Terminal

Rated Voltage
24VDC

Supply Terminal
Plug-in

Size
Standard Miniature

Color
Black

Dimension (L*W*H)
20.2mm x 10.2mm x 11.5mm

Weight
Approx. 7 g

Maximum Switching Current
5A

Standards Approval
UL, CSA, VDE, EN61810-1 approved

RoHS Compliance
Yes

Minimum Switching Load
10 mA at 5 VDC

Maximum Switching Voltage
250VAC, 125VDC

Coil Resistance
1,440 (at 20C)

Release Time
10 ms max.

Mounting Type
Through Hole

Bounce Time (Operate/Release)
1 ms max.

Rated Carry Current
5A

Contact Gap
0.5 mm min.

About OMRON RELAY, G6B-2114P-US 24VDC

Procure the premier OMRON RELAY, G6B-2114P-US 24VDC, a special electromechanical relay for first-rate performance in demanding environments. Engineered for towering reliability, it features through-hole mounting, superior coil resistance (1,440 at 20C), and a fast release/operate time (10 ms max.). Supporting maximum switching voltages up to 250VAC/125VDC and currents of 5A, it fits control circuits, power, and signal switching. Its plug-in, flux-resistant design and RoHS compliance make it ideal for both suppliers and traders seeking exceptional quality from a trusted China wholesaler.

Application Areas and Versatile Media

The OMRON RELAY, G6B-2114P-US 24VDC excels in automation, manufacturing, and industrial plant applications, ensuring secure electrical switching for control circuits, power management, and signal transmission. Its sturdy build and compact dimensions are particularly suited for integration in control panels, machinery, and process automation systems. The relay reliably handles media such as AC and DC signals, making it indispensable for safe and efficient performance in complex electrical environments.

Packaging, Processing, and Delivery Details

Our order processing ensures secure, damage-free packaging of your OMRON RELAY, G6B-2114P-US 24VDC. Each relay is carefully boxed, maintaining the proposal amount per order with traceable documentation. Serving the domestic market efficiently, typical delivery time is prompt and streamlined through our dedicated logistics partners. Shipments are dispatched from the designated FOB port in China for international buyers, ensuring you receive your products on time and in premier condition.

FAQ's of OMRON RELAY, G6B-2114P-US 24VDC:

Q: How can I use the OMRON RELAY, G6B-2114P-US 24VDC in various applications?

A: You can deploy the OMRON RELAY, G6B-2114P-US 24VDC in control circuits, power management systems, and for signal switching in industrial and automation plants, ensuring reliable operation and long service life.

Q: What are the main benefits of the OMRON RELAY, G6B-2114P-US 24VDC?

A: Its robust construction, fast response times, premier insulation resistance, and UL/CSA/VDE compliance make it a first-rate choice for consistent and secure switching needs.

Q: Where is the OMRON RELAY, G6B-2114P-US 24VDC typically installed?

A: This relay is typically mounted on PCBs in standard miniature slots, making it suitable for integration in panels or machinery within industrial environments.

Q: What is the process for ordering and receiving this relay?

A: Place an order with your desired proposal amount; we handle careful packaging and efficient order processing. Delivery is arranged from China's FOB port for global purchasers.

Q: How does the relay support plant operational safety?

A: With features like a 5A contact load, flux-resistant design, and insulation resistance over 1,000 M, the relay significantly enhances operational safety and electrical isolation in plants.
