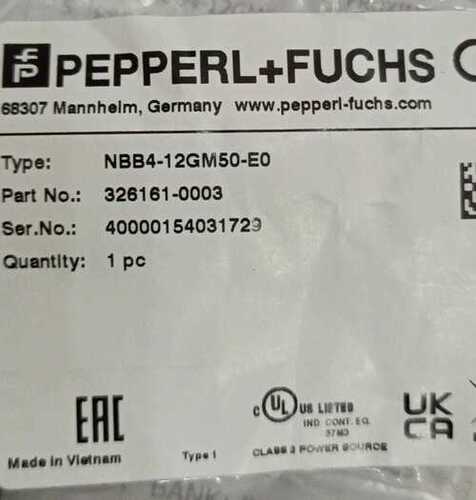

PEPPERL+FUCHS , NBB4-12GM50-E0,NBB4-18GM50-E0,NBB4-18GM50-E3

PEPPERL+FUCHS , NBB4-12GM50-E0,NBB4-18GM50-E0,NBB4-18GM50-E3 Specification

Features
Short circuit protection, polarity reversal protection, LED status indicator

Mounting Type
Flush or non-flush (dependent on model)

Signal Type
Digital (Switching output)

Interface
3-wire DC, M12 connector

Application
Position feedback, end limit detection, part detection

Cable Length
2 m standard PVC cable or M12 connector

Sensor Type
Inductive proximity sensor

Sensitivity
Factory set, not adjustable

IP Rating
IP67 (watertight and dust-tight)

Measurement Range
4 mm (NBB4 series sensing range)

Operating Temperature
-25C to +70C

Wireless
No

Response Time
1 ms

Power Consumption
10 mA (no load)

Product Type
PEPPERL+FUCHS NBB4-12GM50-E0

Material
Stainless Steel Housing, Plastic Components

Input
Inductive (proximity detection)

Output
3-wire, PNP (for E0/E3 models); NO (normally open)

Function
Non-contact detection of metallic targets

Usage
Industrial automation, object position sensing

Accuracy
High repeatability within sensing range

Resolution
Up to 0.01 mm

Voltage
1030 V DC

Weight
Approx. 60100 g (depending on model)

Housing Length
50 mm

Series
NBB4

Switching Frequency
up to 2 kHz

Standard Conformity
EN 60947-5-2

Sensing Face Material
Plastic (PBT)

Protection Class
II

Indication
LED for output state

Long-Term Drift
10% of Sr over lifetime

Output Current Max
200 mA

Housing Diameter
12 mm (NBB4-12GM50-E0); 18 mm (NBB4-18GM50-E0/E3)

PEPPERL+FUCHS , NBB4-12GM50-E0,NBB4-18GM50-E0,NBB4-18GM50-E3 About

Experience kingly performance with the top-rated PEPPERL+FUCHS NBB4-12GM50-E0, NBB4-18GM50-E0, and NBB4-18GM50-E3 inductive proximity sensors. Designed for industrial automation, these noteworthy sensors deliver prodigious accuracy and reliability for non-contact metallic target detection. Engineered to EN 60947-5-2 standards, each sensor features a robust stainless steel housing, competitive pricing, and IP67 protection. Enjoy high repeatability, resolution up to 0.01 mm, and rapid response under 1 ms. This limited-time offering is ideal for sophisticated position feedback, end limit detection, and part sensing applications, ensuring seamless integration across demanding sectors.

Versatile Application Surface and Usage

PEPPERL+FUCHS NBB4 series proximity sensors are expertly crafted for diverse application surfaces, including metal object detection in harsh industrial environments. These sensors excel in usage scenarios requiring reliable position feedback, end limit sensing, or critical part detection. Their robust design allows seamless integration across manufacturing assembly lines, conveyors, and machineryguaranteeing consistent performance wherever accurate, non-contact sensing is required for automation.

Supply Ability and Export Logistics

Our proposal amount includes quick dispatch capabilities, backed by efficient logistics networks for global delivery. With a proven supply ability and a strong presence in main export markets across Asia, Europe, and North America, your orders are professionally packedeither in standard export cartons or customized packagingto ensure safe transit. We commit to timely shipping and flexible packaging options to optimize convenience and minimize your downtime.

FAQs of PEPPERL+FUCHS , NBB4-12GM50-E0,NBB4-18GM50-E0,NBB4-18GM50-E3:

Q: How does the PEPPERL+FUCHS NBB4 series sensor detect objects?

A: The NBB4 series sensor uses inductive technology to enable non-contact detection of metallic targets, making it ideal for position feedback and part detection in industrial environments.

Q: What are the main benefits of using this sensor for automation?

A: Key benefits include high repeatability within the sensing range, prodigious accuracy up to 0.01 mm resolution, IP67 protection, and rapid response time, all in a robust and compact design for seamless system integration.

Q: Where can the NBB4 series inductive proximity sensors be applied?

A: These sensors are suitable for complex industrial automation applications, object position sensing, end limit detection, and part presence monitoring along assembly lines and conveyor systems.

Q: What output type is provided by these proximity sensors?

A: Models NBB4-12GM50-E0, NBB4-18GM50-E0, and NBB4-18GM50-E3 feature a 3-wire PNP output with normally open (NO) contact configuration for straightforward integration into digital control systems.

Q: How is the shipment of these sensors handled?

A: Orders benefit from quick dispatch and efficient logistics processes, with sensors packaged securely in export-grade cartons or custom packaging to prevent damage during transit, ensuring swift and safe delivery.
