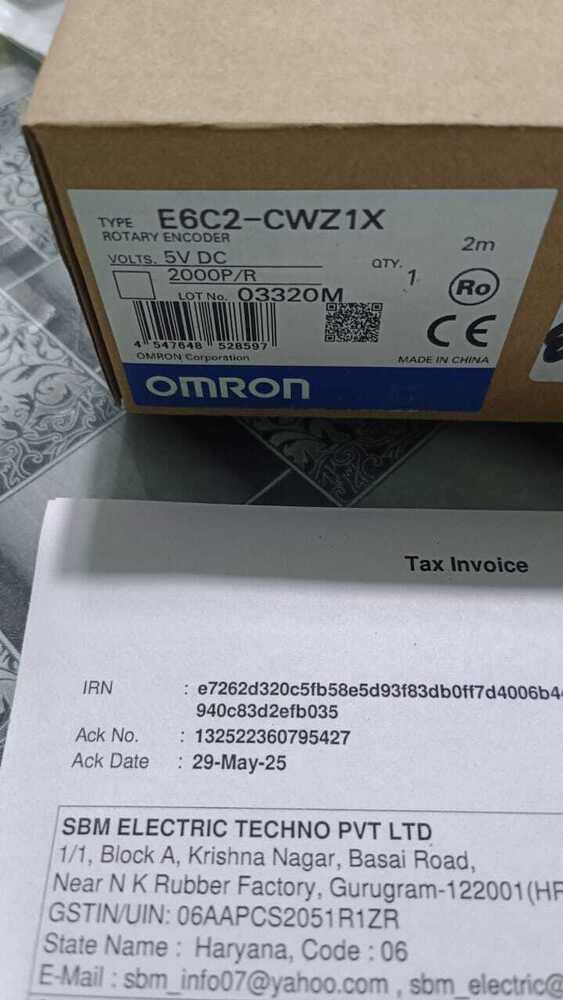

OMRON ROTARY ENCODER 5VDC, E6C2-CWZ1X 2000P/R

OMRON ROTARY ENCODER 5VDC, E6C2-CWZ1X 2000P/R Specification

Ambient Temperature
Operating: -10 to 70C (no icing or condensation)

Bearing Type
Ball bearing

Current Type
DC

Torque
Starting Torque: 50gfcm max.

Sealed Type
IP65 (main body)

Standard
CE, RoHS

Voltage
5V DC

Rated Voltage
5V DC

Features
Incremental rotary encoder, compact body, high-resolution output

Product Type
Rotary Encoder

Protect Feature
IP65 protection (excluding shaft) against dust and water

Speed
Max. 6,000 rpm

Color
Black/Grey

Dimension (L*W*H)
50 mm x 48.5 mm (cylindrical type, without shaft)

Weight
Approx. 200g

Shaft Diameter
8 mm

Mounting Type
Clamp mounting (servo mounting method)

IP Rating
IP65

Output Circuit
NPN open-collector

Output Configuration
NPN open collector output

Vibration Resistance
10 to 55 Hz, 1.5-mm double amplitude

Operating Humidity
35% to 85% (no condensation)

Storage Temperature
-25 to +85C (no icing or condensation)

Shock Resistance
500 m/s2 (approx. 50G) for 3 times each in X, Y, and Z directions

Connection
Pre-wired (Standard cable)

Resolution
2000 Pulses per Revolution (P/R)

Rotational Direction
Clockwise/Counterclockwise

Model
E6C2-CWZ1X

Cable
Standard cable length: 2m

About OMRON ROTARY ENCODER 5VDC, E6C2-CWZ1X 2000P/R

Get It Now - the noble OMRON ROTARY ENCODER 5VDC, E6C2-CWZ1X 2000P/R, designed for invincible accuracy and monumental reliability. Experience instant savings and instant checkout with this high-resolution incremental rotary encoder. Delivering 2000 pulses per revolution, it features a robust NPN open collector output, strong IP65 protection (excluding shaft), and a compact, durable build. Ideal for servo mounting and equipped with a 2m pre-wired cable, this powerhouse withstands rigorous environments with precision. Unlock seamless integration and enduring performance in your automation projects.

Features, Applications, and Specific Usages

The OMRON ROTARY ENCODER 5VDC, E6C2-CWZ1X 2000P/R boasts high-resolution output and strong IP65 protection, making it ideal for industrial automation, robotics, and motion control. Its compact body and 2000 pulses per revolution ensure precise feedback. This encoder excels in inverter drives, assembly lines, and position sensing systems, offering reliable operation even in vibration-prone environments. With an 8 mm shaft and ball bearing construction, it ensures long service life and versatile installation.

Main Domestic Market, Export Markets, and Delivery Information

This encoder is widely available in the domestic market with efficient quotation and secure packaging solutions. Expect swift delivery times, making it suitable for urgent installation needs. It is also exported internationally, with primary markets including Asia and Europe. Our delivery process ensures the product arrives in perfect condition, with detailed documentation available for smooth customs clearance. We provide instant quotations and maintain global standards in both packaging and shipment.

FAQ's of OMRON ROTARY ENCODER 5VDC, E6C2-CWZ1X 2000P/R:

Q: How can I integrate the OMRON ROTARY ENCODER E6C2-CWZ1X into my existing automation system?

A: The encoder comes with a standard 2m pre-wired cable and NPN open collector output, allowing straightforward connection to most industrial controllers and automated systems. Follow the mounting and wiring instructions provided to ensure seamless integration.

Q: What are the main features that make this encoder suitable for industrial applications?

A: This model offers a high resolution of 2000 pulses per revolution, IP65 protection against dust and water (excluding the shaft), shock and vibration resistance, and a compact, durable design, making it ideal for harsh industrial environments.

Q: Where is the OMRON E6C2-CWZ1X commonly used?

A: The encoder is commonly used in textile machinery, robotics, conveyor systems, and other motion control applications requiring precise feedback and high durability.

Q: What benefits does the IP65 rating provide for this rotary encoder?

A: The IP65 rating ensures that the encoder's main body is protected from dust and water jets, making it suitable for tough and demanding industrial settings. It increases longevity and operational reliability.

Q: How quickly can I receive a quotation and arrange delivery for this encoder?

A: We offer instant quotations and rapid delivery to both domestic and international locations. Packaging is handled with care to ensure safe arrival, and orders are dispatched promptly to minimize downtime.
