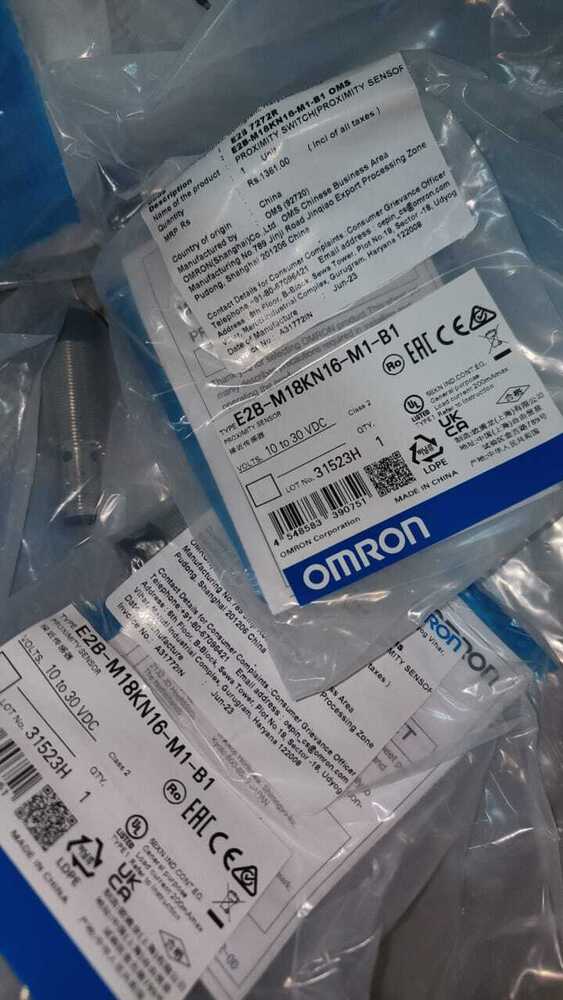

OMRON PROXIMITY SENSOR 10 TO 30VDC, E2B-M18KN16-M1-B1 2M,E2B-M18KN16-M1-B2

OMRON PROXIMITY SENSOR 10 TO 30VDC, E2B-M18KN16-M1-B1 2M,E2B-M18KN16-M1-B2 Specification

IP Rating
IP67

Features
Short-circuit protection, reverse polarity protection

Power Consumption
10mA (no load)

Response Time
1 ms

Sensitivity
Factory set

Application
Object Sensing, Positioning Automation

Operating Temperature
-25C to +70C

Measurement Range
16 mm sensing distance

Wireless
No

Cable Length
2 meters

Signal Type
Discrete

Interface
3-wire or 4-wire connection

Mounting Type
Flush Mount

Sensor Type
Inductive Proximity

Product Type
Proximity Sensor

Material
Metal Housing

Input
10 to 30VDC

Output
PNP or NPN (varies by model)

Function
Detection of Metallic Objects

Usage
Industrial Automation

Accuracy
High

Resolution
Precise object detection

Voltage
10 to 30 V DC

Weight
Approx. 90g

Output Type
NO (Normally Open)/NC (Normally Closed)

Switching Frequency
700 Hz

Short Circuit Protection
Yes

EMC Compliance
EN 60947-5-2

Repeat Accuracy
0.05 mm

Indicator
LED operation indicator

Shock Resistance
500 m/s2 (approx. 50G)

Max Load Current
200 mA

Housing Material
Nickel-plated brass

Polarity Protection
Yes

Ambient Humidity
35 to 95% RH

Connection Type
Cable

Barrel Diameter
M18

Model Number
E2B-M18KN16-M1-B1 2M / E2B-M18KN16-M1-B2

Vibration Resistance
10 to 55 Hz, 1.5 mm double amplitude

About OMRON PROXIMITY SENSOR 10 TO 30VDC, E2B-M18KN16-M1-B1 2M,E2B-M18KN16-M1-B2

Jump on the spotlight with the OMRON PROXIMITY SENSOR 10 TO 30VDC, model numbers E2B-M18KN16-M1-B1 2M / E2B-M18KN16-M1-B2. Featuring a scarce blend of wondrous accuracy and top-notch specifications, this sensor boasts a grandiose M18 barrel, nickel-plated brass housing, and a robust cable connection for industrial automation. Its high repeat accuracy, swift response time, and reliable short-circuit protection ensure precise metallic object detection even in harsh conditions. With factory-set sensitivity and IP67 rating, the OMRON sensor delivers consistent, secure detection for demanding environments.

Industrial Usage & Special Features

The OMRON PROXIMITY SENSOR is engineered for both general and specialized object sensing applications within industrial automation. With its high repeat accuracy, flush mount design, and rugged metal housing, it thrives in positioning automation and assembly lines. Its advanced features include short-circuit and reverse polarity protection, factory-set sensitivity, and a visible LED operation indicator. Precise detection of metallic objects allows seamless integration into diverse usage types, ensuring reliability and efficiency in automation control systems.

Certifications & Export Market Advantage

Holding EMC Compliance (EN 60947-5-2), the OMRON PROXIMITY SENSOR meets top export standards. Stock ready for immediate drop-off, it can be supplied at the lowest price to traders, suppliers, and wholesalers across major markets including China. Sample availability enhances buyer confidence, making procurement straightforward and accessible. With robust certifications and swift export logistics, this sensor stands out as a smart choice for both bulk and sample orders in automation and positioning solutions.

FAQ's of OMRON PROXIMITY SENSOR 10 TO 30VDC, E2B-M18KN16-M1-B1 2M,E2B-M18KN16-M1-B2:

Q: How does the OMRON PROXIMITY SENSOR enhance industrial automation processes?

A: The sensor provides high accuracy for detecting metallic objects, improving automated positioning and object sensing, which leads to greater productivity and reduced errors on industrial assembly lines.

Q: What is the recommended usage for this proximity sensor?

A: This sensor is ideal for object sensing and positioning automation tasks, especially in environments requiring precise detection of metallic items under challenging industrial conditions.

Q: Where can the OMRON PROXIMITY SENSOR be installed for optimal performance?

A: It is best installed in industrial settings such as manufacturing plants, assembly lines, and automation systems where flush mounting and robust performance are essential.

Q: What certifications does the sensor have for quality assurance?

A: The sensor complies with EMC standard EN 60947-5-2, ensuring reliable operation and adherence to international industrial automation standards.

Q: Is sample procurement available for this proximity sensor?

A: Yes, samples are available, allowing customers to evaluate the sensor's top-notch performance before bulk investment.

Q: What are the main export markets for this sensor model?

A: Major export markets include China and other regions where stock-ready supply and competitive pricing are prioritized for suppliers, traders, and wholesalers.
