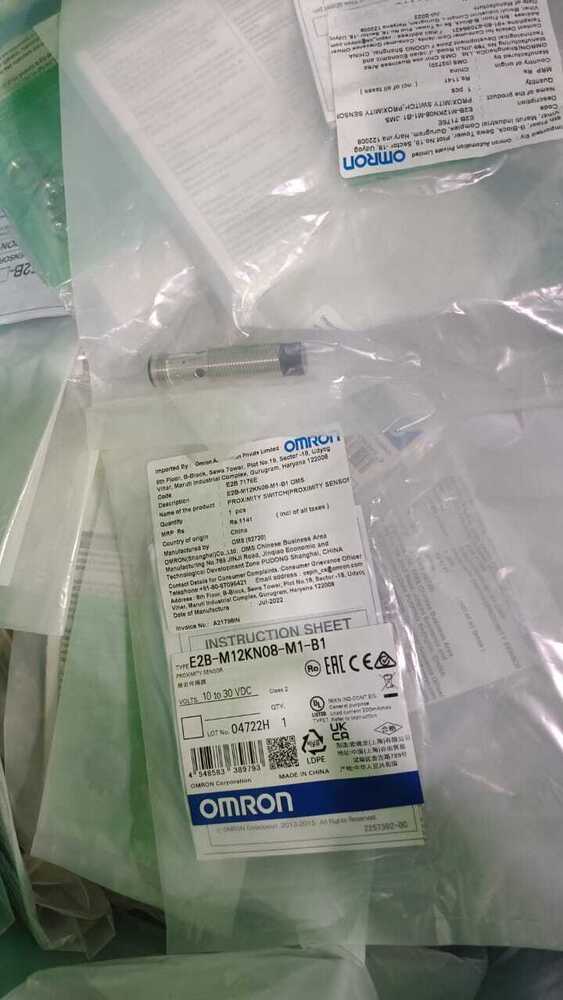

Omron , Proximity Sensor 10 To 30vdc, E2b-m12kn08-m1,e2b-m12kn05-m1-b1-b1

Omron , Proximity Sensor 10 To 30vdc, E2b-m12kn08-m1,e2b-m12kn05-m1-b1-b1 Specification

Features
LED Status Indicator, Short-circuit Protection, Reverse Polarity Protection

Cable Length
2m (Standard, varies by model) Meter (m)

Measurement Range
E2B-M12KN08-M1: 0 to 8mm; E2B-M12KN05-M1-B1-B1: 0 to 5mm

Interface
M12 Connector or Pre-wired (depends on model)

Sensor Type
Inductive

Sensitivity
Factory Set

IP Rating
IP67

Signal Type
Switching Output

Operating Temperature
-25°C to +70°C Celsius (oC)

Wireless
No

Application
Industrial Automation, Robotics, Conveyors, Packaging Machines

Mounting Type
Flush Mount (Shielded)

Product Type
Proximity Sensor

Material
Nickel-plated Brass Housing

Input
DC

Output
PNP or NPN (Refer to model)

Function
Object Detection (Non-contact)

Usage
Distance/Presence Sensing

Resolution
Millimeters (Exact resolution dependent on model)

Voltage
10 to 30 VDC Volt (v)

Weight
Approx. 30g (varies by model) Grams (g)

EMC Compliance
Conforms to international standards

Storage Temperature
-40C to +85C

Shock Resistance
500 m/s2, 3 times each in X, Y, Z directions

Sensing Surface Material
PBT Plastic

Switching Frequency
1000 Hz

Housing Length
E2B-M12KN08-M1: approx. 56 mm; E2B-M12KN05-M1-B1-B1: approx. 45 mm

Vibration Resistance
10 to 55 Hz, 1.5-mm double amplitude

Maximum Load Current
200 mA max.

Model Numbers
E2B-M12KN08-M1, E2B-M12KN05-M1-B1-B1

Control Output
Normally Open (NO) or Normally Closed (NC), model dependent

Connection Type
3-wire DC

Shape
Cylindrical

Protection Circuits
Surge Suppression, Load Short-circuit Protection, Output Reverse Polarity Protection

Diameter
12mm

Omron , Proximity Sensor 10 To 30vdc, E2b-m12kn08-m1,e2b-m12kn05-m1-b1-b1 Trade Information

Minimum Order Quantity
30 Number

Delivery Time
5-10 Days

Omron , Proximity Sensor 10 To 30vdc, E2b-m12kn08-m1,e2b-m12kn05-m1-b1-b1 About

Experience the rare excellence of OMRONs elite PROXIMITY SENSOR 10 TO 30VDC modelsE2B-M12KN08-M1 and E2B-M12KN05-M1-B1-B1crafted for top-notch reliability in advanced industrial settings. With cylindrical shape, 12mm diameter, nickel-plated brass housing, and factory-set high accuracy, these sensors deliver transcendent object detection performance. Enjoy the finest switching frequencies (1000 Hz), robust EMC compliance, and durable IP67 protection, all offered as an exceptional bargain for automation, packaging, robotics, and conveyor systems. Elevate operations with OMRONs uncompromising quality and state-of-the-art features.

Versatile Industrial Application & Commercial Utility

These OMRON Proximity Sensors are widely used throughout industrial automation, including robotics, conveyor systems, and packaging machinery. Their non-contact sensing and precise detection are invaluable for object presence and distance measurements in assembly lines and production plants. The elite sensor quality ensures suitability for general and specific usesfrom material handling to safety systems. Their robust build and reliability make them a preferred choice for suppliers, traders, and wholesalers seeking adaptable sensing solutions worldwide.

Export Markets, Sample Availability, and Logistics Policy

These OMRON sensors are delivered to a global market, with export operations spanning Asia, Europe, the Americas, and beyond. For a modest outlay, samples are available to clients seeking firsthand evaluation. Clear sample policies and efficient logistics ensure swift delivery, whether domestically or internationally. Experienced suppliers provide full support and guidance, making procurement and shipment seamless for both short-term and long-term business needs.

FAQs of OMRON , PROXIMITY SENSOR 10 TO 30VDC, E2B-M12KN08-M1,E2B-M12KN05-M1-B1-B1:

Q: How does the OMRON proximity sensor benefit industrial automation?

A: The OMRON proximity sensor excels in precise, non-contact detection for distance and object presence, enhancing efficiency and safety in automated environments such as robotics, packaging, and conveyors.

Q: What specific industries find the OMRON proximity sensor most useful?

A: Industries such as manufacturing, logistics, robotics, packaging, and assembly lines benefit greatly from the sensors robust, reliable performance for object detection and automation control.

Q: When should you choose these OMRON models for your application?

A: Choose these models when you require elite accuracy, fast response time (1 ms), and durable construction with IP67 protection for harsh industrial environments, particularly where high switching frequencies are essential.

Q: Where can these proximity sensors be installed?

A: These sensors can be flush-mounted in equipment such as conveyors, robotic arms, or assembly machinery, thanks to their compact cylindrical shape and versatile mounting options.

Q: What is the process to request a sample, and how is it delivered?

A: You can request a sample through authorized suppliers or traders. Samples are delivered efficiently, with a straightforward outlay, through established logistic channels to your specified address.

Q: How does the protection circuitry enhance sensor reliability?

A: Advanced circuits including surge suppression, short-circuit protection, and reverse polarity protection ensure the sensors remain reliable even under demanding industrial conditions.
