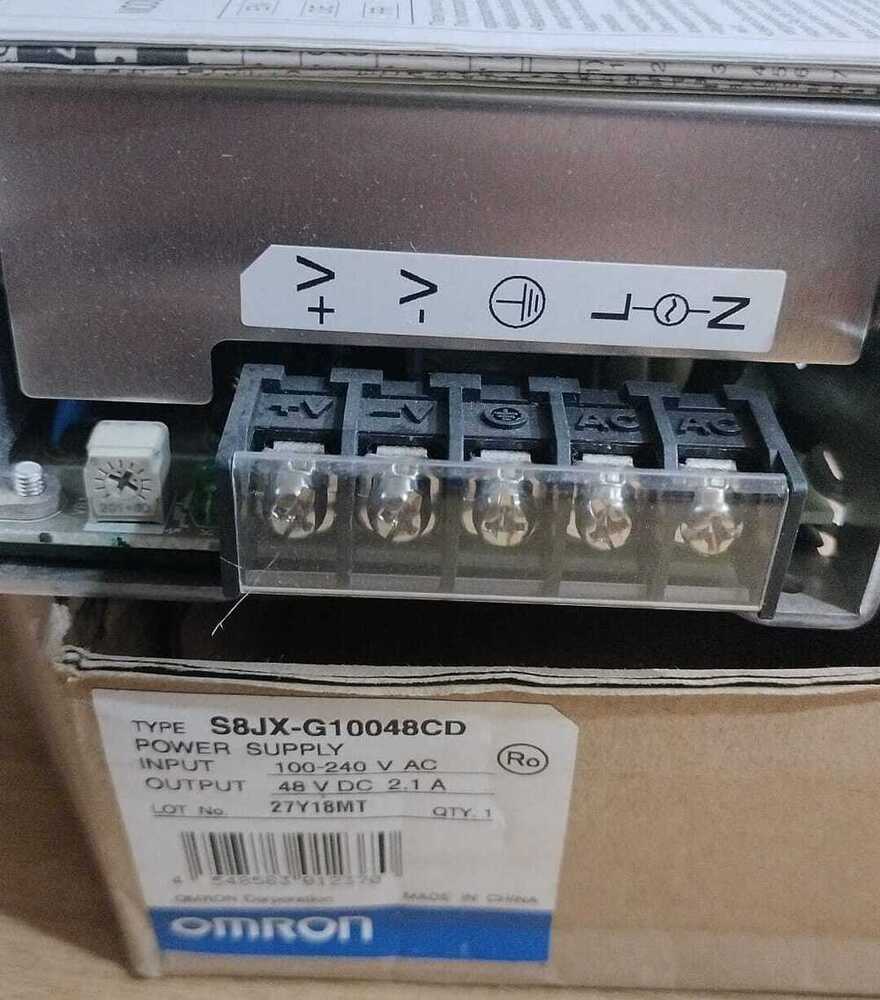

OMRON POWER SUPPLY, S8JX-G10048CD,S8JX-P60048CD

OMRON POWER SUPPLY, S8JX-G10048CD,S8JX-P60048CD Specification

Phase
Single Phase

Cooling Method
Natural Air Cooling

Application
Industrial Automation, Control Panels, Machinery

Power Supply
AC-DC Switching

Output Current
2.1A (S8JX-G10048CD), 12.5A (S8JX-P60048CD)

Working Temperature
-10C to +60C

Rated Power
100W / 600W

Current Range
2.1A 12.5A

Connector Type
Screw Terminal

Features
High Reliability, Compact Design, Easy DIN Rail Mounting

Rated Current
2.1A / 12.5A

Noise Level
Low

Operating Temperature
-10C to +60C

Power Factor
Greater than 0.9

Output Type
Single

Product Type
OMRON Power Supply

Output Power
100W (S8JX-G10048CD), 600W (S8JX-P60048CD)

Output Frequency
50/60Hz

Input Voltage
85-264V AC, 110-370V DC

Voltage Protection
Overvoltage, Overcurrent, Short Circuit Protection

Efficiency
Greater than 80%

Material
Metal Case

Line Regulation
Less than 0.5% (typical)

Storage Temperature
-25C to +85C

Weight
Approx. 0.6kg (S8JX-G10048CD), 2.5kg (S8JX-P60048CD)

Output Voltage
48V DC

Mounting Type
Panel or DIN Rail Mount

Safety Standards
EN60950, UL508

Humidity (Operating)
20% to 90% RH (non-condensing)

Isolation Voltage
3,000VAC (input to output)

Protection Class
IP20

Ripple & Noise
Less than 120mVp-p

Cooling
Free Air Convection

Hold-up Time
More than 20ms at rated load

About OMRON POWER SUPPLY, S8JX-G10048CD,S8JX-P60048CD

Experience prodigious reliability and breathtaking performance with the OMRON POWER SUPPLY, S8JX-G10048CD and S8JX-P60048CD, now available for a limited time. These rare and affordable power solutions deliver a premier output of 48V DC with ripple & noise less than 120mVp-p, ideal for demanding industrial automation and machinery applications. Engineered with overvoltage, overcurrent, and short circuit protection, these units offer efficiency above 80% and comply with stringent safety standards. Their compact metal cases and versatile mounting options make integration effortless, ensuring robust performance in varying environmental conditions.

Versatile Applications & Outstanding Benefits

The OMRON S8JX series excels in industrial automation, control panels, and advanced machinery applications. Notable features include high reliability, low noise, natural air convection cooling, and compact design, making them advantageous for space-constrained installations. The easy DIN rail or panel mounting streamlines setup. With their superb safety standards and robust output regulation, users gain peace of mind, operational durability, and efficiency for diverse industrial environments.

Prompt Delivery & Comprehensive Global Reach

Transportation is efficient with stock ready for quick dispatch, ensuring your operations stay uninterrupted. We offer prompt delivery times for all bulk and retail orders, with representative samples available upon request. Our main export markets encompass Asia, the Middle East, and Europe, where we maintain excellent logistics networks to support timely offer fulfillment and minimize downtime for our clients.

FAQs of OMRON POWER SUPPLY, S8JX-G10048CD,S8JX-P60048CD:

Q: How does the OMRON S8JX-G10048CD and S8JX-P60048CD benefit industrial automation systems?

A: These power supplies deliver stable 48V DC output with superior efficiency and minimal noise, enhancing the reliability and performance of industrial automation equipment and control panels.

Q: What is the process for mounting these power supplies in machinery or panels?

A: The units support both panel and DIN rail mounting, enabling straightforward installation and integration into existing machinery or electrical panels, thanks to their compact, metal-cased design.

Q: When should I consider replacing my existing power supply with an OMRON S8JX series model?

A: Consider replacement when you need higher efficiency, advanced protection features, or improved line regulation, particularly in environments where reliability and operational safety are paramount.

Q: Where can these power supplies be used effectively?

A: OMRON S8JX-G10048CD and S8JX-P60048CD are suited for diverse applications, including industrial automation, process control, and machinery, especially where compactness, robust protection, and compliance with global standards are required.

Q: What are the main advantages of using these power supplies as opposed to standard units?

A: Advantages include their rare combination of high reliability, energy efficiency above 80%, comprehensive protection (overvoltage, overcurrent, short circuit), and easy integration with both DIN rail and panel mounting options.
