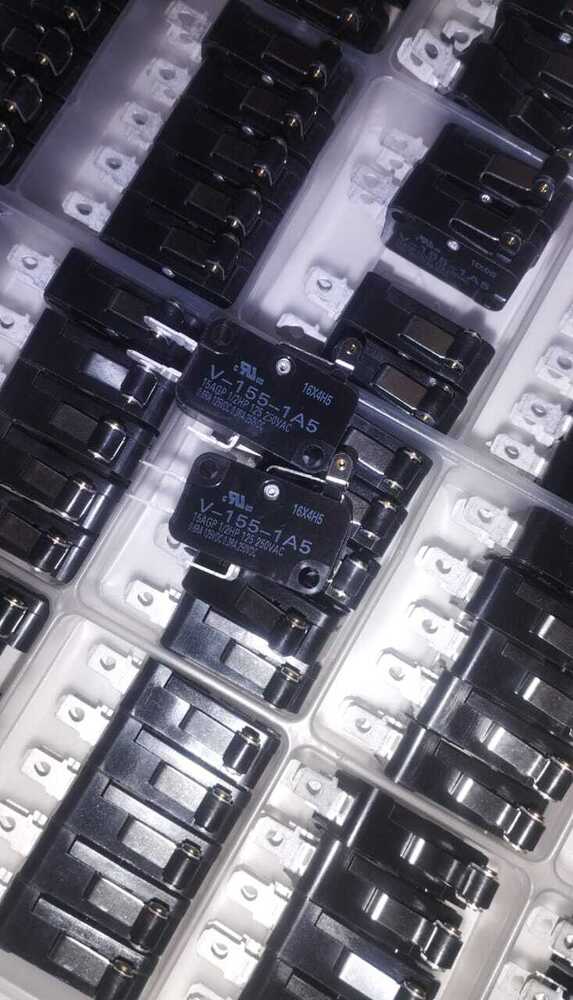

OMRON LIMIT SWITCH, V-155-1A5

OMRON LIMIT SWITCH, V-155-1A5 Specification

Rated Voltage
250V AC

Max. Current
15A

Protection Level
IP40

Circuit Type
SPST (Single Pole Single Throw)

Temperature Range
-25C to +80C

Automation Grade
Manual

Number of Module
1

Mechanical Life
1,000,000 operations min.

Finish Type
Matte

Response Time
1ms max.

Product Type
Micro Limit Switch

Material
Phenolic Resin (Case)

Insulation Resistance
100 M min. (at 500 VDC)

Contact Resistance
30 m max. (initial)

Max. Voltage
250V AC

Operating Temperature
-25C to +80C

Stoke
0.5 mm (Movement Differential)

Size
Approx. 28 mm x 16 mm x 10 mm

Color
Black

Weight
Approx. 7.3g

Mounting Type
Panel Mount, Screw Mount

Current Rating
15A @ 250VAC

No Of Poles
1 Pole

Release Force
20 gf min.

Terminal Type
Quick Connect

Electrical Life
50,000 operations min.

Operating Force
150 gf max.

Actuator Type
Hinge Lever

Dielectric Strength
1,000 VAC, 50/60Hz for 1 min between terminals of same polarity

Contact Form
SPDT

Rated Load
15A at 250VAC / 0.6A at 125VDC

Pretravel
8.4 mm max.

About OMRON LIMIT SWITCH, V-155-1A5

Discover the affordable OMRON LIMIT SWITCH V-155-1A5-crafted for those who require remarkable quality at the lowest price. This virtuoso device features an SPDT contact form, pristine phenolic resin case, and a rated load of 15A at 250VAC, ensuring reliability in tough environments. With quick connect terminals, 1,000,000 mechanical operations minimum, and a protection level of IP40, it stands out among its peers. Secure this offer now from our supplier, trader, or wholesaler in China for a truly dependable automation component.

Versatile Applications and User Guidance

The OMRON LIMIT SWITCH V-155-1A5 excels in commercial settings, from factory automation to conveyor belt systems. Its precise hinge lever actuator and robust construction ensure consistent performance in plant applications. To operate, mount the switch securely using its panel or screw mount option and connect to your device via quick-connect terminals. Its pristine design supports reliable feedback in safety circuits, making it ideal for critical industrial processes and equipment position detection.

Sample Accessibility, Dispatch, and Market Coverage

Premium sample units of the OMRON LIMIT SWITCH V-155-1A5 are available upon request, ensuring you can gauge its functionality before bulk orders. We offer quick dispatch with competitive asking prices, delivering efficiently to the main domestic market. Our streamlined logistics ensure prompt processing, letting you experience the remarkable quality without delay. Take advantage of this pristine product with premium service and rapid delivery-your automation needs are just an order away.

FAQ's of OMRON LIMIT SWITCH, V-155-1A5:

Q: How do I install the OMRON LIMIT SWITCH V-155-1A5?

A: The switch can be installed using either a panel mount or screw mount method. Simply secure it in the desired location and use the quick connect terminals for efficient wiring.

Q: What are the commercial applications of this limit switch?

A: This limit switch is commonly used in plant automation, conveyor systems, and manual automation equipment, providing reliable position detection and safety feedback.

Q: When can I expect delivery after placing an order?

A: With our quick dispatch policy, products are typically sent out promptly, ensuring fast delivery within the main domestic market.

Q: Where is the OMRON V-155-1A5 primarily supplied from?

A: This model is sourced directly from reputable suppliers, traders, and wholesalers based in China, ensuring authenticity and competitive pricing.

Q: What makes the OMRON V-155-1A5 a remarkable choice for industrial use?

A: It combines a high mechanical life of 1,000,000 operations, excellent insulation resistance, and precise actuation, making it exceptionally reliable for demanding industrial applications.

Q: Is a sample of the product available before making a bulk purchase?

A: Yes, premium samples are available upon request, letting users evaluate performance and compatibility with their intended application before committing to larger orders.
