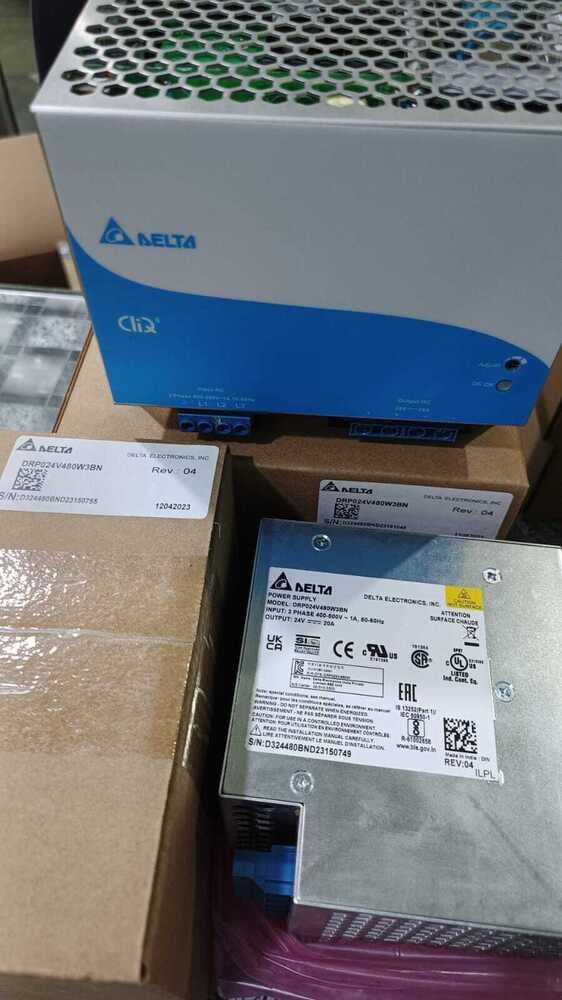

DELTA SMPS, DRP024V480W3BN, 20A, 3PH, 24VDC

DELTA SMPS, DRP024V480W3BN, 20A, 3PH, 24VDC Specification

Working Temperature
-25C to +70C

Power Supply
Switch Mode

Output Type
Single Output

Connector Type
Screw Terminal

Rated Power
480W

Output Current
20A

Rated Current
20A

Phase
3 Phase

Features
Compact size, high efficiency, wide input range, LED indicator for power on

Operating Temperature
-25C to +70C

Cooling Method
Convection

Power Factor
>0.9

Application
Industrial Automation, Machine Building, Process Control

Current Range
0-20A

Noise Level
< 40dB

Product Type
DIN Rail Power Supply

Output Power
480W

Output Frequency
50/60Hz

Input Voltage
320-575VAC

Voltage Protection
Overvoltage, Overcurrent, Short Circuit, Over Temperature Protection

Efficiency
94.5%

Material
Metal

Line Regulation
< 0.5%

Storage Temperature
-25C to +85C

Weight
1.6 kg

Dimensions (WxHxD)
70 x 128 x 130 mm

Humidity
5 - 95% RH (non-condensing)

Adjustable Output Voltage Range
24-28VDC

Mounting Type
DIN Rail (TS35/7.5 or 15)

Hold Up Time
> 20 ms (at full load)

Insulation Resistance
> 100 M at 500VDC

Output Voltage
24VDC

Alarm Signal Output
Relay contact output for DC OK

Ripple & Noise
< 100 mVp-p

DELTA SMPS, DRP024V480W3BN, 20A, 3PH, 24VDC About

Experience the extraordinary power and reliability of the DELTA SMPS DRP024V480W3BN - a true masterpiece in industrial power supply solutions. Get it now at an exclusive markdown; seize the best deal on this high-efficiency 480W, 3-phase, 24VDC power supply. Engineered for industrial automation, machine building, and process control, its compact DIN rail design ensures seamless installation. With outstanding protections, adjustable output voltage, relay output for DC OK, and 94.5% efficiency, this device offers robust, silent operation. Don't miss the opportunity - add this exclusive product to your setup today!

Exceptional Features for Critical Applications

The DELTA SMPS DRP024V480W3BN, with 20A current and 3-phase 24VDC output, is engineered for precision in industrial automation, machine building, and process control. Its robust metal housing, high efficiency, convection cooling, and compact design make it suitable for confined spaces. Advanced features include relay output for DC OK, multiple protections, adjustable voltage, and LED power indicator, offering extraordinary dependability and performance, even in demanding environments.

Convenient Payment and Efficient Delivery Logistics

Payment for the DELTA SMPS DRP024V480W3BN is flexible, supporting methods such as advance payment, bank transfer, or authorized exchange arrangements. Once your order is confirmed, delivery is handled swiftly and securely through reliable logistics partners, ensuring the product is delivered promptly to your location. Exports are focused on key global markets such as Asia, Europe, and North America, meeting the diverse needs of industrial suppliers and wholesalers worldwide.

FAQ's of DELTA SMPS, DRP024V480W3BN, 20A, 3PH, 24VDC:

Q: How can I utilize the DELTA SMPS DRP024V480W3BN in industrial automation?

A: The DELTA SMPS DRP024V480W3BN is designed for seamless integration into industrial automation systems, providing stable 24VDC output for actuators, controllers, sensors, and PLCs. Its compact DIN rail mounting allows for efficient installation in control cabinets.

Q: What unique features does this power supply offer for machine building?

A: This model features a compact size, high efficiency of 94.5%, wide input voltage range, and advanced protections including overvoltage, overcurrent, short circuit, and overtemperature-making it ideal for reliable operation in machine-building applications.

Q: Where will my product be delivered and how is the logistics managed?

A: Upon order confirmation, DELTA SMPS units are delivered to your specified address using trusted logistics partners, ensuring timely and secure delivery. Export is available to major markets across Asia, Europe, and North America.

Q: What is the payment process for this product?

A: Payments can be made through advance payments, bank transfers, or approved exchange transactions, ensuring a secure and efficient purchasing process.

Q: How does the alarm signal output enhance operational reliability?

A: The relay contact output for DC OK status enables monitoring of the power supply's health, allowing users to respond swiftly to faults and maintain continuous operation in critical environments.
