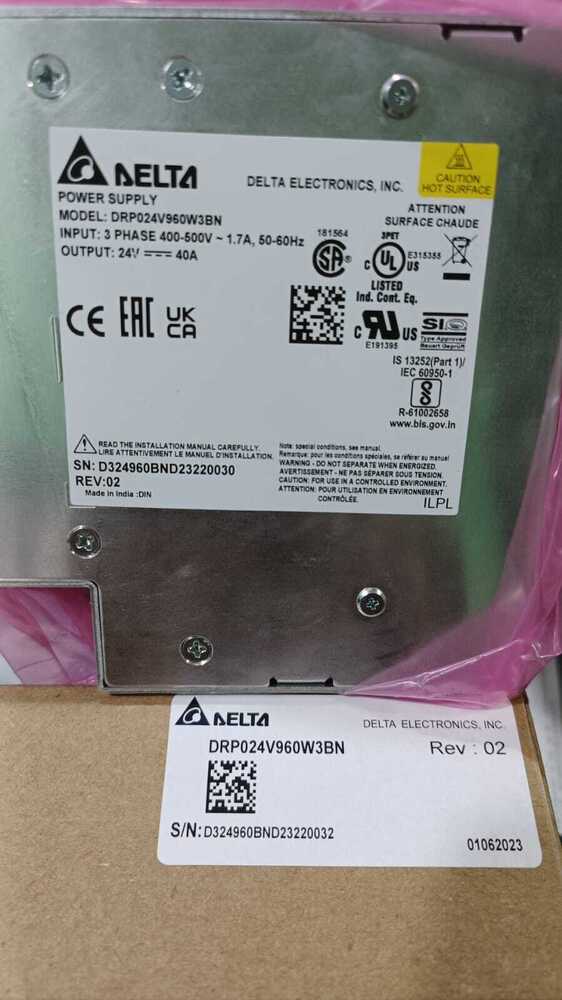

DELTA SMPS, DRP024V960W3BN, 40A, 3PH, 24VDC

DELTA SMPS, DRP024V960W3BN, 40A, 3PH, 24VDC Specification

Phase
3 Phase

Rated Power
960W

Operating Temperature
-25C to +70C

Rated Current
40A

Output Current
40A

Cooling Method
Built-in Fan (temperature controlled)

Power Factor
>0.94

Noise Level
<50 dB

Output Type
Single

Features
Wide Operating Temperature, High Efficiency, Compact Size, Full Protection, LED Indicator

Connector Type
Screw Terminal

Power Supply
AC-DC

Application
Industrial Automation, Process Control, Machinery

Current Range
0-40A

Working Temperature
-25C to +70C

Product Type
DIN Rail Power Supply

Output Power
960W

Output Frequency
50/60Hz

Input Voltage
3-phase 340-550VAC (2-wire + PE); 450-780VDC

Voltage Protection
Overvoltage, Overcurrent, Short Circuit, Over Temperature Protection

Efficiency
94.5% (Typ)

Material
Metal Case

Line Regulation
< 0.5%

Storage Temperature
-25C to +85C

Weight
2.7 kg

Maximum Output Voltage
28VDC

LED Indicator
Green for DC OK

Mounting Type
DIN Rail (EN 60715)

Output Voltage Adjustment Range
24-28VDC

Dimensions (W x H x D)
120 x 125 x 150 mm

Isolation Voltage
4300 VAC input to output

Ripple & Noise
<100mVp-p

DELTA SMPS, DRP024V960W3BN, 40A, 3PH, 24VDC About

Benefit from a Special Rate and impressive Savings when you opt for the renowned DELTA SMPS, DRP024V960W3BN, 40A, 3PH, 24VDC. This unassailable power supply delivers a sensational 960W output in a compact, robust metal case. With an adjustable voltage range of 24-28VDC, 40A current capacity, and advanced protection against overvoltage, overcurrent, short circuit, and over temperature, this model is engineered for demanding industrial automation. Enjoy high efficiency at 94.5%, an LED indicator for quick DC OK status, and seamless DIN rail mounting. Secure your advance purchase now for a dependable, cutting-edge solution from a leading China supplier.

Exceptional Performance and Versatility

The DELTA SMPS, DRP024V960W3BN, 40A, 3PH, 24VDC is tailored for industrial automation, process control, and demanding machinery applications. Notable features include a high-efficiency built-in fan, wide operating temperature range (-25C to +70C), and a low noise level (<50 dB). Housed in a durable metal case, this power supply ensures reliable operation while protecting against all critical electrical faults, making it a trusted choice for professional environments.

Reliable Supply, Prompt Arrival, and Smart Payment

Available at an exclusive sale price, the DELTA SMPS DRP024V960W3BN is supplied swiftly across major domestic markets. Flexible payment terms and rapid delivery timelines contribute to a seamless acquisition process for traders, wholesalers, and end-users. Secure your order today to guarantee prompt arrival and optimal integration in your operational set-up.

FAQ's of DELTA SMPS, DRP024V960W3BN, 40A, 3PH, 24VDC:

Q: How does the DELTA SMPS DRP024V960W3BN contribute to industrial automation?

A: With a robust 960W output and advanced protection features, this SMPS ensures stable power delivery, enhancing operational reliability in automation, machinery, and process control environments.

Q: What safety features are incorporated in this power supply model?

A: The SMPS provides comprehensive protection, including overvoltage, overcurrent, short circuit, and over temperature safeguards, ensuring unassailable dependability for critical equipment.

Q: Where can this power supply be installed, and what mounting options are provided?

A: It is designed for industrial environments and mounts easily on DIN rails (EN 60715 standard), ensuring compatibility with standard electrical panels.

Q: What are the material and cooling features of the DRP024V960W3BN?

A: This model is built with a rugged metal case and includes a temperature-controlled, built-in fan for efficient cooling, allowing for continuous operation under demanding conditions.

Q: When can customers expect delivery after making an advance purchase?

A: DELTA SMPS units are typically supplied with prompt delivery times following confirmation of advance purchase, ensuring timely arrival to meet project schedules.
