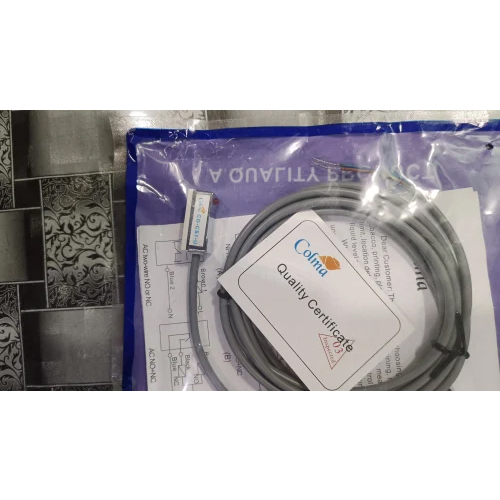

Ckd 3 Wire Reed Switch

Ckd 3 Wire Reed Switch Specification

Number of Module
Single

Finish Type
Matte

Automation Grade
Automatic

Temperature Range
-10C to 70C

Circuit Type
3 Wire

Rated Voltage
24V DC

Max. Current
100 mA

Mechanical Life
Over 10 million operations

Protection Level
High

Response Time
1 ms

Product Type
Reed switch

Material
PVC

Insulation Resistance
High

Contact Resistance
200m

Max. Voltage
100V DC

Operating Temperature
-10C to 70C

Stoke
10 mm to 25 mm

Size
Compact

Color
Grey

Weight
Approx 15g

Mounting Type
Panel Mount

Current Rating
100 mA

No Of Poles
1

Switch Type
Normally Open (NO)

Vibration Resistance
10-55Hz, 1.5mm amplitude

Lead Wire Length
2 meters

Voltage Withstand
1500V AC/min

Ingress Protection
IP67

Application
Cylinder Position Sensing, Automation Equipment

Wire Type
PVC insulated wires

Shock Resistance
30G

Ckd 3 Wire Reed Switch Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
5-10 Days

Main Domestic Market
All India

About Ckd 3 Wire Reed Switch

Utilise this exclusive offer and reserve the CKD 3 Wire Reed Switch-an exemplar of heroic reliability and laureate engineering. Soaring above conventional benchmarks, this compact, grey switch with matte finish presents industry-leading ingress protection (IP67) and remarkable insulation resistance. Engineered from robust PVC, it safely withstands up to 1500V AC/min, endures heroic shock (30G), and delivers over 10 million mechanical cycles. Featuring 2-meter PVC insulated leads, it operates flawlessly between -10C and 70C. Perfect for automation and cylinder position sensing, this switch elevates your systems.

Unmatched Features and Versatile Applications

The CKD 3 Wire Reed Switch comes equipped with a SOARING 2-meter PVC lead wire, offering heroic resilience through IP67 ingress protection and a high insulation rating. It is meticulously crafted for automatic systems, making it ideal for cylinder position sensing in automation equipment. Its utilization type caters to environments demanding reliability, and its compact size coupled with normally open configuration renders it suitable for a wide range of industrial contexts.

Shipping, Packaging, and Supply Excellence

Experience swift arrival and secure exchange with the CKD 3 Wire Reed Switch, shipped from reliable FOB Indian ports. Each unit is meticulously packaged to uphold the product's laureate condition throughout transit. Our supply rate is tailored to meet dynamic market needs, ensuring consistent availability and rapid restocking. Whether handling single orders or bulk consignments, our streamlined process guarantees steadfast quality from dispatch to final delivery.

FAQ's of Ckd 3 Wire Reed Switch:

Q: How is the CKD 3 Wire Reed Switch installed for cylinder position sensing?

A: The CKD 3 Wire Reed Switch is designed for easy panel mount installation. Simply connect the 2-meter PVC insulated lead wire to your automation equipment at the specified sensing position on the cylinder. Ensure correct alignment to optimize detection performance.

Q: What makes this switch exclusive in terms of protection and durability?

A: This switch boasts IP67 ingress protection, high insulation resistance, and a shock rating of 30G, making it highly suitable for challenging environments. Its laureate status is further reinforced by its ability to perform over 10 million mechanical operations.

Q: Where can the CKD 3 Wire Reed Switch be effectively used?

A: It is ideally utilised in automation equipment for cylinder position sensing, but also fits various industrial systems demanding precise, reliable switch action under demanding conditions.

Q: What is the process for exchanging or returning the product if it arrives damaged?

A: If the switch arrives damaged or defective, please contact your supplier immediately for an exchange process following their return guidelines. Proper packaging and swift coordination ensure a smooth replacement.

Q: Which benefits distinguish this reed switch from competitors?

A: Heroic vibration and shock resistance, compact size, exclusive normally open configuration, and remarkably high mechanical life distinguish this reed switch. Its reliable performance in a broad temperature range ensures soaring operational stability.

Q: What is the rated voltage and maximum current supported by this switch?

A: The CKD 3 Wire Reed Switch supports a rated voltage of 24V DC, a maximum applied voltage of 100V DC, and safely handles up to 100 mA current, making it suitable for a variety of automation circuit designs.
