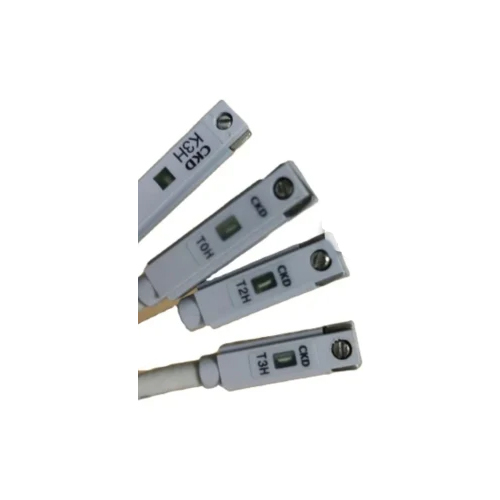

CS1-U Reed Switch

CS1-U Reed Switch Specification

Automation Grade
Automatic

Number of Module
1

Response Time
1ms

Mechanical Life
10 million operations

Max. Current
100mA

Circuit Type
SPST (Normally Open)

Rated Voltage
220V

Finish Type
Matte

Temperature Range
-10C to 70C

Protection Level
High

Product Type
Reed switch

Material
PVC

Insulation Resistance
High

Contact Resistance
150m

Max. Voltage
220V AC/DC

Operating Temperature
-10C to 70C

Stoke
10mm

Size
36 x 10 x 6 mm

Color
Grey

Weight
8g

Mounting Type
Screw Mount

Current Rating
100mA

No Of Poles
1

Humidity
95% RH

Lead Wire
PVC insulated, 2 core

Vibration Resistance
10-55Hz, amplitude 1.5mm

Wire Length
2m

Storage Temperature
-20C to 80C

Switch Type
Magnetic Reed Switch

Shock Resistance
30G min

Application
Used for non-contact sensing in automation machinery, elevator, door sensors

Operating Distance
8mm-15mm

CS1-U Reed Switch Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
5-10 Days

Main Domestic Market
All India

About CS1-U Reed Switch

Discover the featured CS1-U Magnetic Reed Switch-a sublime choice for automation and industrial control. With a prodigious operating distance of 8-15mm and remarkable response time (1ms), this limited stock sensor ensures reliable non-contact sensing for elevators, doors, and machinery. Designed with high insulation, robust shock and vibration resistance, and a durable PVC matte finish, it guarantees a prolonged mechanical life of up to 10 million operations. Rated for 220V and 100mA, this is your last chance to secure a top-tier automation solution trusted by suppliers, traders, and wholesalers across India.

Versatile Applications & Competitive Advantages

The CS1-U Reed Switch excels in various automation settings, including machinery, elevator systems, and door sensors, ensuring precise, non-contact control. Its outstanding shock and vibration resistance, high insulation, and swift response provide a clear advantage for demanding environments. With a long lifecycle and robust construction, this switch stands out for its reliability, making it a prime choice for businesses seeking efficiency and durability in automation solutions.

Reliable Supply & Efficient Distribution

Our supply capabilities ensure consistent availability of the CS1-U Reed Switch, meeting demands in the main domestic market across India. Samples are readily available for evaluation before purchase. With careful packing, prompt transportation, and streamlined dispatch processes, we guarantee that every unit arrives in pristine condition, ready for immediate integration. Trust our efficient logistics for seamless delivery to your location.

FAQ's of CS1-U Reed Switch:

Q: How does the CS1-U Reed Switch function in automation machinery?

A: The CS1-U Reed Switch operates using a magnetic field to act as a non-contact sensor. When a magnet moves close (within 8-15mm), the circuit closes, enabling automation machinery or door systems to operate securely and efficiently.

Q: What are the main benefits of choosing this magnetic reed switch?

A: The CS1-U offers superior vibration and shock resistance, a high insulation protection level, rapid response, and an extended lifespan of up to 10 million operations-making it ideal for heavy-duty automation and control.

Q: Where can the CS1-U Reed Switch be installed?

A: It is suitable for any application requiring non-contact sensing, such as in elevators, door security systems, industrial automation units, and machinery. Its screw mount design allows for easy installation in confined or variable settings.

Q: When can I expect delivery of the CS1-U Reed Switch in India?

A: With strong supply channels and efficient dispatch systems, standard delivery times apply across India. For urgent requirements or large orders, please contact our team for tailored shipping options.

Q: What is the recommended process for integrating the CS1-U Reed Switch?

A: Simply mount the switch using the screw mount, connect the PVC-insulated, 2-core wires to the system, and ensure proper alignment with the actuator magnet to guarantee optimal performance in your automation setup.
