AUTONICS, ROTARY ENCODER, E30S4-200-3-N-24

AUTONICS, ROTARY ENCODER, E30S4-200-3-N-24 Specification

Voltage
12-24VDC ±5%

Rated Voltage
12-24VDC ±5%

Features
Rotary Encoder

Product Type
AUTONICS ROTARY ENCODER

Power
12-24VDC ±5%

Housing Material
Aluminum

Allowable Shaft Load
Radial 10N, Axial 5N

Operating Temperature
-10C to +70C (no freezing)

Input Voltage
12-24VDC 5%

Counting Direction
Forward and Reverse

Current Consumption
Max 40 mA

Applicable Standard
CE, RoHS

Shaft Type
Solid shaft

Cable Connection
2 meters, axial cable

Shaft Size
4 mm diameter

Resolution
200 pulses per revolution (PPR)

Protection Structure
IP50 (IEC Standard)

Model
E30S4-200-3-N-24

Body Diameter
30 mm

Output Type
NPN Open Collector

Storage Temperature
-25C to +85C

Output Phase
A, B, Z (3-phase output)

Max Response Frequency
30 kHz

AUTONICS, ROTARY ENCODER, E30S4-200-3-N-24 About

Unlock blue-ribbon precision and dazzling performance with the AUTONICS Rotary Encoder E30S4-200-3-N-24. Now on clearance, pick yours and experience gorgeous reliability for dynamic automation. Featuring a solid shaft (4 mm diameter), 200 PPR resolution, and triple-phase output (A, B, Z), it boasts a 30 kHz max response. Axial 2-meter cable ensures versatility, while robust aluminum housing and IP50 protection maintain durability. Designed for 12-24VDC 5%% input, this encoder is rated CE/RoHS compliant and ideal for forward/reverse counting. Supplier sourced directly from Korea North.

Other Features, Commercial Uses, Usage & Applications

Packed with commercial-grade features, the AUTONICS E30S4-200-3-N-24 rotary encoder is engineered for industrial automation, robotics, and conveyor control. Its solid 4 mm shaft and 200 PPR permit exact feedback for speed and position monitoring. The rotary encoders triple-phase output (A, B, Z) supports precise direction and reference pulse operations, facilitating use in manufacturing, packaging, and machinery calibration. Rugged construction and IP50 protection provide long-lasting reliability in dynamic working environments.

Payment Terms, Packaging Details, Supply Ability

Enjoy swift arrival with express shipping and secure packaging for your AUTONICS rotary encoder order. Flexible payment terms enhance convenience for traders and wholesalers. Each unit is carefully boxed for safe transit, maintaining product integrity upon delivery. Generous supply ability ensures bulk orders are available for projects of any scale without delay, so pick yours with confidence knowing your needs for commercial automation and reliable supply are fully supported.

FAQs of AUTONICS, ROTARY ENCODER, E30S4-200-3-N-24:

Q: How do I install the AUTONICS E30S4-200-3-N-24 rotary encoder?

A: Begin by securely mounting the encoders solid shaft to the desired axle using compatible couplings, ensuring the 4 mm diameter fits snugly. Connect the 2-meter axial cable to your systems interface according to the NPN open collector wiring guidelines.

Q: What are the commercial benefits of using this rotary encoder in automation projects?

A: The E30S4-200-3-N-24 delivers high-precision feedback, facilitating accurate speed, direction, and positioning control. Its triple-phase output makes it ideal for machinery calibration, conveyor systems, and industrial robotics, optimizing operational efficiency.

Q: When does express shipping typically deliver the encoder after purchase?

A: Express shipping usually ensures encoder arrival within a few working days, depending on your location and seller processing time. Secure shipping keeps your order safe from damage during transit.

Q: Where is this AUTONICS rotary encoder manufactured?

A: This model is sourced from Korea North, ensuring quality standards and reliable manufacturing practices aligned with global requirements.

Q: What is the process for ordering in bulk as a wholesaler or trader?

A: Contact the supplier to discuss requirements and payment terms. Bulk supplies are available with swift dispatch, and each unit is securely packaged for safe shipment.

Q: How can the encoders triple-phase output (A, B, Z) be utilized?

A: The triple-phase output enables precise position encoding, reference pulse generation, and forward/reverse direction detection in automated systems, enhancing operational accuracy.

Price 6597 INR/ Number

Minimum Order Quantity
1 Number

Get Latest Price

Request To Call Back

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

More Products in Rotary Encoder Category

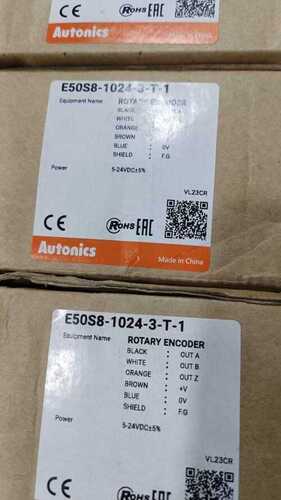

AUTONICS PROXIMITY SENSOR, E50S8-1024-3-T-1
