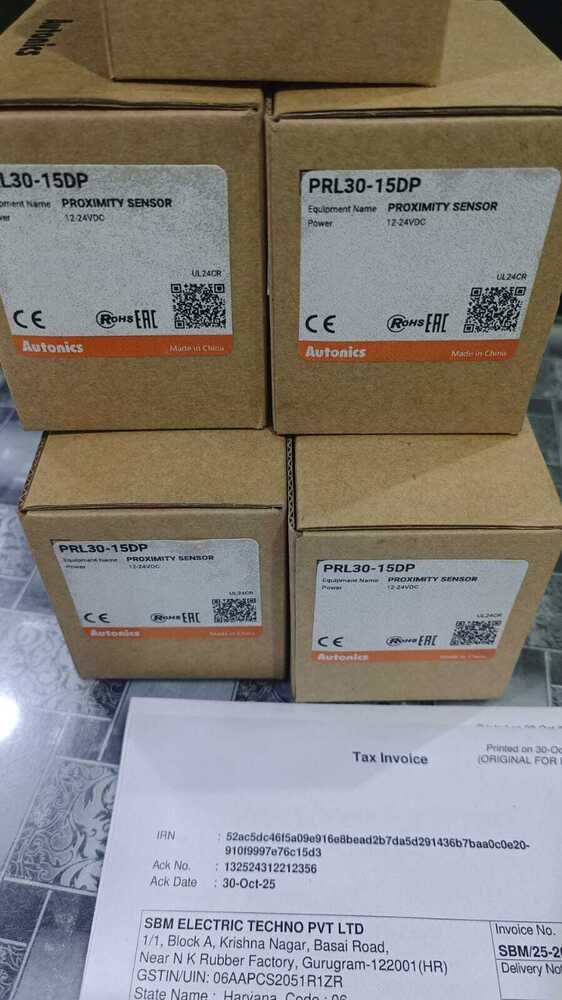

AUTONICS PROXIMITY SENSOR 12-24VDC, PRL30-15DP

AUTONICS PROXIMITY SENSOR 12-24VDC, PRL30-15DP Specification

Response Time
2ms

Application
Automation machinery, Conveyor systems, Robotics

Cable Length
2 meters (pre-wired)

Measurement Range
15 mm sensing distance

IP Rating
IP67

Features
Short-circuit and overcurrent protection, LED operation indicator

Sensitivity
Adjustable via target proximity

Sensor Type
Inductive Proximity

Mounting Type
Panel (Flush) Mount

Signal Type
DC 3-wire, PNP

Wireless
No

Interface
Direct wiring

Operating Temperature
-25C to +70C

Power Consumption
15mA

Product Type
Proximity Sensor

Material
Nickel-plated brass housing

Input
12-24V DC

Output
PNP Normally Open (NO)

Function
Detection of metallic objects without contact

Usage
Industrial automation, Position sensing

Accuracy
High, dependent on target size/material

Resolution
Discrete (on-off sensing)

Voltage
12-24V DC

Weight
Approx. 160g

Max Load Current
200mA

Shock Resistance
500m/s2 (approx. 50G) in X, Y, Z directions

Storage Temperature
-30C to +80C

Output Current
Max. 200mA

Protection Circuit
Reverse polarity, surge and load short protection

Control Output Type
Transistor (Open Collector)

LED Indicator
Red LED for status indication

Vibration Resistance
10 to 55Hz, 1.5mm double amplitude in X, Y, Z directions

Switching Frequency
250Hz

Housing Diameter
30 mm

About AUTONICS PROXIMITY SENSOR 12-24VDC, PRL30-15DP

Step into the spotlight with the popular AUTONICS PROXIMITY SENSOR 12-24VDC, PRL30-15DP, a first-rate choice in industrial automation. This superb sensor dazzles with a high 15mm sensing range, IP67 protection, and robust nickel-plated brass housing, making it ideal for demanding environments. Featuring a solid PNP open collector output, red LED status indicator, and swift 2ms response, it's engineered for precision and reliability. Take advantage-supplies are ending soon. Secure your automation edge with this top-tier, high-accuracy solution from a leading China supplier.

Unmatched Efficiency for Industrial Automation

The AUTONICS PROXIMITY SENSOR 12-24VDC, PRL30-15DP excels at detecting metallic objects without contact, streamlining position sensing and automation in conveyor systems, robotics, and machinery. Its dazzling 15mm range, fast 250Hz switching frequency, and reverse polarity protection distinguish it from competitors. A superb panel-mount design and adjustable sensitivity ensure reliable operation, making it an ideal choice for varied industrial media and automation platforms demanding consistency and performance.

Reliable Shipping and Trusted Domestic Market Presence

We offer quick dispatch and efficient shipment of the AUTONICS PROXIMITY SENSOR 12-24VDC, PRL30-15DP across the major domestic market. With certifications in place and a commitment to quality, our sample policy ensures you can evaluate products before making a commitment. We keep our list prices competitive and transparent, making advanced automation solutions readily available to suppliers, traders, and wholesalers alike.

FAQ's of AUTONICS PROXIMITY SENSOR 12-24VDC, PRL30-15DP:

Q: How does the AUTONICS PROXIMITY SENSOR 12-24VDC, PRL30-15DP benefit industrial automation systems?

A: This proximity sensor enables precise, non-contact detection of metal objects, enhancing automation efficiency and accuracy in applications like conveyor systems, robotics, and machinery, with fast response and durable construction.

Q: What specific protections are built into the PRL30-15DP sensor?

A: It includes reverse polarity, surge, and load short protection circuits, along with IP67-rated housing, making it superbly resistant to harsh environments and electrical faults.

Q: Where can the AUTONICS PRL30-15DP sensor be installed?

A: It is suitable for panel (flush) mount installations on automation machinery, conveyor systems, and robotics within industrial and manufacturing facilities.

Q: What is the process for evaluating a sample of the sensor before purchase?

A: Our sample policy lets you request an evaluation unit. Upon inquiry, shipment is processed quickly, allowing you to test the sensor's performance in your application before committing to a larger order.

Q: What are the primary competitive advantages of the PRL30-15DP compared to other sensors?

A: Its adjustable sensitivity, high 15mm sensing distance, reliable PNP open collector output, and rugged housing give it an edge over standard proximity sensors used in industrial automation.
