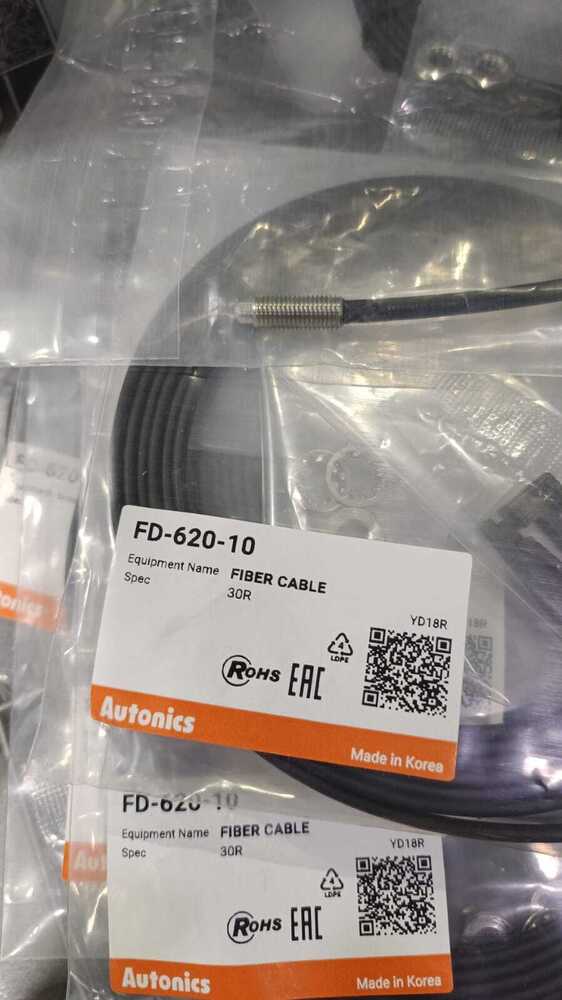

AUTONICS FIBER OPTIC CABLE SENSOR, FD-620-10

AUTONICS FIBER OPTIC CABLE SENSOR, FD-620-10 Specification

IP Rating
IP67

Response Time
Depends on Amplifier Used (typically <1ms)

Cable Length
1m (Standard)

Power Consumption
N/A (Passive, Power via amplifier)

Signal Type
Optical Transmission

Operating Temperature
-40C to 70C

Interface
Compatible with AUTONICS Fiber Optic Amplifiers

Mounting Type
Panel/Bracket Mount

Measurement Range
620mm Sensing Distance (600-700mm) depending on amplifier and target

Features
Flexible cable, Bend radius 10mm, Resistant to harsh environments

Sensor Type
Through Beam (Type R) Fiber Sensor

Wireless
No

Sensitivity
Adjustable (by amplifier)

Application
Position Sensing, Counting, Presence Detection

Product Type
Fiber Optic Cable Sensor

Material
Plastic, Stainless Steel

Input
Optical Signal

Output
Depends on Amplifier Module (typically NPN/PNP Open Collector via amplifier)

Function
Detection of Objects via Fiber Optics

Usage
Industrial Automation, Object Detection

Accuracy
High Precision

Resolution
Fine (Designed for Small Object Detection)

Voltage
N/A (No Operating Voltage; used with Fiber Optic Amplifier)

Weight
Approx. 50g (with packaging)

End Type
Threaded Brass Tips or Ferrules

Type
Through-beam Type, R Type

Light Source
Infrared/Red LED (from amplifier)

Compatible Amplifier Models
BF3RX, BF4R, BF5 Series

Core Quantity
Twin-core

Ambient Humidity
35-85% RH

Sheath Material
Polyethylene sleeve

Structure
Flexible Fiber Cable (Twin cable)

Model
FD-620-10

Detection Method
Through beam (requires receiver and emitter)

Minimum Bend Radius
10mm

Core Diameter
Approx. 2.2mm (fiber core)

About AUTONICS FIBER OPTIC CABLE SENSOR, FD-620-10

Discover the extraordinary AUTONICS FD-620-10 Fiber Optic Cable Sensor-a true virtuoso in object detection and industrial automation. Engineered for high-precision performance and fine resolution, this through-beam fiber sensor boasts a brilliant sensing range of 620mm. Durable polyethylene sheath, threaded brass tips, and twin-core flexibility ensure reliable operation in harsh conditions. Compatible with BF3RX, BF4R, and BF5 amplifiers. Limited stock available! Try now for unbeatable value, and experience a genuine bargain in advanced automation solutions before it's gone.

Extra Features & Competitive Advantages

The AUTONICS FD-620-10 Fiber Optic Sensor stands out with its versatile twin-core flexible cable, robust IP67 protection, and ability to operate from -40C to 70C. Brilliant for tight spaces with a minimal 10mm bend radius, it is the ideal solution for industrial automation, position sensing, counting, and presence detection. Exceptional sensitivity adjustment and compatibility with multiple amplifiers ensure a competitive edge, making it suitable for demanding environments seeking extraordinary reliability.

Certifications, Sample Availability & Ordering Process

Benefit from certified quality with the AUTONICS FD-620-10, trusted by suppliers, traders, and wholesalers. Samples are available upon request-just inquire about the asking price and our straightforward sample policy. Quick Dispatch ensures prompt delivery following a confirmed Purchase Order, so you can evaluate performance and suitability for your application without delay. Secure your trial today and experience seamless integration into your automated systems.

FAQ's of AUTONICS FIBER OPTIC CABLE SENSOR, FD-620-10:

Q: How does the FD-620-10 Fiber Optic Cable Sensor detect objects?

A: The FD-620-10 uses a through-beam detection method, relying on an amplified infrared or red LED light source and specialized twin-core fiber optics. Presence of an object between emitter and receiver interrupts the optical signal, enabling precise detection.

Q: What types of applications is the AUTONICS FD-620-10 best suited for?

A: This sensor excels in industrial automation tasks including position sensing, counting objects, and presence detection-especially where small object detection and high precision are essential in harsh environments.

Q: When should I choose the FD-620-10 over other fiber sensors?

A: Select the FD-620-10 for projects requiring flexible cable installation, tight bend radii, high environmental resistance, and compatibility with BF3RX, BF4R, or BF5 series amplifiers. It's also a brilliant choice for tasks demanding fast response and fine resolution.

Q: Where can I order a sample of the FD-620-10, and what is the process?

A: Samples can be requested directly from suppliers or wholesalers. Simply inquire about the asking price, review the sample policy, and submit a Purchase Order for quick dispatch and evaluation.

Q: What are the benefits of using the FD-620-10 sensor in my automation system?

A: This sensor delivers extraordinary reliability, high precision, and flexibility. Its robust design ensures stable performance in harsh industrial conditions, offering competitive advantages in efficiency and accuracy for modern automation setups.
