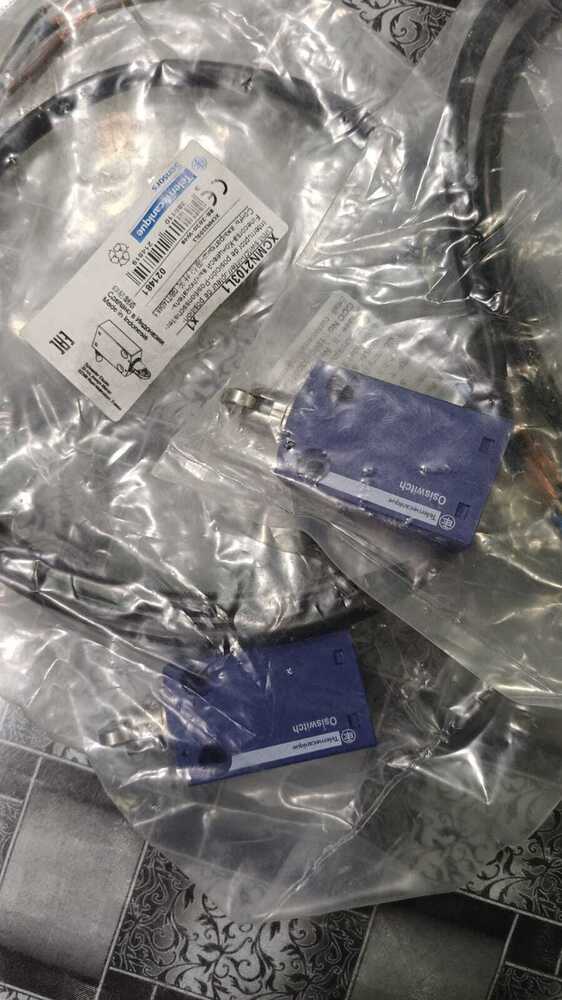

TELEMECANIQUE LIMIT SWITCH, XCMN2103L1

TELEMECANIQUE LIMIT SWITCH, XCMN2103L1 Specification

Max. Current
3A

Mechanical Life
10 million operations

Protection Level
IP66

Number of Module
Single

Rated Voltage
240V

Response Time
<15 ms

Finish Type
Matte

Circuit Type
1NO+1NC

Automation Grade
Industrial

Temperature Range
-25C to +70C

Product Type
Limit Switch

Material
Plastic and Metal

Insulation Resistance
100 M at 500 VDC

Contact Resistance
< 25 m

Max. Voltage
240V AC

Operating Temperature
-25C to +70C

Stoke
10 mm

Size
30 x 16 x 50 mm

Color
Grey & Blue

Weight
Approx 80g

Mounting Type
Panel Mount

Current Rating
3A

No Of Poles
1

Switching Frequency
120 operations/min

Humidity Tolerance
95% RH max. at 40C

Contact Configuration
Snap-action

Cable Entry
M16 x 1.5

Body Type
Rectangular

Electrical Life
500,000 cycles

Actuator Type
Plunger

Terminal Type
Screw Clamp

TELEMECANIQUE LIMIT SWITCH, XCMN2103L1 About

Experience optimum performance and elite reliability with the TELEMECANIQUE LIMIT SWITCH, XCMN2103L1-a must-have for enlightened industrial automation. Designed with a robust rectangular body and a precise plunger actuator, this sensational device ensures dependable snap-action switching up to 120 operations per minute. Its impressive electrical life of 500,000 cycles and mechanical life of 10 million operations guarantee significant savings over time. Engineered with IP66 protection, high humidity tolerance, and superior insulation resistance, it's perfect for challenging environments. Achieve maximum operational efficiency and safety with this advanced, trusted limit switch.

Application Media & Specific Usage for XCMN2103L1 Limit Switch

The TELEMECANIQUE XCMN2103L1 limit switch is ideal for industrial application media, particularly in machinery automation, conveyor systems, and equipment safety circuits. Specifically used for position detection and end limit sensing, it offers accurate operation in high-demand environments. Its robust snap-action mechanism is perfect for use in manufacturing plants, robotics, or assembly lines, ensuring precise control and protection for both operators and equipment in versatile industrial settings.

FOB Port, Supply Capacity & Packaging for TELEMECANIQUE LIMIT SWITCH

Shipped directly from leading suppliers in China, the TELEMECANIQUE XCMN2103L1 offers cost-effective outlay for bulk orders. With exceptional supply ability to meet varying industrial needs, this product is readily available for quick dispatch. The packaging details are designed for secure delivery and minimal expenditure, ensuring the switch reaches you in pristine condition. Each unit is securely packed to reduce transit damage, optimizing operational readiness upon arrival at your facility.

FAQ's of TELEMECANIQUE LIMIT SWITCH, XCMN2103L1:

Q: How should the TELEMECANIQUE XCMN2103L1 limit switch be installed for optimum performance?

A: For optimum results, the XCMN2103L1 should be panel-mounted with secure screw clamp terminals, ensuring a proper fit and reliable electrical connection. Follow the wiring diagram in the manual to maintain accuracy and safety.

Q: What are the main benefits of using this limit switch in industrial automation?

A: This elite limit switch offers sensational reliability, high mechanical and electrical life, and rapid response time, all contributing to substantial savings by reducing downtime and maintenance in demanding industrial environments.

Q: When is it recommended to use the snap-action contact configuration?

A: Snap-action contacts are best used when precise and rapid switching is required, such as in applications involving machine safety, conveyor systems, or automated position sensing.

Q: Where is the ideal application media for the XCMN2103L1?

A: Its robust design, IP66 protection, and tolerance to high humidity make it ideal for automation in factories, robotics, transport machinery, and similar industrial sectors.

Q: What is the supply process for ordering this limit switch?

A: Orders are processed and shipped directly from China, allowing for quick fulfillment. Each unit undergoes quality checks before secure packaging to ensure reliable delivery.

Q: How does the XCMN2103L1 withstand challenging environmental conditions?

A: The switch is constructed from durable plastic and metal, IP66 rated for dust and water protection, and operates efficiently in temperatures from -25C to +70C with humidity up to 95% RH at 40C.
