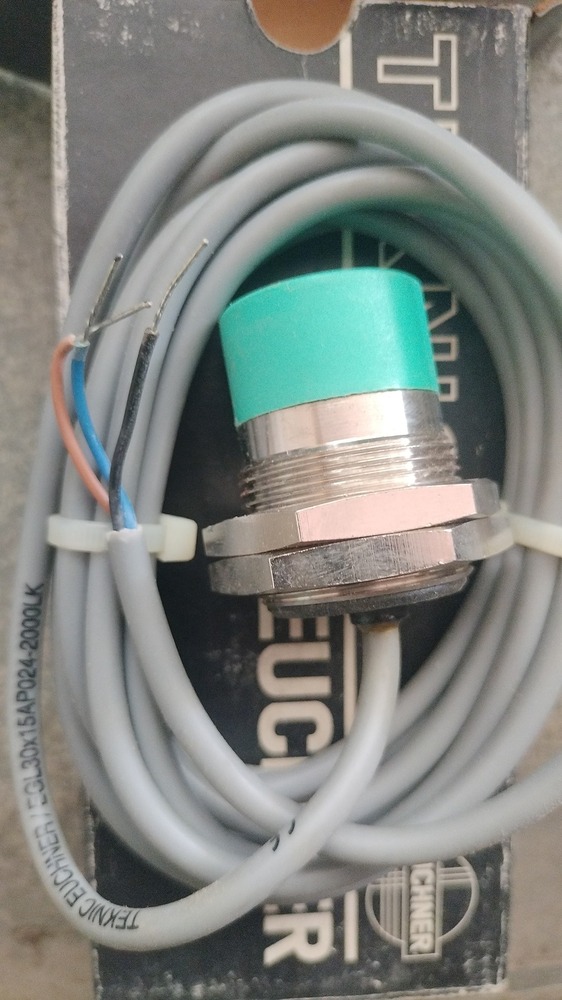

TEKNIC EUCHNER PROXIMITY SWITCH, EGL 30X15 AP 024-2000LK

TEKNIC EUCHNER PROXIMITY SWITCH, EGL 30X15 AP 024-2000LK Specification

Protection Level
IP67

Circuit Type
2-wire

Response Time
10ms

Finish Type
Matte

Mechanical Life
More than 1,000,000 operations

Rated Voltage
24V DC

Automation Grade
Industrial

Number of Module
Single

Temperature Range
-25C to +70C

Max. Current
200mA

Product Type
Proximity Switch

Material
ABS Plastic Body

Insulation Resistance
More than 100 M at 500 V DC

Contact Resistance
100 m (initial)

Max. Voltage
250V AC

Operating Temperature
-25C to +70C

Stoke
30x15mm sensing area

Size
30mm x 15mm

Color
Black

Weight
Approx. 120 grams

Mounting Type
Panel Mount

Current Rating
200mA

No Of Poles
1

Series
EGL 30X15 AP 024-2000LK

Shock Resistance
50G (500 m/s2)

Vibration Resistance
10-55Hz (double amplitude 1.5mm)

Sensing Distance
15 mm

Output Type
PNP Normally Open

Switching Frequency
500 Hz

Cable Length
2 meters

Operating Voltage Range
10V to 30V DC

Terminal Type
Pre-wired

Power Consumption
10 mA

About TEKNIC EUCHNER PROXIMITY SWITCH, EGL 30X15 AP 024-2000LK

Take advantage of the exquisite TEKNIC EUCHNER PROXIMITY SWITCH, EGL 30X15 AP 024-2000LK-a classic solution for robust industrial automation needs. Engineered for reliable sensing with a 15 mm detection distance, this noteworthy switch features a sturdy ABS plastic body, IP67 protection, and a 2-meter pre-wired cable. Capitalise on its high switching frequency (500 Hz) and wide operating voltage (10-30V DC) for precise, efficient operations. Buy this premium switch for enduring durability, with over 1,000,000 mechanical operations and advanced shock/vibration resistance. Elevate safety and performance on any industrial panel-all in a sleek matte black finish.

Special Features & Application Domains

The EGL 30X15 AP 024-2000LK proximity switch excels in demanding industrial environments, including manufacturing lines, automation systems, and process control panels. With its 15 mm sensing distance and IP67-rated ABS body, it ensures dependable performance against dust and water ingress. Special features such as vibration and shock resistance, rapid 10 ms response time, and extended mechanical life make it ideal for continuous operations in harsh sites of application like factories, assembly lines, and high-precision machinery.

Market Position & Sample Accessibility

The TEKNIC EUCHNER PROXIMITY SWITCH stands out in the global market for its premium build and high market value, especially within the industrial automation sector. Available at a competitive list price, this product caters to a wide domestic market and numerous export markets, including Asia, Europe, and North America. Customers can request product samples to evaluate its quality before purchase, enhancing confidence in wholesaler and supplier channels.

FAQ's of TEKNIC EUCHNER PROXIMITY SWITCH, EGL 30X15 AP 024-2000LK:

Q: How can I install the TEKNIC EUCHNER PROXIMITY SWITCH, EGL 30X15 AP 024-2000LK?

A: The switch is designed for easy panel mounting and comes pre-wired with a 2-meter cable, making installation straightforward for industrial applications.

Q: What distinguishes the EGL 30X15 AP 024-2000LK from other proximity switches?

A: It features a noteworthy 15 mm sensing range, robust ABS plastic construction, IP67 protection, and exceptional vibration and shock resistance, ensuring reliability in harsh industrial settings.
