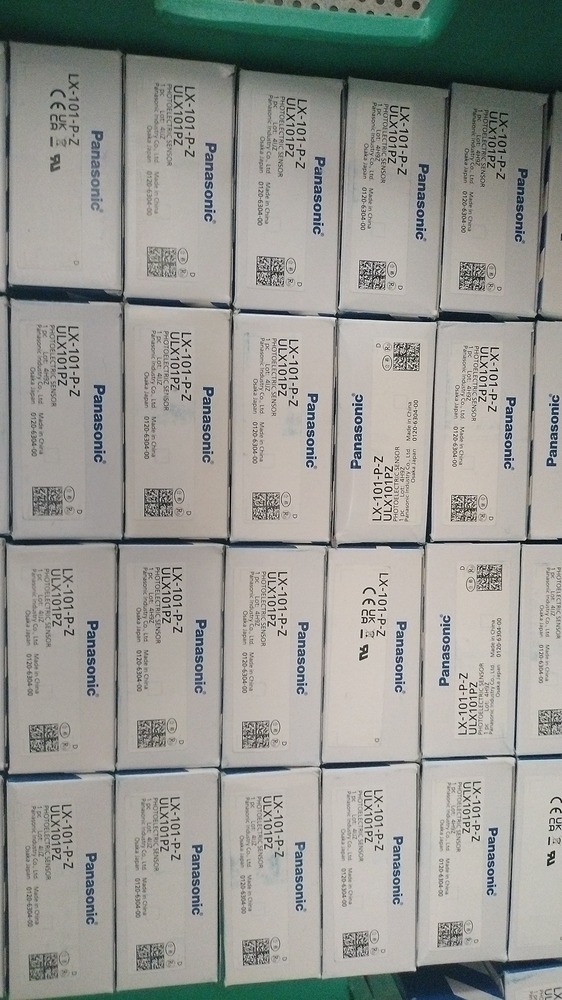

PNASONIC COLOUR MARK SENSOR, LX-101-P-Z

PNASONIC COLOUR MARK SENSOR, LX-101-P-Z Specification

Measurement Range
5 to 40 mm (sensing distance adjustable)

Mounting Type
Through-hole or Bracket Mount

IP Rating
IP64

Features
Compact Size, High-Speed Response, Adjustable Sensitivity, LED Indicator

Operating Temperature
-10C to +55C (no freezing or condensation)

Sensor Type
Photoelectric Colour Mark Sensor

Application
Detection of registration mark, color mark, label presence

Sensitivity
Adjustable (Manual Sensitivity Adjustment Potentiometer)

Signal Type
Digital (ON/OFF Output)

Wireless
No

Interface
Pre-wired Cable

Cable Length
2 meters

Power Consumption
40 mA or less

Response Time
0.1 ms (100 s)

Product Type
Colour Mark Sensor

Material
Plastic (Housing)

Input
12-24V DC

Output
NPN open-collector / PNP open-collector (depending on model, LX-101-P-Z is PNP)

Function
Detection of printed mark or color mark on packaging material

Usage
Industrial Automation, Packaging, Printing Industries

Accuracy
High Accuracy

Resolution
1 mm or less (depending on installation)

Voltage
12-24 VDC (ripple p-p 10% or less)

Weight
Approx. 50g (including cable)

Hysteresis
10% or less of sensing distance

Control Output Capacity
50mA at 30V DC

Connection Method
3-wire

Indicator
Operation Indicator (Orange LED), Stable Indicator (Green LED)

Model Number
LX-101-P-Z

Ambient Humidity
35% to 85% RH (no condensation)

Light Source
Red LED (wavelength: 650 nm)

PNASONIC COLOUR MARK SENSOR, LX-101-P-Z About

Explore the crowning achievement in mark detection: the PNASONIC COLOUR MARK SENSOR LX-101-P-Z. This excellent sensor delivers outstanding accuracy and prime performance in industrial settings, trusted by packaging and printing professionals alike. Featuring a Red LED (650 nm), digital output (PNP open-collector), and sensitive manual adjustment, it detects even subtle marks with a 1 mm or less resolution. Its bargain compact design, 0.1 ms response, and robust IP64 protection ensure dependable logistics. Markdown your choices with this adaptable sensor for impactful automation solutions.

Industrial Applications & Advantages

The PNASONIC COLOUR MARK SENSOR LX-101-P-Z is widely used in packaging, printing, and automation industries. It is primarily used as a detector for registration marks, color marks, and label presence on diverse packaging materials. Its high accuracy and rapid response provide a significant advantage, ensuring precise and reliable detection. The sensor's compact size and adjustable sensitivity make it suitable for integration into tight spaces, enhancing production efficiency over conventional detection methods.

Certifications & Shipping Policies

PNASONIC's LX-101-P-Z sensor comes certified for prime industrial quality standards, meeting stringent testing requirements. Express shipping options and efficient logistics ensure timely global delivery by air or sea, supported by major FOB ports in China. A sample policy allows customers to evaluate product suitability before bulk purchasing. Reliable transportation partners guarantee your shipment reaches its destination safely, making it easy for suppliers, traders, and wholesalers to benefit from fast, hassle-free procurement and worldwide distribution.

FAQ's of PNASONIC COLOUR MARK SENSOR, LX-101-P-Z:

Q: How is the LX-101-P-Z colour mark sensor installed in industrial environments?

A: The LX-101-P-Z sensor can be easily installed using through-hole or bracket mounting, allowing flexible integration into existing automation lines or packaging machinery.

Q: What applications are best suited for the LX-101-P-Z sensor?

A: This sensor is prime for detecting registration marks, color marks, and labels on packaging materials, making it ideal for printing, packaging, and industrial automation sectors.

Q: Where can I use the LX-101-P-Z sensor for optimal results?

A: For optimal results, install the sensor on production lines where precise mark or color detection is needed, such as at registration points on packaging or printing machines.

Q: What benefits does manual sensitivity adjustment offer?

A: Manual sensitivity allows operators to tune the sensor for varying mark visibility, material colors, or thickness, ensuring excellent detection accuracy and minimizing false triggers.

Q: How does the shipping process work for international customers?

A: Orders are processed promptly with express shipping, utilizing reliable logistics partners and FOB ports in China to ensure swift and secure transportation to your location.
