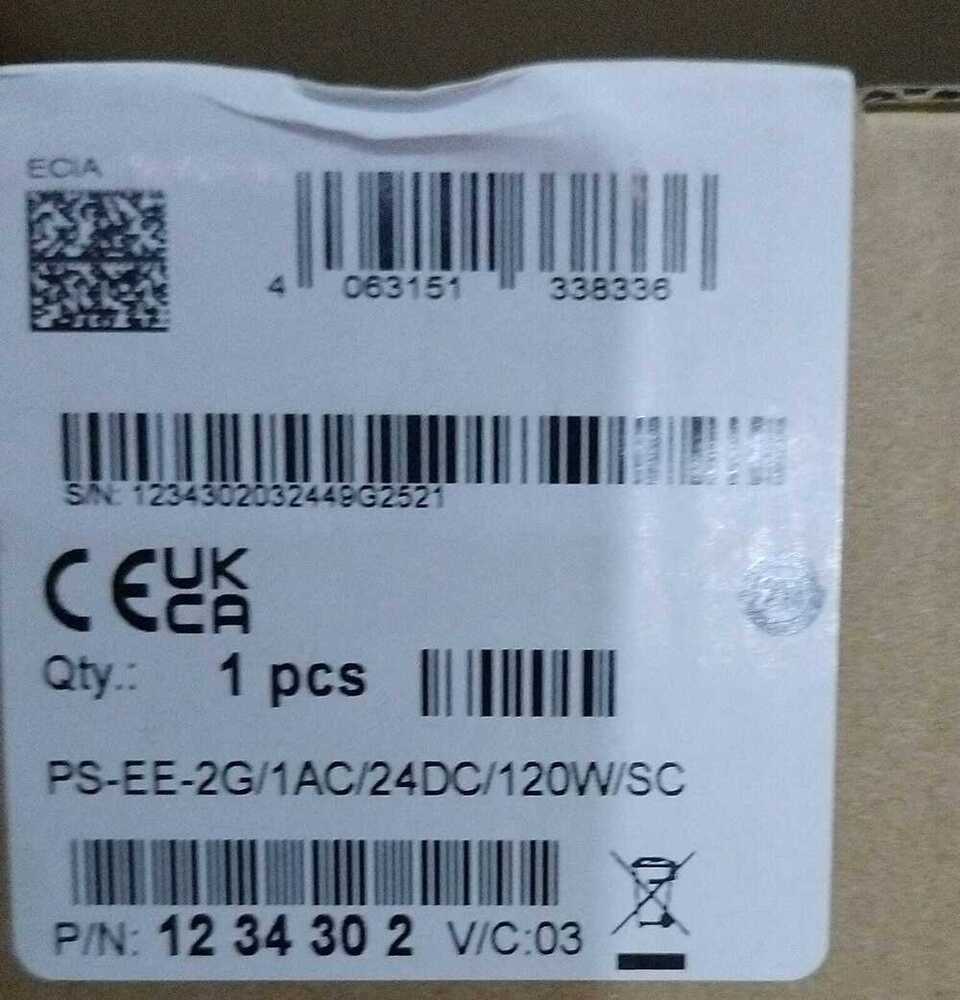

PHONEIX CONTACT- POWER SUPPLY, PS-EE-2G/1AC/24DC/120W/SC

PHONEIX CONTACT- POWER SUPPLY, PS-EE-2G/1AC/24DC/120W/SC Specification

Features
Compact design, screw connection, DIN rail mounting, high reliability, signal output relay contact

Working Temperature
-25C to +70C

Output Current
5 A

Rated Power
120 W

Noise Level
< 40 dB

Power Supply
Single-phase AC

Connector Type
Screw terminal

Application
Industrial automation, control cabinets, machine building

Power Factor
> 0.95 at 230 V AC

Current Range
0-5 A

Cooling Method
Convection cooling

Operating Temperature
-25C to +70C

Phase
1 Phase

Output Type
Single Output DC

Rated Current
5 A

Product Type
Power Supply Unit

Output Power
120 W

Output Frequency
50/60 Hz

Input Voltage
100-240 V AC

Voltage Protection
Overvoltage, Short-circuit, Overload Protection

Efficiency
up to 91%

Material
Plastic housing

Line Regulation
< 0.1%

Storage Temperature
-40C to +85C

Weight
0.8 kg

Ingress Protection
IP20

Signal Output
Relay contact (DC OK signal)

Output Voltage
24 V DC

Isolation Voltage
4 kV AC (input/output)

Protection Class
Class I (with PE connection)

Status Indication
LED indicator for output voltage

Wire Range
0.5-6 mm2 solid/stranded

Mounting Type
DIN Rail Mount

Ripple and Noise
< 100 mVp-p

Input Frequency
47-63 Hz

Dimensions
123 x 54 x 124 mm (H x W x D)

About PHONEIX CONTACT- POWER SUPPLY, PS-EE-2G/1AC/24DC/120W/SC

Experience the rare efficiency and impeccable reliability of the PHONEIX CONTACT POWER SUPPLY, PS-EE-2G/1AC/24DC/120W/SC. Capitalise on its grand features such as cost-effective energy management, splendid 91% efficiency rating, and superb isolation voltage of 4 kV AC. Designed for industrial automation and control cabinets, this power supply showcases a robust plastic housing with Class I protection and a user-friendly LED indicator. Its compact and DIN rail-mountable structure delivers seamless integration and outstanding stability, making it an optimal choice for demanding industrial needs.

Outstanding Features & Application Areas

The PHONEIX CONTACT PS-EE-2G/1AC/24DC/120W/SC excels in industrial automation, machine building, and control cabinet environments. With a compact DIN rail mount design, superb protection features and LED output indicators, this power supply ensures reliable performance. Benefits such as signal output relay contact and convection cooling present primary competitive advantages, making it ideal for systems that require uninterrupted and safe DC power supply in challenging industrial settings.

Supply Capability, Export & Sampling Information

We maintain a robust supply ability for the PHONEIX CONTACT POWER SUPPLY, ensuring that shipped goods are delivered on schedule and at an attractive rate. Sample policies are flexible, allowing for estimates to be provided according to customer requirements. Our main export markets span East Asia, Southeast Asia, and international regions, guaranteeing prompt and efficient global distribution of this grand and reliable power solution.

FAQ's of PHONEIX CONTACT- POWER SUPPLY, PS-EE-2G/1AC/24DC/120W/SC:

Q: How does the PHONEIX CONTACT POWER SUPPLY ensure robust industrial performance?

A: The power supply features a compact DIN rail mount design, high isolation voltage, and multiple protection mechanisms, ensuring uninterrupted and safe operation in industrial automation, control cabinets, and machine building applications.

Q: What are the primary benefits of using this power supply in automation systems?

A: Benefits include its high efficiency (up to 91%), output voltage stability, low noise level, advanced protection (overvoltage, short-circuit), and user-friendly features such as LED indication and signal output relay contact.

Q: Where can the PHONEIX CONTACT PS-EE-2G/1AC/24DC/120W/SC be installed?

A: With its compact size and DIN rail mounting capability, this power supply can be conveniently installed in industrial cabinets, automation systems, and machine control panels.

Q: What is the process for requesting a sample unit?

A: Sample policy allows potential buyers to estimate their needs by requesting a sample unit, which can be arranged through direct inquiry, with shipping and rates tailored to individual requirements.

Q: When is this power supply most cost-effective to deploy?

A: It is most cost-effective when deployed in environments requiring consistent 24 V DC outputs, high reliability, and long operating hours, especially for industrial automation and control systems needing stable energy supply.
