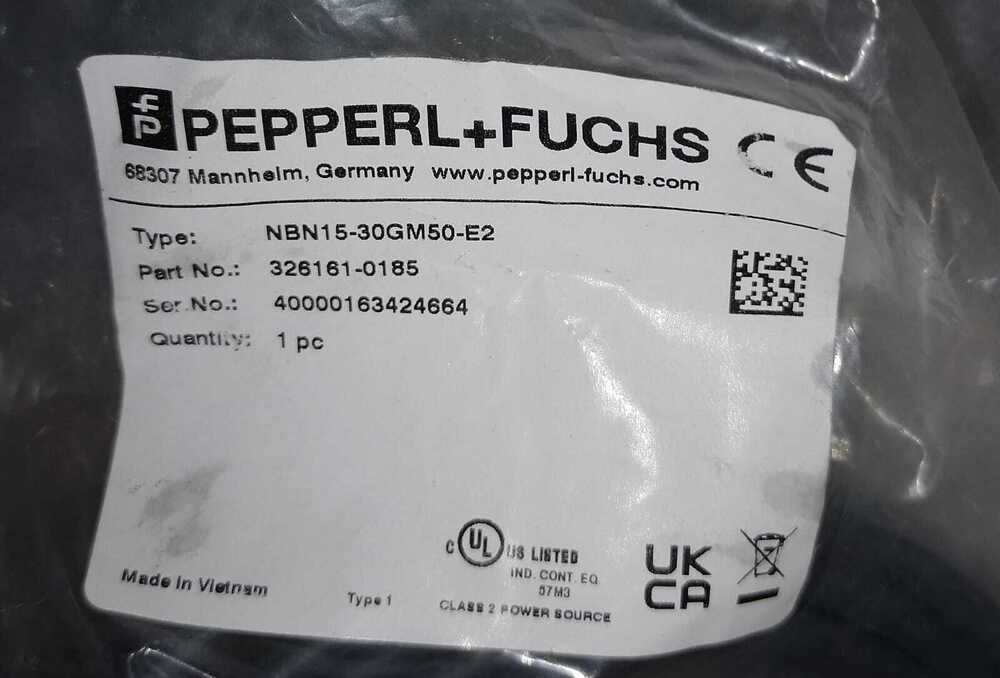

PEPPERL FUCHS , PROXIMITY SENSOR, NBN15-30GM50-E2,NBN15-30GM50-E2-V1

PEPPERL FUCHS , PROXIMITY SENSOR, NBN15-30GM50-E2,NBN15-30GM50-E2-V1 Specification

IP Rating
IP67

Measurement Range
Sensing distance: 15 mm flush/15 mm non-flush

Signal Type
Discrete (binary output)

Sensor Type
Inductive

Interface
Cable or M12 connector (V1 variant)

Sensitivity
Detects ferrous and non-ferrous metals

Operating Temperature
-25C to +70C Celsius (oC)

Features
Short-circuit protection, reverse polarity protection, LED status indicator

Mounting Type
Threaded, M30

Wireless
No

Cable Length
2 m (or connector for V1 variant) Meter (m)

Application
Metal object detection, conveyor systems, assembly lines

Product Type
Inductive Proximity Sensor

Material
Nickel-plated brass housing

Input
3-wire DC

Output
PNP, Normally Open (NO)

Function
Non-contact object detection

Usage
Industrial automation, position detection

Accuracy
High repeatability, 0.3 mm mm

Resolution
Fine detection depending on target

Voltage
10-30 VDC Volt (v)

Weight
Approx. 100 g Grams (g)

Max Load Current
200 mA

Enclosure Material
Nickel-plated brass with plastic sensing face

Sensing Face Material
Plastic (PBT)

Shock Resistance
30g, 11 ms, half sine wave in X, Y, Z axes

Vibration Resistance
10-55 Hz, 1 mm amplitude, 2 hours each in X, Y, and Z directions

Connection Type
PVC cable or M12 plug (V1 model)

Housing Diameter
30 mm

LED Indicator
Yes (operation state)

EMC Standards
EN 60947-5-2

Switching Frequency
200 Hz

Polarity
PNP

Repeat Accuracy
0.3 mm

Protection Circuitry
Reverse polarity and short-circuit protection

Operating Humidity
35% to 95% RH

About PEPPERL FUCHS , PROXIMITY SENSOR, NBN15-30GM50-E2,NBN15-30GM50-E2-V1

Experience the exclusive PEPPERL FUCHS PROXIMITY SENSOR, NBN15-30GM50-E2 and NBN15-30GM50-E2-V1devices that bring kingly performance and sizzling instant savings to your automation solutions. Crafted with an eminent nickel-plated brass housing and a robust plastic sensing face, these heroic sensors excel in industrial environments, boasting IP67 rating and superior resistance to shock and vibration. Benefit from high repeat accuracy ( 0.3 mm), LED indicators, and advanced short-circuit and reverse polarity protection. Choose between PVC cable or M12 plug for ultimate versatilityideal for metal object detection in conveyor systems and assembly lines.

Optimized Industrial Sensing Applications

The PEPPERL FUCHS PROXIMITY SENSOR, NBN15-30GM50-E2, and NBN15-30GM50-E2-V1 are used for reliable non-contact metal object detection, perfect for conveyor systems, position monitoring, and industrial automation. Type of usage includes precise sensing in harsh environments with high repeatability, suitable for flush or non-flush mounting. Best for operational excellence, these sensors offer long-lasting durability, making them a prime choice for use in assembly lines, packaging, or automated material handling applications across multiple industries.

Certifications, Export Markets & Dispatch Process

Certified to EMC EN 60947-5-2 standards, the PEPPERL FUCHS PROXIMITY SENSORS serve eminent global markets, primarily Asia, the Middle East, and Europe. With sample availability for thorough pre-order evaluation, we ensure smooth order completion, fast packing, and prompt dispatching. Our streamlined process guarantees efficient delivery to your location, meeting demanding quality expectations while upholding strict compliance. Trust our expertise as a supplier, trader, and wholesaler committed to satisfaction with every shipment.

FAQs of PEPPERL FUCHS , PROXIMITY SENSOR, NBN15-30GM50-E2,NBN15-30GM50-E2-V1:

Q: How do I install the PEPPERL FUCHS NBN15-30GM50-E2 sensor?

A: Installation is straightforwardmount the threaded M30 sensor in the required location, connect the PVC cable or M12 plug to your control system, and check the LED indicator for operational status.

Q: What types of applications can this proximity sensor be used for?

A: It is designed for metal object detection, ideal for industrial automation tasks such as conveyor positioning, assembly line monitoring, and packaging systems.

Q: When should I choose the V1 variant with M12 connector?

A: Select the NBN15-30GM50-E2-V1 model with M12 connector for quick, detachable connections, especially in setups requiring frequent sensor changes or maintenance.

Q: Where are these sensors typically exported and who benefits from their use?

A: These sensors are exported globally, with a focus on Asian, Middle Eastern, and European markets. Manufacturers and automation professionals benefit most from their high precision and reliability.

Q: What is the process for obtaining a sample before placing a bulk order?

A: You can request a sample as part of the order completion process. Once requested, the sample is packed and dispatched quickly, allowing you to evaluate the sensors suitability before committing to a bulk order.

Q: How does the protection circuitry enhance the sensors lifespan?

A: Built-in reverse polarity and short-circuit protection prevent electrical damage, ensuring longevity and reducing downtime in industrial environments.
