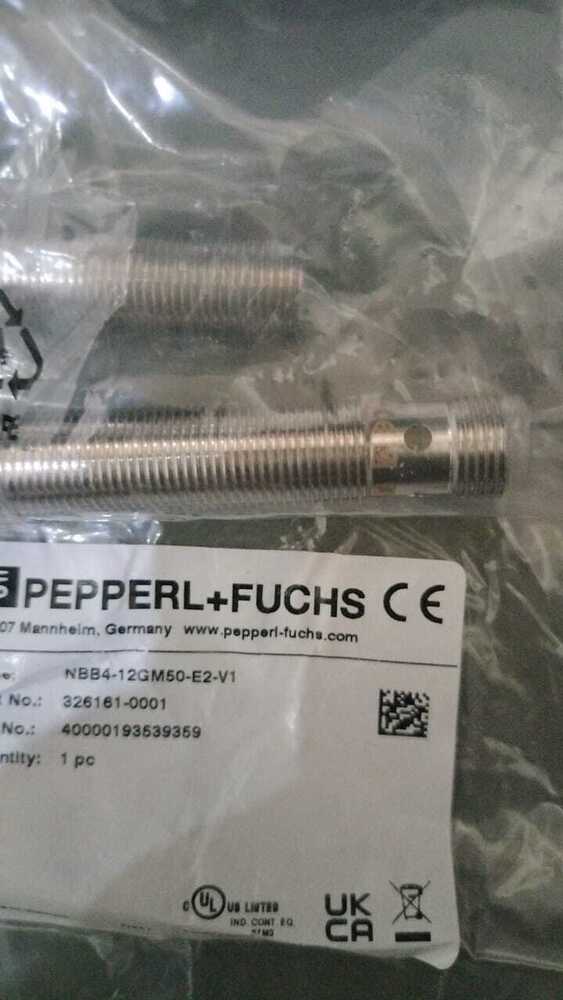

PEPPERL FUCHS PROXIMITY SENSOR, NBB4-12GM50-E2-V1

PEPPERL FUCHS PROXIMITY SENSOR, NBB4-12GM50-E2-V1 Specification

Sensor Type
Inductive

Interface
M12x1 connector, 4-pin

Application
Detection of metal objects, automation systems

Features
LED status indicator, short-circuit protection, reverse polarity protection

Cable Length
Not included; M12 connector

Response Time
<1 ms

Operating Temperature
-25C to +70C

IP Rating
IP67

Measurement Range
Sensing distance: 4 mm

Power Consumption
10 mA (no load)

Signal Type
Digital

Mounting Type
Flush mounting (embeddable)

Sensitivity
Fixed, factory set

Wireless
No

Product Type
Inductive Proximity Sensor

Material
Nickel-plated brass housing

Input
DC 3-wire

Output
PNP, NO (normally open)

Function
Non-contact object detection

Usage
Industrial automation, machinery position sensing

Accuracy
High accuracy, typical switching accuracy 10% of Sn

Resolution
Discrete (on/off) detection

Voltage
10-30 V DC

Weight
Approx. 40 g

Temperature Drift
10% max

Switching Element Function
NO (normally open)

Dimensions
M12 x 1, 50 mm length

Housing Diameter
12 mm

Switching Frequency
1,000 Hz

Vibration Resistance
10-55 Hz, amplitude 1 mm

Enclosure Material
Nickel-plated brass

Shock Resistance
30 g, 11 ms

LED Indication
Yellow LED for switching state

Actuating Element
Ferromagnetic metals (optimal), reduced range for non-ferrous metals

Control Output
3-wire, PNP

Repeat Accuracy
5% of sensing distance

Approvals/Conformity
CE, cULus

Protection Circuits
Short-circuit, overload, and reverse polarity protection

Connection Type
Plug, M12

About PEPPERL FUCHS PROXIMITY SENSOR, NBB4-12GM50-E2-V1

Take advantage of the stellar performance of the PEPPERL FUCHS PROXIMITY SENSOR, NBB4-12GM50-E2-V1, crafted for prime industrial automation tasks. With a noble nickel-plated brass body and flush mounting, this sensor offers a sensing distance of 4 mm and high repeat accuracy. The robust plug-and-go M12 connector ensures swift setup, while integrated protection circuits safeguard operation. Jump on this opportunity for reliable, non-contact metallic object detection-Try Now to boost your automation with outstanding control output and noble durability.

Versatile Applications & User Base

The PEPPERL FUCHS PROXIMITY SENSOR, NBB4-12GM50-E2-V1 is commonly used by automation engineers, system integrators, and machine manufacturers. It excels in general industrial automation, machinery position sensing, and discrete process control. Its prime sensing capability is ideal for mounting on metallic surfaces and within harsh environments thanks to its IP67 rating. This makes it the go-to choice for detecting metal objects and ensuring precise, non-contact switching in automated production lines.

Packaging, Sample Policy & Dispatch Information

Each PEPPERL FUCHS PROXIMITY SENSOR, NBB4-12GM50-E2-V1 is carefully packed for secure transport services, ensuring protection until handover. Dispatching is swift for both bulk and sample orders. A sample policy is in place-samples are available upon request, allowing users to verify excellence before embarking on larger purchases. Trust in reliable logistics for prompt delivery and efficient service from supplier to final destination.

FAQ's of PEPPERL FUCHS PROXIMITY SENSOR, NBB4-12GM50-E2-V1:

Q: How does the PEPPERL FUCHS NBB4-12GM50-E2-V1 sensor detect objects?

A: This sensor uses inductive technology to detect ferromagnetic metals with optimal sensitivity and can also detect non-ferrous metals, though with reduced range.

Q: What is the typical application of this proximity sensor?

A: It is primarily used for industrial automation and machinery position sensing, making it ideal for monitoring and controlling the position of metal objects in automated systems.

Q: Where can the sensor be mounted for best results?

A: Thanks to its flush mounting design and IP67 rating, the sensor can be securely embedded on metallic surfaces in harsh environments, ensuring reliable operation in demanding industrial settings.

Q: What protection features does the sensor offer?

A: The NBB4-12GM50-E2-V1 has built-in short-circuit, overload, and reverse polarity protection, ensuring long-lasting and safe performance in industrial setups.

Q: Is a sample available before placing a bulk order?

A: Yes, samples of the PEPPERL FUCHS PROXIMITY SENSOR are available upon request, so you can test its performance and suitability for your application prior to committing to a large order.
