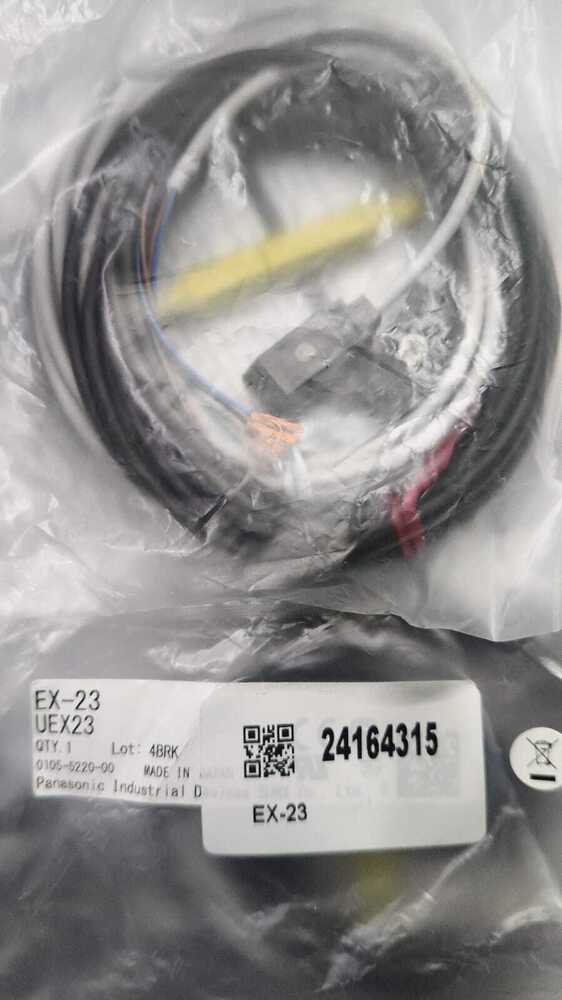

PANASONIC PHOTOELECTRIC SENSOR, EX-23

PANASONIC PHOTOELECTRIC SENSOR, EX-23 Specification

Application
Factory automation, Packaging, Conveyors

Features
Compact size, High-speed response, Easy installation, Indicator LED

Interface
Cable

Sensitivity
Adjustable via potentiometer

Signal Type
Digital

Sensor Type
Through-beam (with EX-23 receiver only)

Operating Temperature
-25C to +55C (No freezing)

Wireless
No

IP Rating
IP67

Mounting Type
Through-hole / panel mount

Power Consumption
15 mA or less

Measurement Range
Up to 500 mm (typical)

Cable Length
2 m standard

Response Time
500 s or less

Product Type
Photoelectric Sensor

Material
Polycarbonate (Housing), Polyurethane (Cable)

Input
DC 12-24V regulated

Output
NPN Open collector, 100 mA max.

Function
Object Detection

Usage
Automatic control, Position detection

Accuracy
High reliability

Resolution
Detects objects as small as 0.3 mm

Voltage
12-24 V DC

Weight
Approx. 10 g (without cable)

Vibration Resistance
10 to 55 Hz, Amplitude 1.5 mm (X, Y, Z directions)

Ambient Light Resistance
Incandescent light: 3,000 lux, Sunlight: 10,000 lux

Series
EX-20 Series

Control Output
NPN open-collector output, 30 V DC max.

Light Source
Infrared LED (modulated)

Operating Humidity
35% to 85% RH, No condensation

Protection Circuit
Reverse polarity protection, Surge absorption

Shock Resistance
500 m/s2, 3 times each in X, Y, Z directions

EMC Immunity
Complies with EN standards

Case Material
Polycarbonate resin

Connection Type
Pre-wired type

Indicator
Operation indicator (red LED), Stability indicator (green LED)

About PANASONIC PHOTOELECTRIC SENSOR, EX-23

Upgrade your automation systems with the Elite PANASONIC PHOTOELECTRIC SENSOR, EX-23-an uncommon, top-drawer solution offering first-class object detection accuracy. Engineered with a modulated infrared LED light source and NPN open-collector output (30 V DC max.), this sensor ensures highly reliable performance across a wide range of industrial scenarios. Its polycarbonate resin construction and IP67 rating grant robust durability, while high EMC immunity complies with EN standards, making it ideal for promotions and hot deal seekers wanting precision and versatility. Enjoy rapid installation and easy monitoring with indicator LEDs and pre-wired connectivity.

Superior Advantages and Versatile Applications

The EX-23 sensor stands out for superior shock and vibration resistance, unmatched detection capabilities down to 0.3 mm, and first-class reliability. Application media include factory automation, packaging lines, and conveyors. Used as a key component for position detection and automatic control, this sensor excels in high-speed environments, providing high stability and operational efficiency for demanding industrial operations.

Global Markets, Sample Availability, and Certifications

The EX-23 photoelectric sensor enjoys robust demand in major export markets including Asia, Europe, and North America. With sample availability for expedited customer evaluation and industry-leading certifications such as compliance with EN standards, the sensor ensures confidence in overseas as well as domestic markets. Reliable order completion and timely delivery highlight a professional, customer-oriented approach to international trade and local supply.

FAQ's of PANASONIC PHOTOELECTRIC SENSOR, EX-23:

Q: How does the PANASONIC EX-23 sensor ensure high detection accuracy?

A: The EX-23 sensor utilizes a modulated infrared LED paired with precision engineering, allowing it to reliably detect objects as small as 0.3 mm. An adjustable potentiometer enables fine-tuning of sensitivity for unmatched accuracy in various applications.

Q: What applications are best suited for this photoelectric sensor?

A: This sensor excels in factory automation, packaging, and conveyor systems. It's ideal for tasks involving automatic control, position detection, and high-speed object detection in demanding industrial environments.

Q: Where can the EX-23 sensor be installed?

A: With its through-hole or panel mounting design and compact size, the EX-23 sensor is versatile enough for integration in tight spaces and harsh environments, thanks to its IP67 rating and durable construction.

Q: What is the process for ordering and receiving samples?

A: Samples are readily available for evaluation. You can contact the supplier, trader, or wholesaler in China to request samples, ensuring quick order completion and delivery for your project requirements.

Q: What benefits does the pre-wired connection type offer?

A: The pre-wired design simplifies installation, minimizes wiring errors, and ensures secure, reliable electrical connections, contributing to faster deployment and reduced downtime.
