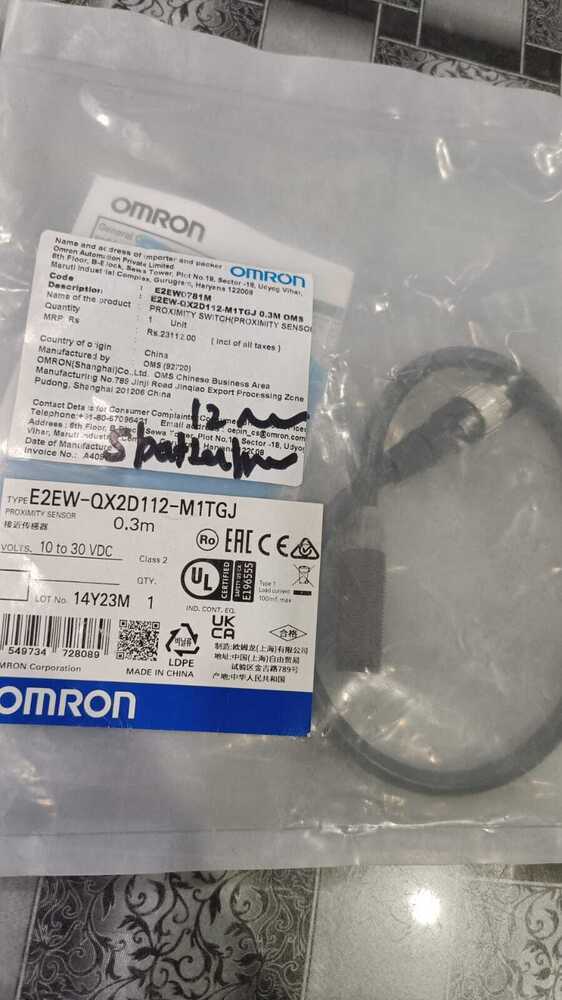

OMRON SPATTER PROOF METAL FACE PROXIMITY SENSOR 12MM DC 2W NO, E2EW-QX2D112-M1TGJ 0.3M

OMRON SPATTER PROOF METAL FACE PROXIMITY SENSOR 12MM DC 2W NO, E2EW-QX2D112-M1TGJ 0.3M Specification

Response Time
1 ms

Mounting Type
Flush Mount (M12 Thread)

IP Rating
IP67

Measurement Range
Sensing distance: 2 mm

Operating Temperature
-40C to +85C

Power Consumption
0.8W

Application
Welding, Automotive, Industrial Automation

Interface
Prewired Cable

Features
Spatter Proof, Robust Metal Face, High Durability

Sensor Type
Inductive Proximity Sensor

Signal Type
Digital

Sensitivity
Factory set, optimized for metal detection

Cable Length
0.3 m

Wireless
No

Product Type
Spatter Proof Metal Face Proximity Sensor

Material
Stainless Steel Housing, Metal Face

Input
DC 2-Wire

Output
PNP NO (Normally Open)

Function
NO (Normally Open)

Usage
Detects metal objects in welding environments

Accuracy
High

Voltage
12-24 V DC

Weight
Approx. 55g (with cable)

Max Load Current
100 mA

Shock Resistance
500 m/s2 (approx. 50G)

Vibration Resistance
10 to 55 Hz, 1.5 mm double amplitude

Indicator
Operation indicator (LED)

Ambient Humidity
35% to 95% RH

Cable Type
Oil-resistant PVC, 3-wire

Model
E2EW-QX2D112-M1TGJ

Sensing Side
Front (face) metal type

Protection Circuit
Reverse polarity and surge protection

Residual Voltage
3 V at 100 mA load

OMRON SPATTER PROOF METAL FACE PROXIMITY SENSOR 12MM DC 2W NO, E2EW-QX2D112-M1TGJ 0.3M About

The OMRON Spatter Proof Metal Face Proximity Sensor 12MM DC 2W NO, model E2EW-QX2D112-M1TGJ, is a meritorious choice for detecting metal objects in redoubtable welding environments. Engineered with a rarefied stainless steel housing and robust metal face, it provides high durability against intense spatter and mechanical shock. With reverse polarity and surge protection, the sensor excels in demanding applications. Markdown the details and procure this sensor today to elevate your order's performance in automotive and industrial automation settings.

Advantage and Application Suitability

The OMRON Spatter Proof Proximity Sensor offers exceptional spatter resistance, making it invaluable for harsh welding environments. Its robust metal face enables accurate metal detection on surfaces prone to contamination. Ideal for automotive and industrial automation, it stands out due to its flush mount capability and oil-resistant cable. With reliable detection in metal-rich areas, the sensor truly excels in media exposed to high vibration and shock, consistently delivering accurate performance.

Sample, Export, and Payment Flexibility

Samples of the OMRON Spatter Proof Metal Face Proximity Sensor are available for prospective clients, offering firsthand experience of its capability. Main export markets include China and other industrial hubs. Payment terms are convenient, usually requiring no charge for samples, though shipment and freight costs may apply. Secure your procurement with flexible transactions and ensure timely delivery of your order to keep your operations running seamlessly.

FAQ's of OMRON SPATTER PROOF METAL FACE PROXIMITY SENSOR 12MM DC 2W NO, E2EW-QX2D112-M1TGJ 0.3M:

Q: How does the OMRON SPATTER PROOF METAL FACE PROXIMITY SENSOR withstand harsh environments?

A: This sensor features a stainless steel housing and a robust metal face, conferring superior resistance to welding spatter, vibration, and mechanical shock, making it highly reliable in tough industrial settings.

Q: What are the main applications of this proximity sensor?

A: It is ideally suited for detecting metal objects in environments such as welding lines, automotive assembly, and diverse industrial automation systems where durability and accuracy are crucial.

Q: Where can I install this sensor for optimal performance?

A: The sensor is designed for flush mounting using its M12 threaded body, ensuring stable performance on front-facing metal surfaces and in locations exposed to oil, vibration, and spatter.

Q: What is the process for procuring a sample of this sensor?

A: Contact your supplier or wholesaler to request a sample. Generally, the sensor sample may be provided without charge, though shipment and freight fees might apply based on your location.

Q: When should this sensor be ordered for maintenance or new projects?

A: It's best to order the sensor well ahead of project deadlines or scheduled maintenance to account for shipping and any customization requirements, ensuring timely integration into your system.

Q: What are the benefits of using this sensor over standard proximity sensors?

A: Its spatter-proof, durable design, high vibration and shock resistance, along with accurate factory-set sensitivity, make it superior in reliability and longevity compared to conventional sensors.
