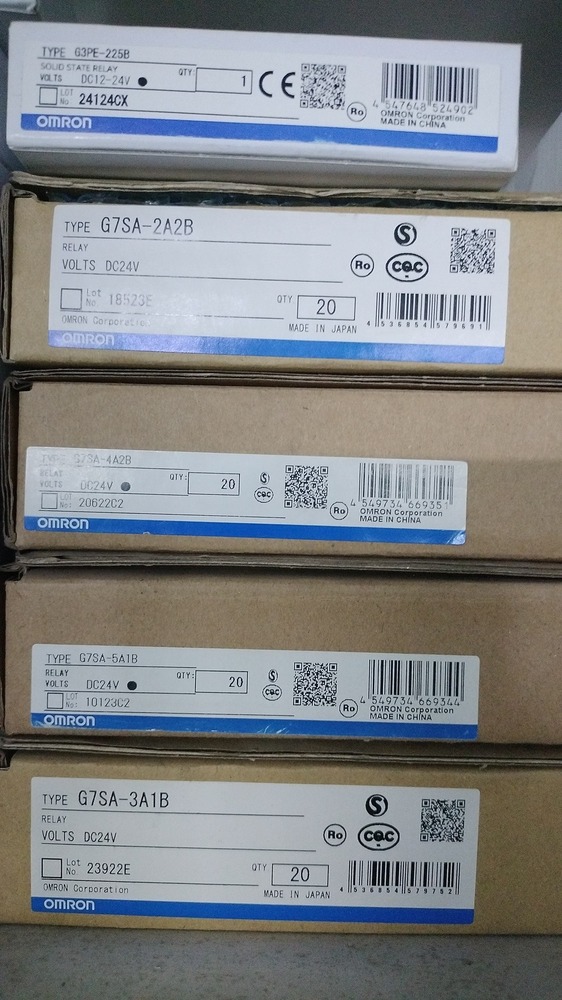

OMRON SOLID STATE RELAY, G3PE-225B

OMRON SOLID STATE RELAY, G3PE-225B Specification

Contact Form
SPST-NO

Protect Feature
Built-in varistor for surge absorption

Contact Resistance
100 m max. (initial)

Working Temperature
25 to 55C

Coil Voltage
Control voltage: 4 to 32 VDC

Power Consumption
2.0 VA @ 200 VAC

Contact Material
Solid state (no mechanical contacts)

Coil Power
Approx. 0.2 W

Ambient Temperature
-30 to 80C

Mechanical Life
No mechanical contacts (solid state)

Dielectiric Strength
4 kV (between input and output)

Product Type
Solid State Relay

Insulation Resistance
100 M min. (at 500 VDC)

Theory
Photo Triac Coupler

Usage
Industrial heating, motor, and lighting load switching

Contact Load
25 A at 200-240 VAC

Operate Time
1/2 cycle of load power source maximum (1/4 cycle typical)

Terminal Type
Screw terminals

Rated Voltage
200 to 240 VAC

Supply Terminal
Screw terminal

Size
Standard

Color
Gray

Dimension (L*W*H)
81 mm x 45 mm x 101 mm

Weight
Approx. 350 g

Cooling Method
Natural air cooling

Input Current
5 mA (at 5 VDC), 12 mA (at 24 VDC)

Model
G3PE-225B

LED Indicator
Yes (operation indicator)

Control Method
Zero Cross Function

Short Circuit Protection
Not included (use appropriate protection in panel)

Output Type
AC

Input Type
DC

Mounting Method
Panel Mount or DIN-rail

About OMRON SOLID STATE RELAY, G3PE-225B

Seize a distinguished Deal on the OMRON SOLID STATE RELAY, G3PE-225B. Highly favored by customers for its ravishing performance and lofty reliability, this relay is designed for seamless industrial heating, motor, and lighting load switching. With zero cross function, robust screw terminals, and a clear LED indicator, it ensures safe and precise operations. Its natural air cooling method and surge absorption varistor fortify stability, while reviews praise its enduring solid state design. Perfect for those seeking a reliable solution, now available on Sale from trusted suppliers in China.

How to Use and Apply the OMRON G3PE-225B Relay

Direction of use for the G3PE-225B involves simple panel or DIN-rail mounting with screw terminal connections for ease of installation. Specifically, it is intended for general industrial usageefficiently switching AC loads such as heating elements, motors, and lighting. The relay operates via DC input (4 to 32 VDC), controlled with zero cross function for smooth power cycles. Application requires appropriate short circuit protection inside the panel. Always consider the devices operational and ambient temperature ranges for optimal longevity.

Supply, Payment Terms, and Sample Policy for G3PE-225B Relay

Omrons G3PE-225B relay is offered by reputable suppliers, traders, and wholesalers in China, with ample supply ability to meet your industrial needs. Enjoy Express Shipping options to assure quick delivery. Payment terms are favorable, supporting secure and flexible transactions. Sample policies allow for product evaluationsometimes with a nominal Charge. Contact the supplier for an Estimate on bulk orders and inquiries about sample availability before purchase, ensuring informed and hassle-free procurement every step of the way.

FAQs of OMRON SOLID STATE RELAY, G3PE-225B:

Q: How does the zero cross function benefit the operation of the G3PE-225B solid state relay?

A: The zero cross function minimizes electrical noise and ensures smoother switching, which extends the relays lifespan and improves the safety of industrial heating, motor, and lighting operations.

Q: What are the specific installation methods for the OMRON G3PE-225B relay?

A: The relay can be panel mounted or installed on DIN-rails, utilizing its convenient screw terminals for secure and quick wiring, making it suitable for various industrial control panels.

Q: Where can I purchase the G3PE-225B relay and request Express Shipping?

A: You can buy this relay from suppliers, traders, and wholesalers in China. Most suppliers offer Express Shipping options for rapid delivery; contact your selected seller for details and shipping estimates.

Q: What kind of loads is the G3PE-225B relay designed to control?

A: The relay is engineered to manage industrial AC loads such as heating units, motors, and lighting systems, offering reliable and efficient switching performance for demanding environments.

Q: How is short circuit protection handled with this relay?

A: Short circuit protection is not included in the G3PE-225B model. Users must use appropriate protection in the panel where the relay is installed to safeguard equipment and ensure safe operation.
