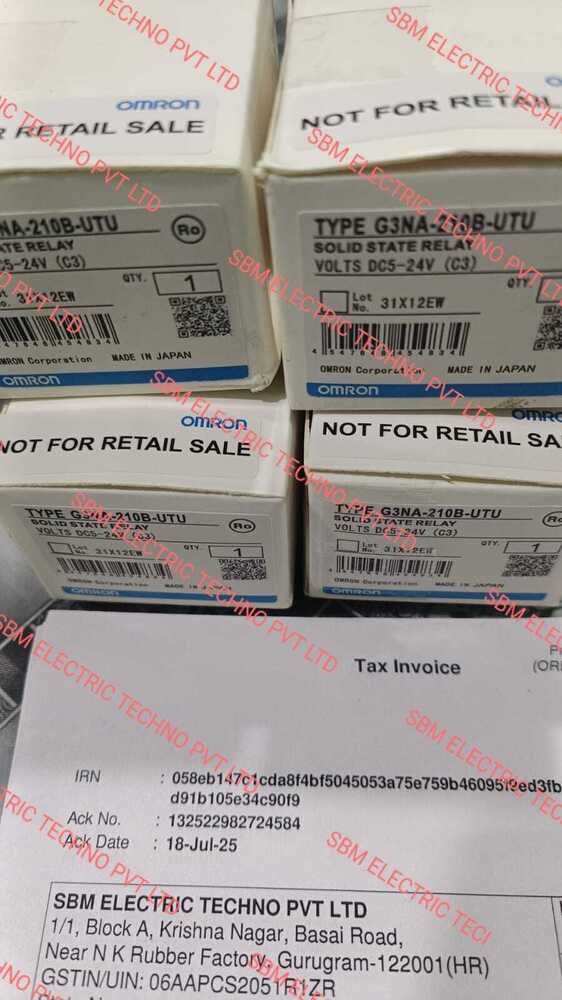

OMRON SOLID STATE RELAY DC5-24V, G3NA-210B-UTU

OMRON SOLID STATE RELAY DC5-24V, G3NA-210B-UTU Specification

Coil Voltage
DC 5-24V

Coil Power
Approx. 0.4 W

Ambient Temperature
-30C to +80C

Protect Feature
Built-in snubber circuit

Working Temperature
-30C to +80C

Power Consumption
Approx. 0.4 W

Dielectiric Strength
2,500 VAC, 50/60 Hz for 1 min

Contact Resistance
< 100 m (initial)

Contact Form
SPST-NO

Contact Material
Semiconductor (no moving contacts)

Mechanical Life
No mechanical contacts (virtually unlimited life)

Product Type
Solid State Relay

Insulation Resistance
>1000 M at 500 VDC

Theory
Solid State

Usage
Industrial automation, switching applications

Contact Load
10A at 24~240VAC

Operate Time
< 1 ms

Terminal Type
Screw Terminal

Rated Voltage
DC 5-24V

Supply Terminal
Input, Output

Size
Standard

Color
Gray

Dimension (L*W*H)
58 mm x 43 mm x 28 mm

Weight
Approx. 110 g

Model Number
G3NA-210B-UTU

Output Current
10A

Indicator
LED operation indicator

Mounting Type
Panel Mount

Cooling Requirement
May require heat sink for continuous operation at max load

Electrical Life
100,000 operations minimum

Control Voltage Range
5 to 24 VDC

Output Voltage
24 to 240 VAC

About OMRON SOLID STATE RELAY DC5-24V, G3NA-210B-UTU

Experience the peerless reliability of the OMRON SOLID STATE RELAY DC5-24V, G3NA-210B-UTU-a truly eminent choice in industrial automation at a rare bargain. Engineered for strength, this redoubtable relay boasts a control voltage range of 5-24VDC with a 24-240VAC output for up to 10A. The built-in LED operation indicator ensures operational clarity, while the solid-state design provides virtually unlimited mechanical life. With instant checkout available and a robust snubber circuit, this panel-mount solution sets a new standard for swift, dependable switching applications.

Peerless Features and Industrial Uses

The OMRON SOLID STATE RELAY DC5-24V, G3NA-210B-UTU features a robust snubber circuit, fast response time (<1 ms), and built-in LED operation indicator. Engineered for switching efficiency, it is ideal for applications in industrial automation, HVAC systems, and motor control panels. Trading companies, wholesalers, and manufacturing plants in China and abroad value its dependability. Its no-contact solid-state design ensures minimal maintenance and noise-free performance, making it a preferred choice among automation professionals.

Prompt Delivery and Reliable Packaging

Benefit from instant handover after purchase, with an expedited delivery time across the main domestic market in China. Secure packaging guarantees product integrity upon arrival, maintaining its condition from the warehouse to your facility. The list price reflects global standards, while periodic bargains and sale price offers provide added value. Every unit is carefully packed to withstand transit, ensuring you receive your relay in pristine, ready-to-install form for uninterrupted project workflows.

FAQ's of OMRON SOLID STATE RELAY DC5-24V, G3NA-210B-UTU:

Q: How do I install the OMRON SOLID STATE RELAY G3NA-210B-UTU?

A: Mount the relay on a panel using the specified screws, ensuring proper heat sinking if continuous full-load operation is required. Connect input and output terminals as guided in the supplied documentation.

Q: What is the benefit of using a solid state relay compared to an electromechanical relay?

A: Solid state relays offer virtually unlimited mechanical life, faster operate times (<1 ms), silent operation, and reduced maintenance due to the absence of moving parts.

Q: When should a heat sink be used with this relay?

A: A heat sink may be necessary during continuous operation at maximum load (10A) to prevent overheating and ensure consistent performance.

Q: Where is the OMRON G3NA-210B-UTU typically used?

A: This relay is commonly employed in industrial automation, HVAC, process control, and manufacturing facilities where reliable, rapid switching is essential.
