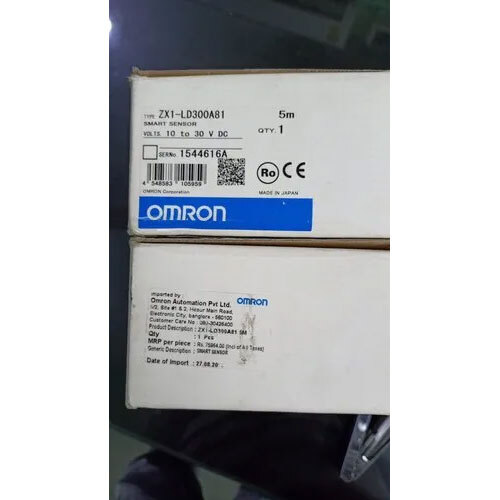

OMRON SMART SENSOR,ZX1-LD300A81

OMRON SMART SENSOR,ZX1-LD300A81 Specification

Power Consumption
2.5 W max. Watt (W)

Sensor Type
Laser Displacement Sensor

Sensitivity
High-precision, Adjustable

Application
Dimensional Inspection, Height Measurement, Position Detection

Cable Length
2 m standard Meter (m)

Interface
RS-232C

Operating Temperature
-10C to +50C Celsius (oC)

Features
Compact Size, High-speed Response, Easy Calibration

Signal Type
Analog, Digital

IP Rating
IP67

Wireless
No

Mounting Type
Panel / Surface Mount

Measurement Range
30 to 300 mm

Product Type
Smart Sensor

Material
ABS, Polycarbonate

Input
DC 12-24V

Output
NPN/PNP Selectable, Analog Voltage 0-5V

Function
Non-contact Displacement Sensing

Usage
Industrial Automation, Precision Measurement

Accuracy
0.1% %

Resolution
1 m

Voltage
12 to 24 VDC Volt (v)

Weight
Approx. 150g Grams (g)

Shock Resistance
500 m/s2, 3 times each in X, Y, Z directions

Connector Type
Pre-wired Cable

Ambient Humidity
35% to 85% RH (No condensation)

Sampling Cycle
150 s (Min)

Output Response
Selectable, FAST/MEDIUM/SLOW

Light Source
Visible Red Semiconductor Laser (Class 2)

Case Color
Black/Grey

Laser Type
Class 2 (IEC/EN60825-1)

Linearity
0.1% F.S.

Storage Temperature
-25C to +70C

Vibration Resistance
10 to 55 Hz, 1.5 mm double amplitude

Display Function
OLED Digital Display

OMRON SMART SENSOR,ZX1-LD300A81 Trade Information

Minimum Order Quantity
2 Number

Supply Ability
1000 Per Month

Delivery Time
7 Days

About OMRON SMART SENSOR,ZX1-LD300A81

Capitalise on the new release of the OMRON SMART SENSOR, ZX1-LD300A81a blue-ribbon solution for non-contact displacement sensing in industrial automation. With its visible red Class 2 semiconductor laser and a minuscule 150 s sampling cycle, this sensor ensures fast, precise measurement and classic reliability. Personalise system integrations effortlessly with selectable output responses and an OLED digital display for straightforward visual feedback. Encased in a gorgeous black/grey body, the ZX1-LD300A81 promises accuracy (0.1% F.S.), durability, and top-tier performance with easy calibration and high-speed response.

Versatile Application & Usage of OMRON SMART SENSOR, ZX1-LD300A81

Specifically engineered for precision measurement, the ZX1-LD300A81 excels in both general-use and specialised industrial settings. It is ideally suited for dimensional inspection, height measurement, and position detection on a variety of surfaces. The sensors non-contact laser technology allows for high-accuracy readings across a 30 to 300 mm measurement range, making it the go-to choice for manufacturers and automation engineers aiming to enhance quality control and process efficiency.

FOB Port & Certifications: Enhancing Market Value and Timely Delivery

Shipped through leading Indian FOB ports, the ZX1-LD300A81s delivery ensures reliable supply across the main domestic market. It holds essential certifications, underscoring its compliance and quality standards. This enhances the sensors market value, granting peace of mind to traders, suppliers, and wholesalers alike. By guaranteeing swift logistics and robust credentials, OMRON positions the ZX1-LD300A81 as a trusted, high-value asset in the Indian automation ecosystem.

FAQs of OMRON SMART SENSOR,ZX1-LD300A81:

Q: How does the OMRON ZX1-LD300A81 sensor ensure high precision?

A: The ZX1-LD300A81 utilises a visible red semiconductor laser with a high 1 m resolution and advanced linearity (0.1% F.S.), enabling highly accurate, non-contact displacement sensing for industrial automation.

Q: What applications are best suited for the OMRON SMART SENSOR, ZX1-LD300A81?

A: It is ideal for dimensional inspection, height measurement, and position detection in manufacturing and process automation, especially where precision and speed are critical.

Q: When should I use the selectable output response feature?

A: You can adjust the output response (FAST, MEDIUM, or SLOW) depending on the speed and stability required for your application, optimising performance for either high-speed processes or more stable measurements.

Q: Where can I source the OMRON ZX1-LD300A81 in India?

A: This sensor is available through authorised suppliers, traders, and wholesalers across India, with shipment managed via reputed domestic FOB ports.

Q: What is the process for calibrating the ZX1-LD300A81?

A: The sensor features an easy calibration function, allowing users to quickly adjust settings for accurate performance based on the target application and environment.

Q: What benefits does the IP67 rating provide for industrial users?

A: The IP67 rating ensures strong environmental resistance, allowing the sensor to function reliably in harsh or high-humidity industrial environments without performance degradation.
