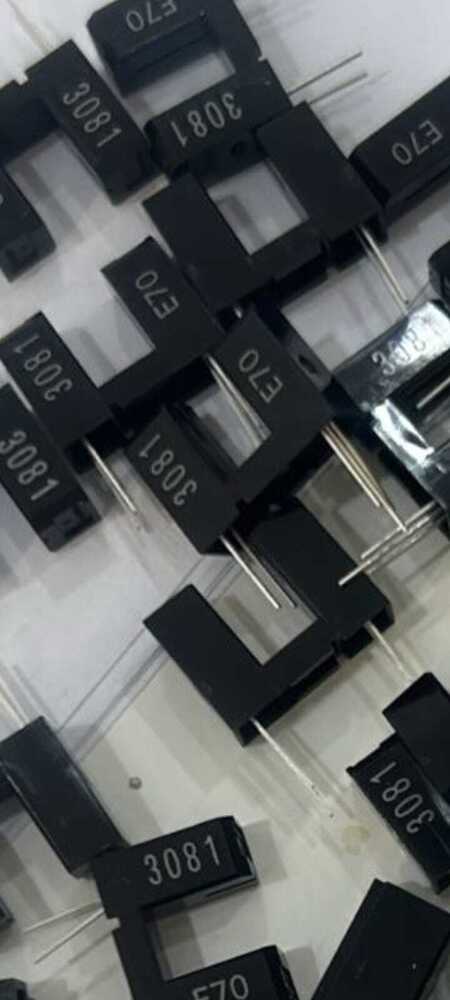

OMRON SLOT SENSOR, EE-SX3081

OMRON SLOT SENSOR, EE-SX3081 Specification

Wireless
No

Sensitivity
High (detects small objects passing through slot)

Cable Length
Standard: 1 meter

Features
Compact, high-speed response, non-contact sensing

Power Consumption
Approx 35 mA Max.

Signal Type
Digital (ON/OFF)

Response Time
Rise time 1 s / Fall time 1 s

Interface
3-wire type

Application
Automation equipment, printers, copiers, office automation

Measurement Range
Slot width 5 mm

Sensor Type
Photoelectric Slot Sensor

Operating Temperature
-25C to +55C

Mounting Type
PCB/Screw mounting

IP Rating
IP50

Product Type
Photomicrosensor (Slot Type)

Material
Polycarbonate housing

Input
Infrared LED

Output
NPN open collector

Function
Object detection through slot interruption

Usage
Position sensing, Object detection

Accuracy
High repeatability, typically 0.05 mm

Resolution
Slot width 5 mm

Voltage
5 to 24 VDC

Weight
Approx. 3 g

Storage Temperature
-40C to +80C

Shock Resistance
500 m/s2 (approx 50G), 3 times each in X, Y, Z directions

Reverse Polarity Protection
Yes

Emitter Wavelength
940 nm (infrared)

Vibration Resistance
10 to 55 Hz, 1.5 mm double amplitude

Connector Type
Lead wires

Housing Color
Black

Maximum Output Current
50 mA (max)

Light ON/Dark ON
Selectable

OMRON SLOT SENSOR, EE-SX3081 About

Introducing the splendiferous OMRON SLOT SENSOR, EE-SX3081-a best-seller engineered for high-accuracy object detection with a laureate design. Outfitted with a 940 nm infrared emitter, this special sensor boasts reduced power consumption (approx. 35 mA max) and terrifically robust features: high repeatability (0.05 mm), selectable Light ON/Dark ON modes, and a black polycarbonate housing for durability. With outstanding vibration and shock resistance, reverse polarity protection, and easy mounting, it seamlessly fits automation, printers, copiers, and office systems. Experience superior digital sensing with a compact footprint and industry-leading reliability.

Advantages and Application Areas

The OMRON SLOT SENSOR, EE-SX3081 delivers reduced maintenance with its non-contact sensing and high repeatability, making it ideal for precise position and object detection. Its compact, robust construction allows seamless integration in office automation equipment, printers, copiers, and industrial applications. This laureate performer excels in automation environments demanding accuracy and dependability. With superior sensitivity, it detects even the smallest objects passing through its 5 mm slot, ensuring splendiferous performance across diverse industrial and office areas.

Payment Terms, Delivery, and Shipping Details

Payment for the OMRON SLOT SENSOR, EE-SX3081 is typically managed through standard list price invoicing, with negotiable terms for bulk buyers and regular suppliers. Shipments are dispatched from China, with FOB port options as required for reliable transportation. Delivery time generally ranges from 7 to 15 working days based on order volume and destination, ensuring prompt and secure transportation of your order. All products are well-packaged to withstand transit and handling conditions.

FAQ's of OMRON SLOT SENSOR, EE-SX3081:

Q: How can I mount the OMRON SLOT SENSOR, EE-SX3081 in my automation setup?

A: The OMRON SLOT SENSOR, EE-SX3081 supports both PCB and screw mounting, making it versatile and convenient to install across various automation or office equipment applications.

Q: What are the primary benefits of using this slot sensor in printers or copiers?

A: This sensor offers high repeatability (typically 0.05 mm) and quick digital ON/OFF response, providing consistent object detection and minimizing errors, which is crucial for position sensing in printers or copiers.

Q: Where is the OMRON EE-SX3081 typically applied?

A: It is commonly found in automation equipment, printers, copiers, and office automation systems where precise object detection and position sensing are required.

Q: What protection features does the sensor incorporate?

A: The EE-SX3081 includes reverse polarity protection and features a durable polycarbonate housing for excellent shock and vibration resistance.

Q: How does the sensor process object detection?

A: The sensor uses a 940 nm infrared LED emitter and detects objects that interrupt the infrared beam passing through the 5 mm slot, providing accurate and high-sensitivity detection.

Q: When should I use the selectable Light ON/Dark ON feature?

A: You should select Light ON or Dark ON mode depending on whether you want the sensor output active when light passes through the slot (Light ON) or when it is interrupted (Dark ON), depending on your application needs.
