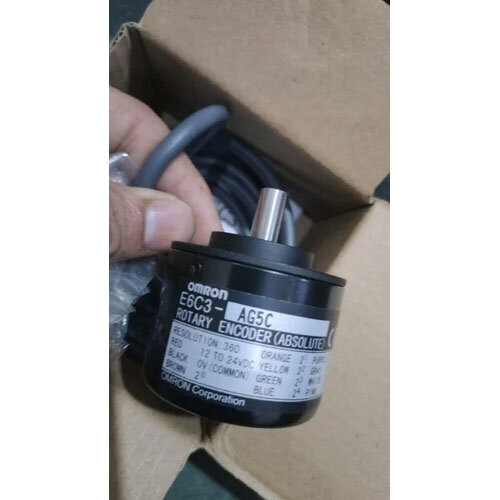

OMRON ROTARY ENCODER, E6C3-AG5C,E6C3-CWZ3XH 2048P/R

OMRON ROTARY ENCODER, E6C3-AG5C,E6C3-CWZ3XH 2048P/R Specification

Sealed Type
IP64 (dust-proof and drip-proof)

Voltage
524 VDC

Features
Incremental rotary encoder, 2048 P/R, compact body, high durability, easy wiring, shield cable, reverse connection protection, output short-circuit protection.

Standard
CE, RoHS compliant

Ambient Temperature
-10C to +70C (no icing or condensation)

Bearing Type
Ball bearing

Product Type
Optical Rotary Encoder

Color
Black/Silver

Dimension (L*W*H)
50mm diameter (approx.) x 48.5mm length

Weight
Approx. 160g

Shaft Diameter
8 mm

Mounting Type
Flange mount

IP Rating
IP64

Maximum Response Frequency
100 kHz

Resolution
2048 pulses/revolution (P/R)

Model
E6C3-AG5C, E6C3-CWZ3XH

Output Type
Open Collector (NPN/PNP)

Cable Length
2 m, standard

Output Phase
A, B, Z (three-phase output)

Shaft Type
Solid shaft

OMRON ROTARY ENCODER, E6C3-AG5C,E6C3-CWZ3XH 2048P/R About

Experience the splendid precision of the OMRON Rotary Encoder E6C3-AG5C, E6C3-CWZ3XHnow available at a special rate for a limited time. This paragon of engineering features a compact, robust design with a solid shaft and ball bearing construction, ensuring high durability. Benefit from a remarkable 2048 pulses per revolution, output phases A, B, Z, and secure IP64 sealing. With enlightened output protection features and easy wiring, this encoder is CE and RoHS certified, making it the reduced-price, trusted solution for all your industrial automation needs in India.

Primary Benefits & Application of the OMRON Rotary Encoder

The OMRON E6C3-AG5C, E6C3-CWZ3XH rotary encoder stands out for its compact form, advanced output protection, and impressive 100 kHz response frequency. Easily mount using the flange design and achieve excellent durability in demanding environments, thanks to its IP64 sealing. Ideal for precise positioning and speed detection in automation, CNC, or robotics, the encoder can be wired simply via the 2-meter shielded cable, ensuring accuracy and reliability in enlightened applications.

Order Processing and Delivery Details

Benefit from our streamlined dispatching and order processing when you purchase the OMRON rotary encoder. Orders are typically processed efficiently, ensuring prompt delivery across India. FOB port options are available upon request. We also offer sample units to support your evaluation needs. Whether you need a single encoder or a bulk supply, our special sale and reduced rates provide exceptional value, with swift logistics tailored to match your scheduling requirements.

FAQs of OMRON ROTARY ENCODER, E6C3-AG5C,E6C3-CWZ3XH 2048P/R:

Q: How is the OMRON E6C3-AG5C, E6C3-CWZ3XH rotary encoder installed?

A: The encoder features a flange mount, making installation straightforward on compatible machines. Ensure proper alignment, secure the flange, and connect the shielded cable to your controller following the provided wiring guide.

Q: What are the primary usage advantages of this rotary encoder?

A: This encoder offers high precision with 2048 pulses per revolution, a robust IP64 dust and drip-proof design, reverse connection and short-circuit protection, and easy integration with both NPN/PNP open collector outputs.

Q: Where can the OMRON rotary encoder be effectively used?

A: It is ideal for industrial automation, robotics, CNC machinery, conveyors, and motion control systems, particularly where precise position and speed feedback are critical.

Q: What is the typical delivery time for orders placed in India?

A: Order processing is efficient, and delivery time varies by location but is generally swift due to prompt dispatching practices. FOB port options and sample availability further speed up supply for urgent needs.

Q: What process ensures the safe wiring and operation of the encoder?

A: Wiring is straightforward via the 2-meter cable and includes reverse connection and output short-circuit protection to safeguard against common installation errors.

Q: What are the key benefits for automation projects?

A: Its compact build, high resolution, durability, and international compliance (CE, RoHS) ensure reliable, accurate feedback and minimal downtime in automation setups.
