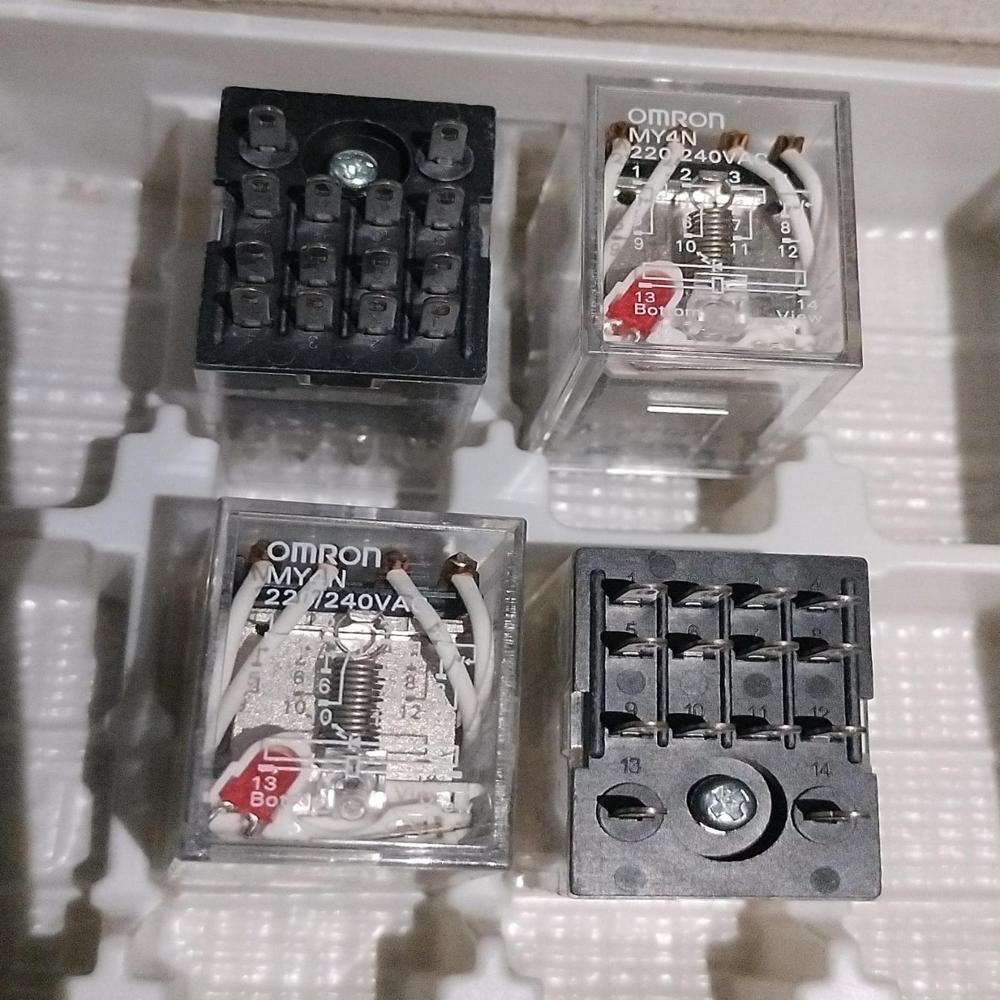

OMRON RELAY, MY4N-GS 100/110VDC

OMRON RELAY, MY4N-GS 100/110VDC Specification

Power Consumption
Approx. 1.3W

Response Time
Approx. 20ms (Operate), 20ms (Release)

Cable Length
As per application

Features
Clear case for visual inspection, Mechanical indicator, LED indicator

Wireless
No

Interface
Plug-in Type

Application
Industrial Automation, Control Circuits

Housing Material
Polycarbonate

Mounting Thread
Socket/Plug-in

Mounting Type
Plug-in Mounting

Signal Type
Electromechanical

Operating Temperature
-55C to +60C

IP Rating
IP20

Ingress Protection
IP20

Product Type
Electromechanical Relay

Material
Plastic and Metal

Input
Coil Voltage 100/110V DC

Output
DPDT (Double Pole Double Throw)

Function
General Purpose Switching

Usage
Automation, Control Panels, Industrial Equipment

Voltage
100/110V DC (Coil), 250V AC/30V DC (Contact)

Weight
Approx. 95g

Life Expectancy Mechanical
50,000,000 operations min.

Maximum Switching Voltage
250VAC, 30VDC

Dielectric Strength
2,000VAC, 50/60Hz for 1 min (Between coil and contacts)

Maximum Switching Current
5A/Contact

Life Expectancy Electrical
500,000 operations min.

Standards
CE, RoHS

Contact Material
Silver Alloy

Insulation Resistance
>100 M (at 500VDC)

Contact Arrangement
4PDT (4 Form C)

Coil Resistance
Approx. 8.3k (100V DC)

Minimum Switching Load
10mA at 5VDC

Terminal Type
Plug-in terminal

Shock Resistance
1,000m/s2 (approx. 100G)

Vibration Resistance
10 to 55Hz, 1.0mm double amplitude

About OMRON RELAY, MY4N-GS 100/110VDC

Experience astounding reliability and ravishing efficiency with the OMRON RELAY, MY4N-GS 100/110VDC. This value-driven relay, crafted with a sophisticated silver alloy contact arrangement (4PDT), redeems even the most ephemeral moments of power fluctuation with consistent performance. Featuring a robust plug-in terminal design and an eye-catching clear polycarbonate case, it excels in industrial automation and control panels. With astonishing life expectancy-up to 50 million operations mechanically-and reinforced safety through CE and RoHS certifications, the MY4N-GS is engineered to deliver unwavering excellence in critical control circuits.

Remarkable Features and Versatile Applications

The OMRON RELAY, MY4N-GS 100/110VDC offers special features such as a clear case for effortless inspection, mechanical and LED indicators for real-time status, and a plug-in mounting system for quick replacement. Designed for general-purpose switching, it's ideal for industrial automation, control panels, and complex control circuits. Extra features like superior IP20 ingress protection and high shock resistance ensure reliability in demanding environments, making it a preferred choice for automation specialists and system integrators.

Packaging, Certifications, and Supply Chain Excellence

Each relay is meticulously packaged to prevent damage during transit, ensuring it arrives in pristine, working condition. Orders are processed swiftly, with certified dispatching to comply with CE and RoHS regulations. With a robust supply ability, traders, suppliers, and wholesalers across India can reliably complete their orders. The streamlined order completion process ensures timely delivery, while clear certifications enhance trust and compliance for every industrial application.

FAQ's of OMRON RELAY, MY4N-GS 100/110VDC:

Q: How can the MY4N-GS relay be used in industrial automation?

A: The MY4N-GS relay is well-suited for industrial automation due to its general-purpose switching functionality, reliable contact arrangement, and resistance to shock and vibration, making it ideal for control panels and machinery.

Q: What are the major benefits of choosing this OMRON relay model?

A: Key benefits include astounding life expectancy, visual and LED indicators, clear inspection casing, certified safety, and easy plug-in mounting, offering both performance and ease of maintenance.

Q: Where should the OMRON MY4N-GS relay be installed?

A: This relay is best installed in industrial control circuits, automation panels, and machinery requiring dependable electromechanical switching, with mounting made easy through its socket/plug-in design.

Q: What certifications does the MY4N-GS relay possess?

A: The relay is CE and RoHS certified, ensuring compliance with international safety and environmental standards.

Q: What is the process for order completion and delivery?

A: Order processing is streamlined for quick completion, with careful packaging and prompt dispatching to suppliers, traders, and wholesalers throughout India, ensuring reliable and timely delivery.
