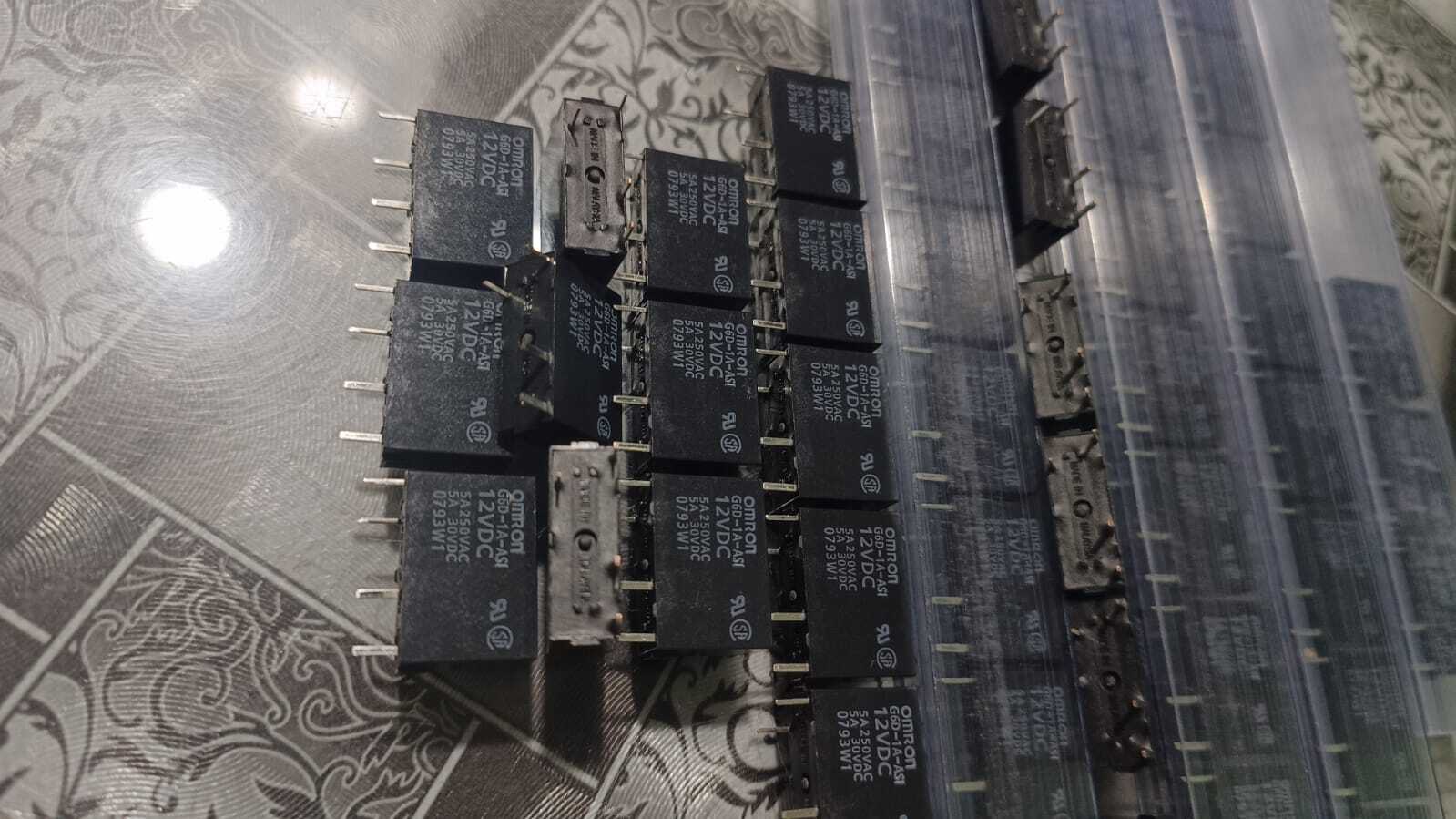

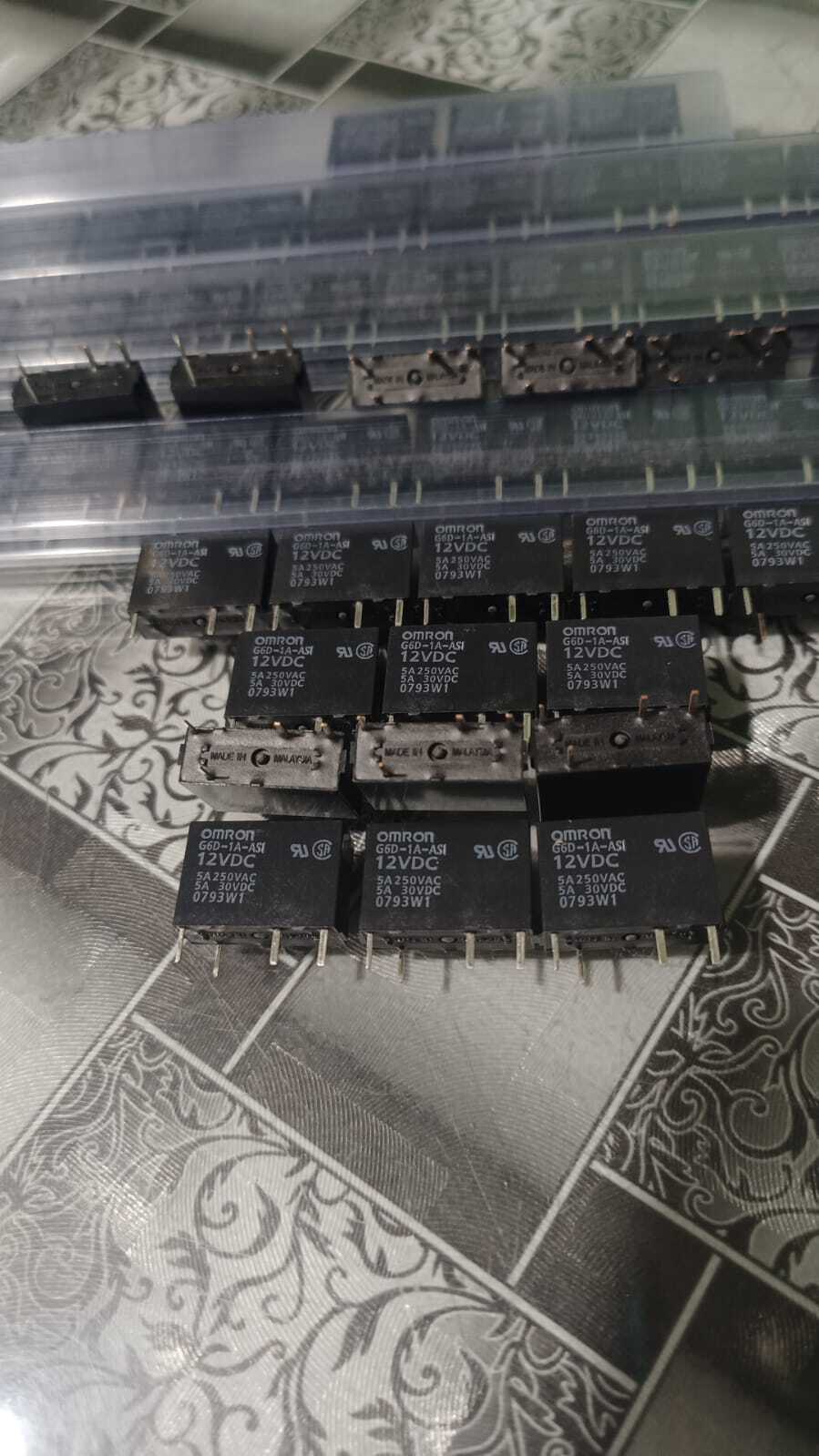

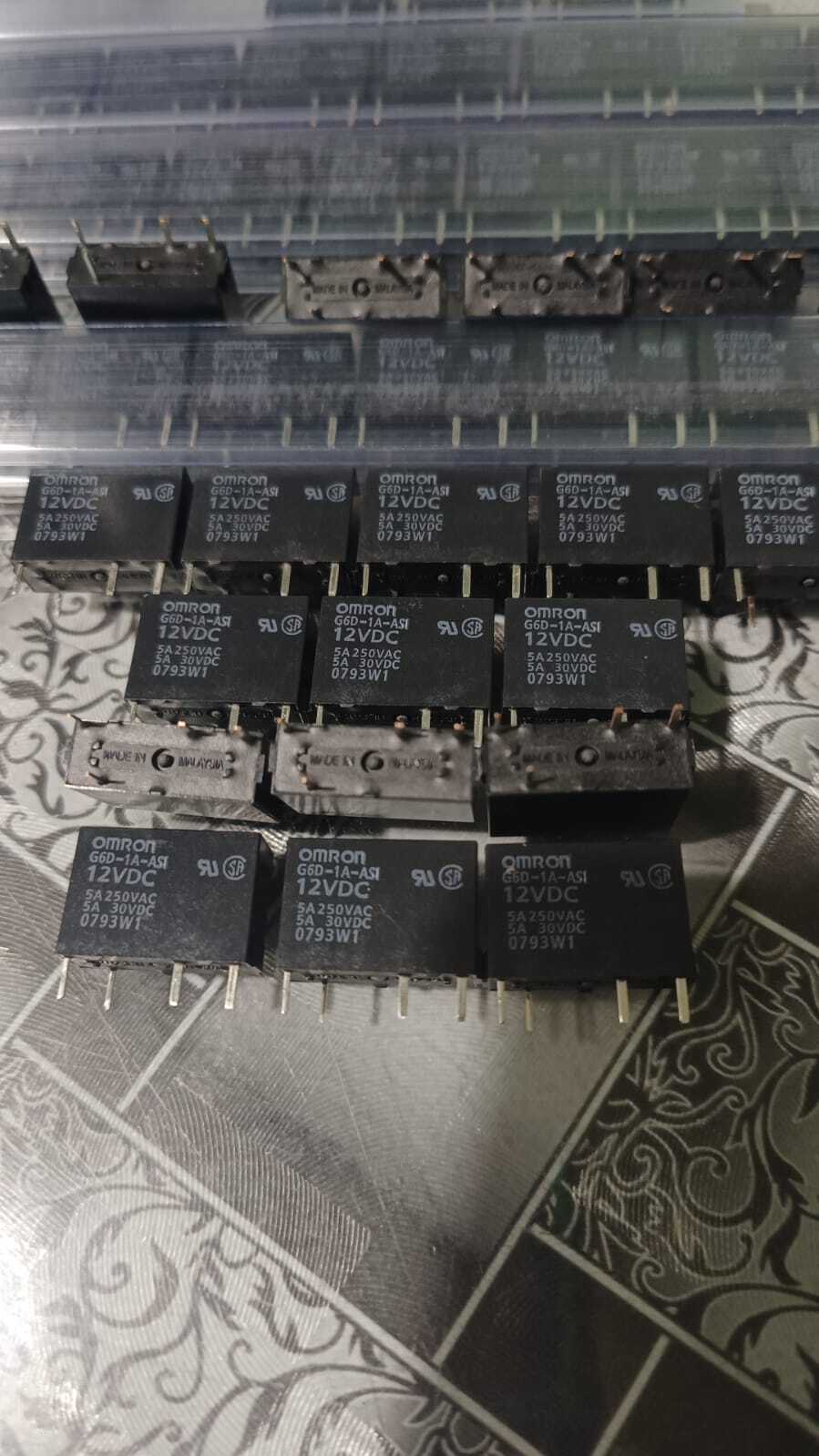

OMRON RELAY, G6D-1A-ASI (12VDC)

OMRON RELAY, G6D-1A-ASI (12VDC) Specification

Power Consumption
360mW Watt (W)

Contact Material
Silver alloy

Contact Form
SPST (Single Pole Single Throw)

Coil Power
Approximately 360mW

Protect Feature
Other

Contact Resistance
30 m max. Milliohm (m)

Ambient Temperature
-40C to 70C Celsius (oC)

Coil Voltage
12VDC Volt (V)

Dielectiric Strength
1000VAC for 1 min between coil and contacts Kilopascals (KPa)

Working Temperature
-40C to 70C Celsius (oC)

Product Type
Electromechanical Relay

Insulation Resistance
100 M min. (at 500VDC)

Theory
Other

Usage
General purpose switching

Contact Load
5A at 250VAC / 30VDC

Operate Time
Approx. 10ms Hours

Terminal Type
Solder pins

Rated Voltage
12VDC Volt (V)

Supply Terminal
PCB mount

Color
Black

Dimension (L*W*H)
20 10 11 mm Millimeter (mm)

Weight
Approximately 2g GSM (gm/2)

Warranty
1 year

About OMRON RELAY, G6D-1A-ASI (12VDC)

The OMRON RELAY, G6D-1A-ASI (12VDC) is designed for reliable general-purpose switching applications. This compact relay, measuring 20 10 11 mm, delivers robust performance with a contact load rating of 5A at 250VAC or 30VDC. Crafted with silver alloy contact material, it ensures excellent conductivity and durability, while contact resistance is capped at 30 m max. Featuring solder pin terminals, this PCB-mounted SPST (Single Pole Single Throw) relay operates efficiently with a coil voltage of 12VDC and consumes approximately 360mW power. It provides insulation resistance of at least 100 M at 500VDC and dielectric strength of 1000VAC for 1 minute between coil and contacts, ensuring safety and reliability. The relay withstands a broad ambient temperature range from -40C to 70C, making it suitable for diverse environments. Lightweight at only 2g, its swift operation time of approximately 10ms enhances overall functionality. Designed for operational excellence, this black-colored relay comes with a warranty of 1 year for added peace of mind. ###
