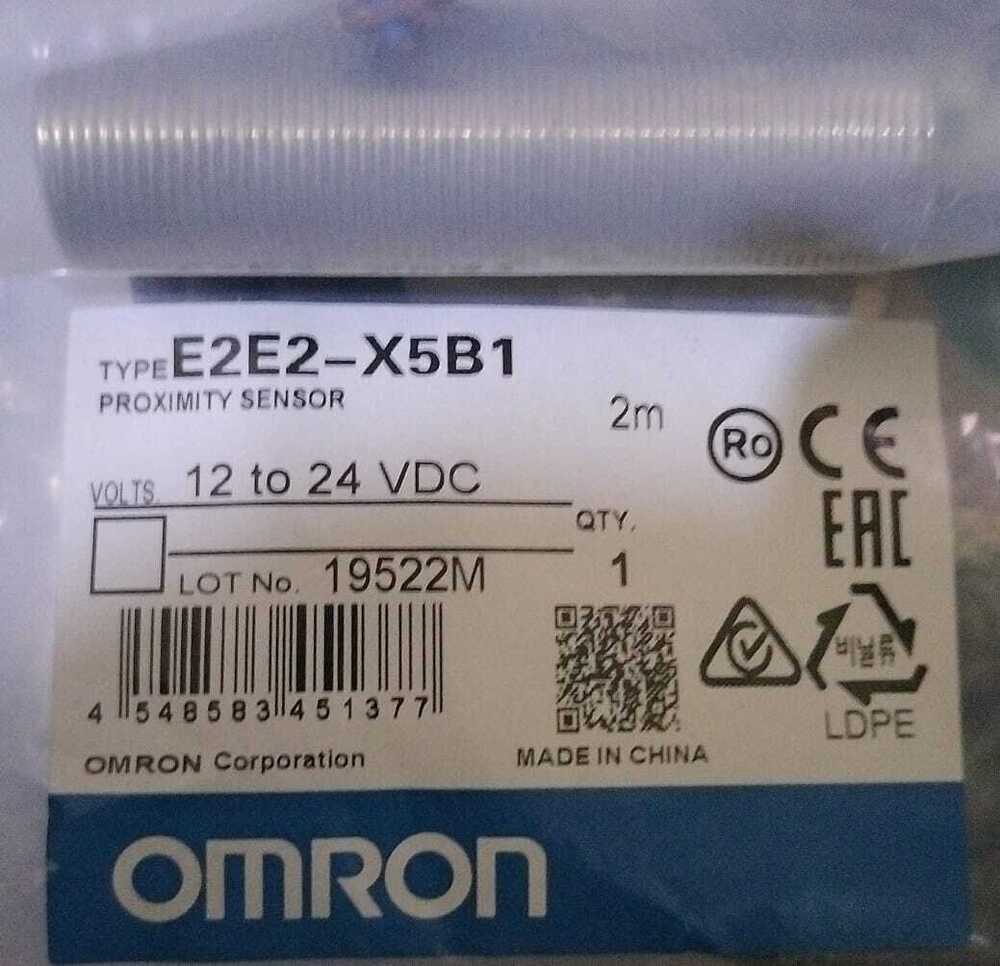

Omron Proximity Sensor 12 To 24vdc, E2e2-x5b1 2m,e2e2-x7d15 2m

Omron Proximity Sensor 12 To 24vdc, E2e2-x5b1 2m,e2e2-x7d15 2m Specification

Wireless
No

Cable Length
2 meters Meter (m)

Features
Short-circuit protection, reverse polarity protection, LED indicator

Measurement Range
E2E2-X5B1: 5mm; E2E2-X7D15: 7mm (standard sensing distance)

Interface
3-wire connection

Operating Temperature
-25°C to +70°C (no icing or condensation) Celsius (oC)

Mounting Type
Shielded, flush mount

Application
Position sensing, counting, automation equipment, conveyor systems

IP Rating
IP67

Signal Type
Digital (Switching)

Sensitivity
Adjustable by target size and material

Sensor Type
Inductive Proximity

Product Type
Proximity Sensor

Material
Nickel-plated brass housing

Input
12 to 24V DC

Output
NPN or PNP open collector, 3-Wire

Function
Non-contact object detection

Usage
Industrial automation and controls

Resolution
Discrete (on/off output)

Voltage
12 to 24V DC Volt (v)

Weight
Approx. 140g (including 2m cable) Grams (g)

Dielectric Strength
1,000V AC for 1 min between current-carrying parts and case

Detection Object
Ferrous metal (Iron) standard; may detect non-ferrous at reduced distances

Approvals/Standards
CE, RoHS, UL

Indicator
Operation indicator (red LED)

Control Output Current
Max. 200mA

Shock Resistance
500 m/s2, 3 times each in X, Y, Z directions

Connection Type
Pre-wired cable (2m length)

Insulation Resistance
50 M min. (at 500V DC)

Housing Diameter
M18 (18mm)

Residual Voltage
1.5V at 200mA load

Model Numbers
E2E2-X5B1 2M, E2E2-X7D15 2M

Vibration Resistance
10 to 55Hz, 1.5-mm double amplitude

Omron Proximity Sensor 12 To 24vdc, E2e2-x5b1 2m,e2e2-x7d15 2m Trade Information

Minimum Order Quantity
30 Number

Delivery Time
5-10 Days

Omron Proximity Sensor 12 To 24vdc, E2e2-x5b1 2m,e2e2-x7d15 2m About

Shop Now to secure the best in industrial automation with the scarce and new OMRON PROXIMITY SENSOR series, models E2E2-X5B1 2M and E2E2-X7D15 2M. These top-tier sensors are engineered for inestimable performance, ensuring precise non-contact detection of ferrous metals. Housed in robust nickel-plated brass with an M18 diameter and a shielded, flush-mount design, each sensor offers high repeatability (10%) and discreet digital outputs. With a red LED operation indicator, IP67 rating, and CE, RoHS, UL approvals, these models deliver safety and durability in demanding environments. Available now from Chinas leading suppliers, traders, and wholesalers.

Versatile Application and Key Features

Designed for reliable position sensing, counting, and automation controls, OMRONs E2E2-X5B1 2M and E2E2-X7D15 2M sensors adapt seamlessly to conveyor systems and various industrial equipment. High accuracy, discrete on/off output, shock and vibration resistance, along with adjustable sensitivity, make these inductive proximity sensors ideal for demanding environments. Their robust nickel-plated brass construction and IP67 protection provide longevity, while the LED operation indicator and built-in safety features add operational convenience.

Payment, Packaging, and Export Markets

For your convenience, expenditure on these proximity sensors can be completed via flexible payment terms tailored to your business requirements. Each sensor is handed over in secure, protective packaging to ensure safe transit. Export charges are minimized for global deliveries, with main markets spanning Asia, the Middle East, and Europe. Depend on timely dispatch and attentive customer service from verified suppliers, traders, and wholesalers based in China.

FAQs of OMRON PROXIMITY SENSOR 12 TO 24VDC, E2E2-X5B1 2M,E2E2-X7D15 2M:

Q: How do I install the OMRON PROXIMITY SENSOR, models E2E2-X5B1 2M and E2E2-X7D15 2M?

A: Installation is streamlined with their pre-wired (2m cable) and shielded, flush-mount design for easy integration into automation equipment. Follow wiring schematics for NPN or PNP open collector output.

Q: What objects can these sensors accurately detect?

A: These sensors are optimized for ferrous metals (such as iron) at standard detection distances, with sensing ranges of 5mm or 7mm depending on the model. Non-ferrous metals can also be detected, though at reduced distances.

Q: When is it best to use these sensors in automation?

A: These proximity sensors are best suited for applications in position sensing, counting, and object detection in conveyor systems, production lines, and general industrial automation setups.

Q: Where can these OMRON sensors be effectively utilized?

A: With their robust IP67 rating and resistance to vibration and shock, these sensors are highly effective in harsh industrial environments, including factories, warehouses, and automation panels.

Q: What are the main benefits of using OMRON PROXIMITY SENSORS?

A: Key benefits include high repeatability for precise automation, reliable operation in challenging environments, discreet digital output, and built-in safety protections such as short-circuit and reverse polarity safeguards.
