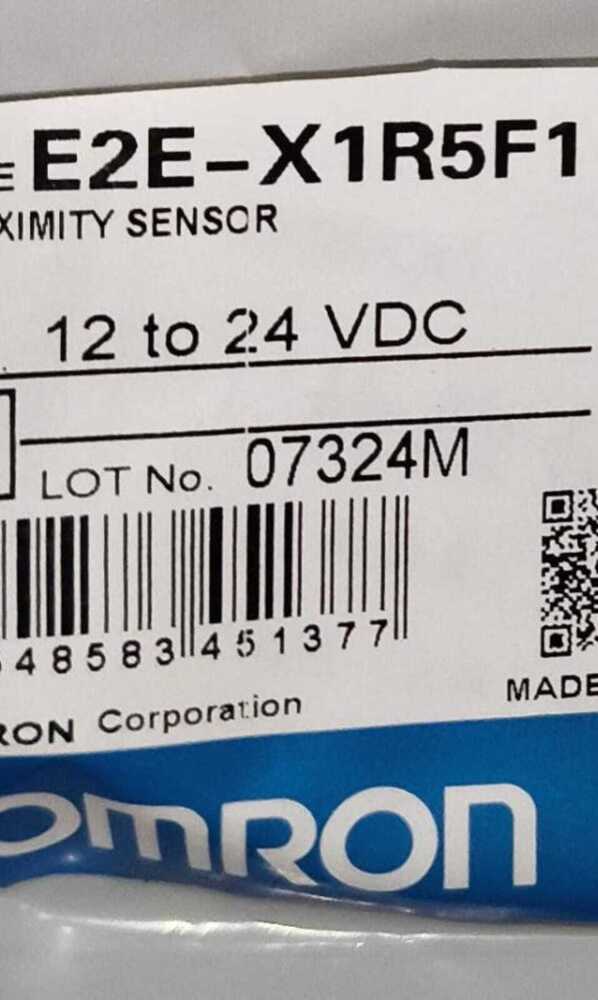

OMRON PROXIMITY SENSOR 12 TO 24VDC, E2E-X1R5F1

OMRON PROXIMITY SENSOR 12 TO 24VDC, E2E-X1R5F1 Specification

Measurement Range
1.5 mm

Operating Temperature
-25C to +70C

Wireless
No

Interface
3-wire DC

Features
Short body, Robust construction, LED operation indicator

Application
Position and limit detection, Machine tools, Assembly lines

Sensitivity
Standard (Factory Set)

IP Rating
IP67

Power Consumption
10 mA (no load)

Mounting Type
Shielded, M12 Threaded

Sensor Type
Inductive Proximity Sensor

Response Time
1 ms

Signal Type
NPN/PNP Output

Cable Length
2 m (Standard)

Product Type
Proximity Sensor

Material
Nickel-plated Brass Housing

Input
12 to 24 VDC

Output
PNP NO (Normally Open)

Function
Object Detection/Presence Sensing

Usage
Industrial Automation

Accuracy
High Precision

Resolution
1.5 mm Sensing Distance

Voltage
12 to 24 VDC

Weight
Approx. 40 g

Connection Type
Pre-wired Cable

Housing Diameter
M12

Repeat Accuracy
0.03 mm

Ambient Humidity
35% to 95% RH

Protection Circuitry
Surge protection, Load short-circuit protection, Reverse polarity protection

Compliance
CE, RoHS

Switching Frequency
MAX 2 kHz

Insulation Resistance
50 M min. (at 500 VDC)

Detection Object
Ferrous Metals

Vibration Resistance
10 to 55 Hz, 1.5-mm double amplitude

Shock Resistance
500 m/s2 (50G), 3 times each in X, Y, Z axes

About OMRON PROXIMITY SENSOR 12 TO 24VDC, E2E-X1R5F1

Unlock unprecedented value with the OMRON PROXIMITY SENSOR 12 TO 24VDC, E2E-X1R5F1-a valorous choice for industrial automation. Experience an optimum combination of high-precision object detection and reliability, perfect for even the harshest environments, thanks to features like IP67 protection, surge and short-circuit safeguards, and robust nickel-plated brass housing. With a remarkable 1.5 mm sensing distance, repeat accuracy of 0.03 mm, and switching frequency up to 2 kHz, this sensor delivers high performance at an unbeatable price. Secure this innovation at a price cut-superior value redefined!

OMRON PROXIMITY SENSOR: Versatile Industrial Applications

Ideal for commercial settings, the OMRON PROXIMITY SENSOR 12 TO 24VDC, E2E-X1R5F1 excels in machine tool automation, assembly lines, and position or limit detection tasks. Its high sensitivity and repeatability make it suitable for detecting ferrous metals on automated conveyors and process machinery. Built for harsh environments, this sensor reliably supports applications in quality control, robotics, and packaging industries, ensuring consistent performance across diverse operational demands and boosting overall productivity.

Global Supply, Logistics, and Sample Availability

With strong supply ability, the OMRON PROXIMITY SENSOR 12 TO 24VDC, E2E-X1R5F1 is available for bulk orders and fast delivery. Our streamlined logistics and order processing systems serve major markets including Asia, the Middle East, and Africa. Samples are available for qualifying customers, allowing you to estimate project suitability before full-scale deployment. Rely on us as your trusted supplier, trader, and wholesaler from China to ensure seamless access and support for all your sensor requirements.

FAQ's of OMRON PROXIMITY SENSOR 12 TO 24VDC, E2E-X1R5F1:

Q: How can the OMRON PROXIMITY SENSOR E2E-X1R5F1 be integrated into an existing automation system?

A: This sensor features a 3-wire DC interface and pre-wired cable, making installation with existing PLCs or controllers straightforward. It is compatible with standard industry voltages (12 to 24 VDC) and offers PNP NO output for easy integration into automated control circuits.

Q: What are the main industrial applications of the E2E-X1R5F1 sensor?

A: The sensor is primarily used in industrial automation, including machine tools, assembly lines, position detection, limit sensing, and quality control where high precision and reliability are crucial.

Q: Where is the OMRON E2E-X1R5F1 commonly used geographically?

A: This sensor is exported mainly to regions such as Asia, the Middle East, and Africa, where it serves various industrial and manufacturing sectors due to its robust design and versatile usage.

Q: What process should I follow to request a sample or place a bulk order?

A: To request a sample or place an order, contact our sales team directly with your project details. They will guide you through the estimate, order processing, and logistics steps to ensure fast and accurate delivery.

Q: What benefit does the sensor offer for challenging industrial environments?

A: Its robust nickel-plated brass construction and IP67 rating provide excellent resistance to shock, vibration, and moisture, ensuring reliable performance in demanding environments and reducing maintenance downtime.
