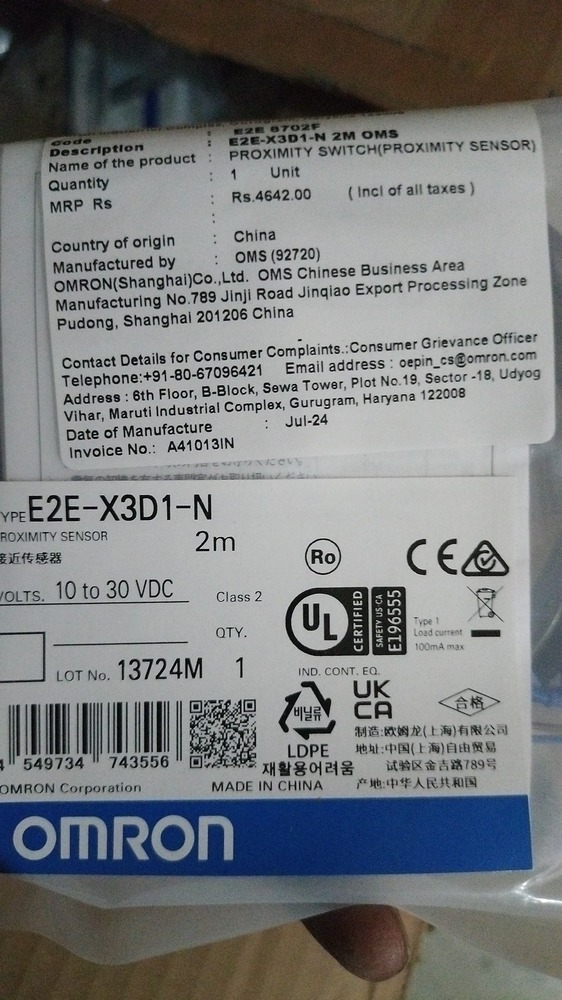

Omron Proximity Sensor 10 To 30vdc, E2e-x3d1-n 2m,e2e-x2mc18

Omron Proximity Sensor 10 To 30vdc, E2e-x3d1-n 2m,e2e-x2mc18 Specification

Application
Position sensing, counting, automation systems

Interface
Cable (lead wires)

Features
Short-circuit protection, reverse polarity protection, surge suppressor

IP Rating
IP67

Operating Temperature
-25C to +70C (no freezing or condensation) Celsius (oC)

Sensitivity
Factory set, optimized for metal detection

Cable Length
2 m Meter (m)

Sensor Type
Inductive Proximity Sensor

Measurement Range
Sensing distance: 3 mm (E2E-X3D1-N), 2 mm (E2E-X2MC18)

Mounting Type
Panel/flush mount (Shielded)

Wireless
No

Signal Type
DC 3-wire

Product Type
Proximity Sensor

Material
Metal (Stainless Steel Housing)

Input
10 to 30 VDC

Output
NPN NO (Normally Open)

Function
Detection of metallic objects

Usage
Industrial automation, object detection

Voltage
10 to 30 VDC Volt (v)

Weight
Approx. 90 g (with 2 m cable) Grams (g)

Protection Circuits
Surge suppressor, load short-circuit protection, reverse polarity protection

Shock Resistance
500 m/s2 (approx. 50G), 3 times each in X, Y, and Z directions

Rated Sensing Distance
3 mm (E2E-X3D1-N), 2 mm (E2E-X2MC18)

Case Diameter
M12 (E2E-X3D1-N), M18 (E2E-X2MC18)

Vibration Resistance
10 to 55 Hz, 1.5 mm double amplitude

Sensing Object
Ferrous metals (best for iron and mild steel)

Operating Humidity
35% to 95% RH

Indicator
Operation indicator (Red LED)

Model Numbers
E2E-X3D1-N, E2E-X2MC18

Control Output Current
Maximum 200 mA

Connection Type
Pre-wired, 2 m cable

Omron Proximity Sensor 10 To 30vdc, E2e-x3d1-n 2m,e2e-x2mc18 Trade Information

Minimum Order Quantity
30 Number

Delivery Time
7 Days

About Omron Proximity Sensor 10 To 30vdc, E2e-x3d1-n 2m,e2e-x2mc18

Take advantage of the Special Rate and get it nowOMRONs matchless, grandiose, and sought-after PROXIMITY SENSOR models E2E-X3D1-N & E2E-X2MC18 are engineered for supreme accuracy in industrial automation. Detecting ferrous metals (iron, mild steel) with high repeatability, these inductive sensors offer robust stainless steel housings, IP67 protection, and shock resistance up to 50G. Their reliable 2 m pre-wired cable and exceptional surge, short-circuit, and reverse polarity protection ensure safe and efficient operation. Perfect for object detection, position sensing, and automation systemsdont miss out on this best-in-class solution!

Commercial Application and Surface Versatility

OMRON PROXIMITY SENSOR models E2E-X3D1-N and E2E-X2MC18 are widely used for industrial automation tasks, including object detection, counting, and precise position sensing. Ideal for ferrous metal surfacessuch as iron and mild steeltheir flush mounting design ensures seamless integration into a range of machinery. These sensors are trusted in assembly lines, packaging systems, and robotics, where reliability and accuracy are paramount for smooth commercial operations.

Export Markets and Delivery Excellence

OMRON PROXIMITY SENSORS are dispatched globally, notably to main export markets across Asia, Europe, and North America. Products are carefully packaged to ensure safe delivery and shipped via FOB ports in China, optimizing your expenditure on logistics. Each sensor is securely boxed to maintain quality throughout transit, so your order is delivered promptly with full protection. Our commitment to robust packaging and timely dispatch guarantees satisfaction for wholesalers and traders alike.

FAQs of OMRON PROXIMITY SENSOR 10 TO 30VDC, E2E-X3D1-N 2M,E2E-X2MC18:

Q: How do I install the OMRON PROXIMITY SENSOR into my automation setup?

A: Proper installation involves panel or flush mounting the sensor, connecting the 2 m pre-wired cable to your DC power source (1030 VDC), and ensuring the sensors face is directed toward the ferrous surface for accurate detection.

Q: What objects can the E2E-X3D1-N and E2E-X2MC18 sensors detect best?

A: These sensors are optimized for detecting ferrous metals, particularly iron and mild steel, making them ideal for industrial applications requiring precise metal object positioning and counting.

Q: When should I consider using an inductive proximity sensor in my system?

A: Use inductive proximity sensors whenever you need non-contact detection of metallic objects, such as for automation, position sensing, or part counting in manufacturing environments.

Q: Where are these sensors commonly used commercially?

A: They are frequently installed in factory automation systems, conveyor controls, packing machines, and robotic arms for object detection and position accuracy.

Q: What protection features help ensure longevity and reliable operation?

A: OMRONs proximity sensors incorporate surge suppressors, short-circuit protection, and reverse polarity safeguards, as well as a robust IP67-rated stainless steel housing for resilience in harsh industrial environments.

Q: How does the sensor indicate its operating status?

A: Both models feature an operation indicatora red LEDthat lights up when the sensor is actively detecting a target object, providing instant visual confirmation.
