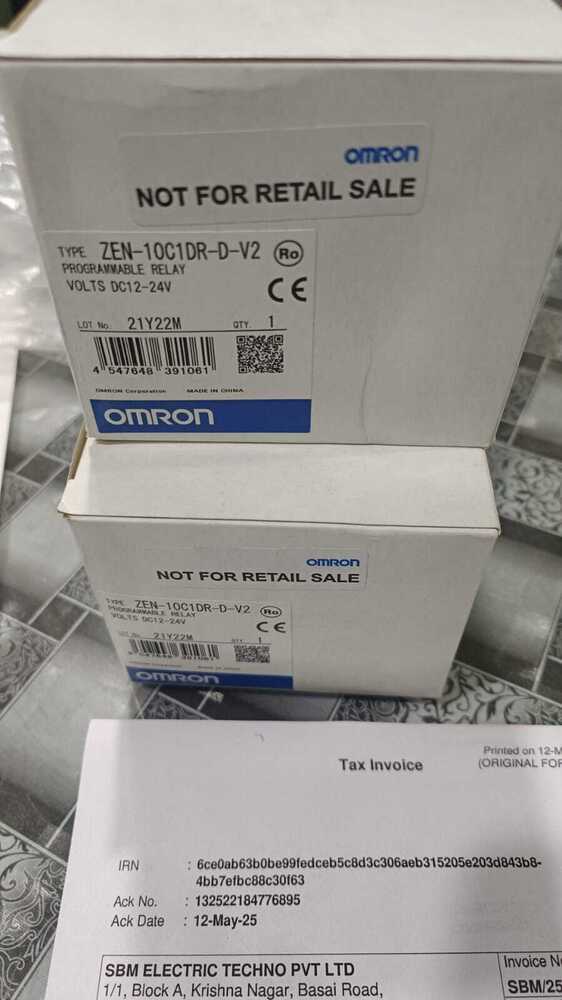

OMRON PROGRAMMABLE RELAY 12 TO 24VDC, ZEN-10C1DR-D-V2

OMRON PROGRAMMABLE RELAY 12 TO 24VDC, ZEN-10C1DR-D-V2 Specification

Ambient Temperature
-10 to 55C (No freezing)

Contact Resistance
50 m max. (initial value)

Power Consumption
Approx. 4 W

Coil Voltage
N/A (Solid-state/relay logic type)

Contact Form
SPDT (Single Pole Double Throw)

Contact Material
Silver Alloy

Coil Power
N/A (Solid-state/relay logic type)

Working Temperature
-10 to 55C

Mechanical Life
10,000,000 operations min.

Protect Feature
Overvoltage, Reverse Polarity

Dielectiric Strength
1000V AC, 50/60 Hz for 1 min between current-carrying metal parts and exposed non-current-carrying metal parts

Product Type
Programmable Relay

Insulation Resistance
20 M min. (at 500 VDC)

Theory
Logic Controller / Programmable Relay

Usage
Industrial Automation, Small Control Panel Applications

Contact Load
8A at 250VAC (Resistive Load)

Operate Time
Typically 10 ms or less

Terminal Type
Screw Terminal

Rated Voltage
12 to 24VDC

Supply Terminal
Screw terminals for power supply connection

Size
Compact module (see actual dimension)

Color
Gray

Dimension (L*W*H)
70 mm x 90 mm x 56 mm (approx.)

Weight
Approximately 150g

Standards Compliance
CE, cULus, RoHS

Degree of Protection
IP20 (housing), IP40 (panel front)

Clock/Timer Function
Built-in real-time clock/timer

Program Capacity
100 steps max.

Programming Method
Ladder or function block diagram

Input Points
6 digital inputs

Memory Backup
EEPROM (No battery required)

Display Type
LCD for program monitoring

Output Points
4 relay outputs

Mounting Type
DIN Rail or Surface Mounting

Expansion Capability
Expandable with ZEN-series expansion modules

About OMRON PROGRAMMABLE RELAY 12 TO 24VDC, ZEN-10C1DR-D-V2

The OMRON PROGRAMMABLE RELAY 12 TO 24VDC, ZEN-10C1DR-D-V2 stands as a preeminent solution for industrial automation and small control panel requirements. Jump on this popular programmable relay, boasting laureate-level performance with six digital inputs and four relay outputs. Its lavish LCD display offers effortless program monitoring, while the ladder or function block diagram programming method enhances usability. Expansion capability, robust memory backup (EEPROM), and IP-rated protection elevate this device. Purchase now for reliability, flexibility, and standards compliance including CE, cULus, and RoHS.

Versatile Applications for Every Industry

The OMRON ZEN-10C1DR-D-V2 programmable relay excels in a wide range of applications, from industrial automation to small machinery and building management. Its type allows for seamless integration into general control panels, specialized timing circuits, and process control systems. Additionally, the unit's adaptability makes it suitable for both dedicated tasks and general-purpose automation, ensuring comprehensive support for diverse operational needs. This makes it a top choice for those seeking dependable and flexible logic control solutions.

Flexible Payment, Global Export, and Reliable Delivery

We offer flexible payment terms to suit your business requirements, ensuring a smooth purchase experience for both domestic and international clients. Goods are shipped promptly, with secure packaging to protect your investment. The list price is competitive for bulk purchases, and our supply ability meets high-volume demands effortlessly. With established export markets in Asia, Europe, and North America, we guarantee timely delivery, making global procurement straightforward and dependable.

FAQ's of OMRON PROGRAMMABLE RELAY 12 TO 24VDC, ZEN-10C1DR-D-V2:

Q: How does the memory backup in the OMRON ZEN-10C1DR-D-V2 operate?

A: The relay uses EEPROM memory, eliminating the need for a battery and allowing secure data retention even during power loss, ensuring reliable program storage.

Q: What programming methods are available for this programmable relay?

A: You can program the OMRON relay using either ladder logic diagrams or function block diagrams, catering to various user preferences and application requirements.

Q: Where can this programmable relay be used most effectively?

A: The ZEN-10C1DR-D-V2 excels in industrial automation, small control panel setups, timing and sequencing tasks, and is also valuable in building management and process control applications.

Q: When should I consider purchasing expansion modules for this relay?

A: Expansion modules are ideal when your application requires more input or output points than the base unit can provide, supporting modular growth as needs evolve.

Q: What are the benefits of choosing this relay for control panels?

A: This relay offers compact design, extensive protection features, flexible mounting options, and compliance with international standards, providing long-term efficiency and reliability for control panel applications.

Q: How does the relay protect against common electrical issues?

A: It incorporates overvoltage and reverse polarity protection, solid insulation resistance, and robust build quality, ensuring operation stability and equipment safety.
