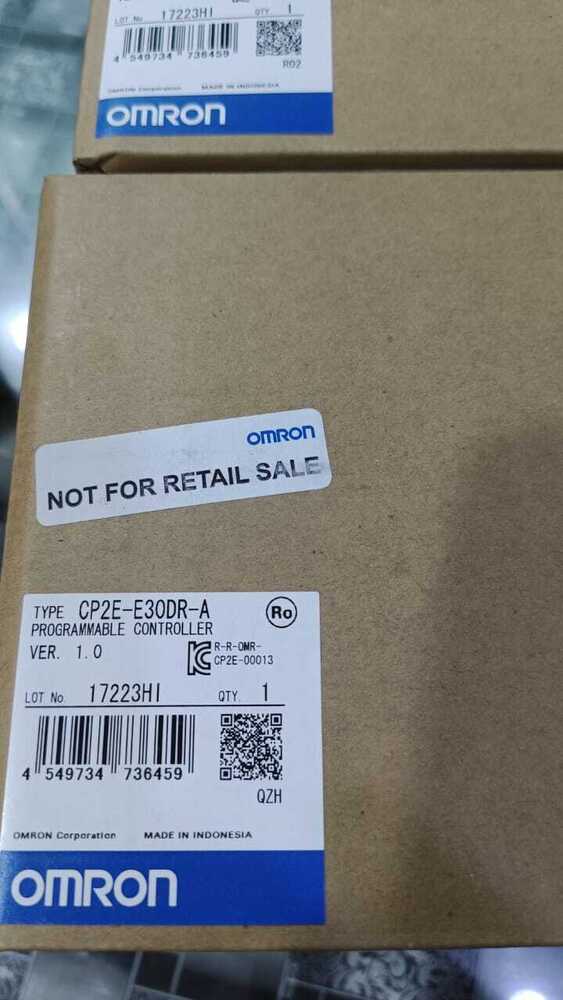

OMRON PROGRAMMABLE CONTROLLER, CP2E-E30DR-A, CP2E-N40DR-A

OMRON PROGRAMMABLE CONTROLLER, CP2E-E30DR-A, CP2E-N40DR-A Specification

Type
Programmable Controller

Theory
Relay and Transistor Output

Capacity
Varies by Model (CP2E-E30DR-A: 30 I/O, CP2E-N40DR-A: 40 I/O)

Exterior Material
Plastic (ABS)

Interior Material
PCB & Electronic Components

Insulation Material
Flame-retardant resin

External Size
CP2E-E30DR-A: approx. 130 x 90 x 85 mm, CP2E-N40DR-A: approx. 180 x 90 x 85 mm

Controller System
Microcontroller Unit (PLC logic based)

Humidity Range
10% to 90% RH (non-condensing)

Temperature Range
0°C to 55°C (operating temperature)

Power Consumption
Approx. 10W

Number of Inputs
CP2E-E30DR-A: 18 input points, CP2E-N40DR-A: 24 input points

Expansion
Supports expansion units and communication modules

Backup
Battery-less backup for the program and data retention

Protection Structure
IP20 (finger safe)

Memory
Built-in program memory: 32K steps max

Display
LED indicators for input, output, and errors

Response Time
Input: 10 ms max, Output: 10 ms max

Communication Ports
RS-232C, RS-485, Ethernet (model dependent)

Programming Language
Ladder Diagram (IEC 61131-3 compliance)

Mounting Type
DIN rail mounting, direct mounting possible

Model Names
CP2E-E30DR-A, CP2E-N40DR-A

Input Voltage
24V DC

Output Type
Relay Output (standard), expandable to Transistor Output

Weight
CP2E-E30DR-A: approx. 450 g, CP2E-N40DR-A: approx. 650 g

Number of Outputs
CP2E-E30DR-A: 12 relay output points, CP2E-N40DR-A: 16 relay output points

About OMRON PROGRAMMABLE CONTROLLER, CP2E-E30DR-A, CP2E-N40DR-A

Take advantage of unrivaled performance with the top-rated OMRON Programmable Controllers, models CP2E-E30DR-A and CP2E-N40DR-A. Engineered for reliability, these controllers offer dazzling capabilities with 24V DC input voltage and flexible inputs/outputs: 18/12 (E30DR-A) or 24/16 (N40DR-A) relay points, expandable to transistor outputs. Program with IEC 61131-3 Ladder Diagrams and enjoy robust communication with RS-232C, RS-485, or Ethernet. DIN rail or direct mounting, IP20 protection, and battery-less backup ensure safety and convenience. Dont miss this terrific, limited time offer from a trusted supplier in China!

Versatile Plant Solutions and Industry Applications

The OMRON CP2E-E30DR-A and CP2E-N40DR-A controllers are ideal for dazzling a wide range of industrial plants, from automotive to packaging and materials handling. Frequently used by system integrators and OEMs, these controllers support unrivaled automation and monitoring functions. Their robust logic and versatile expandability make them perfect for process controls, factory automation, energy management, and more.

Professional Delivery & Sample Handling Details

Handover of the OMRON CP2E series is prompt, typically completed within a short delivery time. Each unit undergoes protective packing and dispatch via secure channels. FOB port is generally located in China, facilitating international shipment. Sample units are available upon charge request to qualified buyers, ensuring you can evaluate performance and quality before committing to larger orders.

FAQs of OMRON PROGRAMMABLE CONTROLLER, CP2E-E30DR-A, CP2E-N40DR-A:

Q: How can I expand the inputs and outputs on the CP2E-E30DR-A or CP2E-N40DR-A controllers?

A: You can expand both input and output capabilities by attaching compatible expansion units and communication modules as needed, providing greater flexibility for diverse industrial requirements.

Q: What types of applications are most suitable for these OMRON controllers?

A: The CP2E-E30DR-A and CP2E-N40DR-A excel in plant applications such as conveyor control, packaging automation, and energy management, widely used by manufacturers and system integrators.

Q: Where are the communication ports located and what types are available?

A: Depending on the model, youll find RS-232C, RS-485, or Ethernet ports on the controllers, allowing you to connect to various factory networks and devices.

Q: What is the process for receiving a sample and what charges apply?

A: Qualified customers can request a sample unit, subject to a standard sample charge, and delivery will be managed through secure packing and dispatch procedures from the Chinese FOB port.

Q: How is data integrity maintained if there is a power failure?

A: Both models offer battery-less backup, ensuring program and data retention even during unexpected power outages, providing peace of mind for your operations.

Q: What benefits do LED indicators on the controller offer?

A: LED indicators provide immediate visual feedback on input, output, and error status, enabling operators to quickly identify issues and monitor system performance efficiently.
