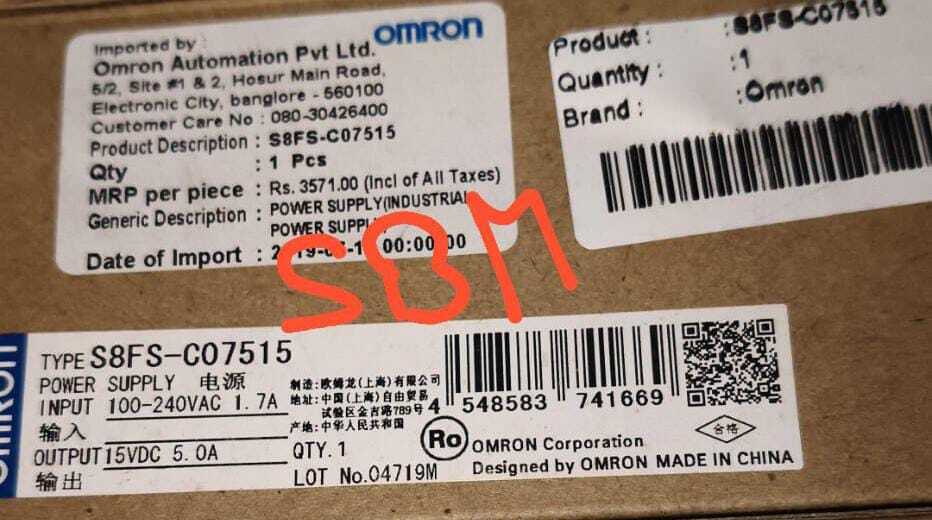

OMRON POWER SUPPLY 100-240VAC, S8FS-C07515

OMRON POWER SUPPLY 100-240VAC, S8FS-C07515 Specification

Features
Compact Design, High Reliability, DIN Rail Mountable

Output Type
Single Output

Noise Level
<50 mV

Output Current
5A

Current Range
0-5 A

Operating Temperature
-20C to +60C

Cooling Method
Natural Air Cooling

Working Temperature
-20C to +60C

Power Supply
AC to DC Converter

Rated Current
5A

Connector Type
Screw Terminal

Phase
Single Phase

Rated Power
75W

Power Factor
>0.95

Application
Industrial Automation, Control Panels

Product Type
Switching Power Supply

Output Power
75 W

Output Frequency
47-63 Hz (Input)

Input Voltage
100-240 VAC, 50/60 Hz

Voltage Protection
Overvoltage, Overcurrent, Short-circuit Protection

Efficiency
Up to 89%

Material
Metal Case

Line Regulation
0.5%

Storage Temperature
-25C to +70C

Weight
380 g

Relative Humidity
10% to 90% (non-condensing)

Dielectric Strength
3,000 VAC (input to output)

Vibration Resistance
10-55 Hz, 19.6 m/s2 (2G)

Dimensions (W x H x D)
40 mm x 90 mm x 95 mm

Insulation Resistance
100 M min. (at 500 VDC)

Input Current
1.1A at 100V AC / 0.65A at 240V AC

Ripple and Noise
50 mVp-p max.

Mounting Type
Panel Mount

Output Voltage
15 VDC

About OMRON POWER SUPPLY 100-240VAC, S8FS-C07515

Experience the praiseworthy performance of the OMRON POWER SUPPLY 100-240VAC, S8FS-C07515-a sought-after, industrial-grade converter designed for reliability in demanding environments. With a valiant output of 15 VDC at 5A and high efficiency up to 89%, this compact, panel mount unit ensures superior operation. Its robust metal case and advanced protective features, such as overvoltage, overcurrent, and short-circuit safeguarding, cater to stringent industry standards. Limited stock available-don't miss out on this scarce opportunity, now offered at a special markdown for select traders and wholesalers from China.

Special Features and Competitive Advantages

The S8FS-C07515 model from OMRON stands out for its compact design and high reliability, making it suitable for rugged industrial environments. Its DIN rail mountable construction simplifies installation in control panels. Natural air cooling ensures silent, maintenance-free operation. Panel mounting and screw terminal connectors streamline setup. Overvoltage, overcurrent, and short-circuit protection provide robust safety. Compared to alternatives, this power supply offers higher efficiency, better power factor, and exceptional insulation for dependable use in automation and industrial applications.

Sample Availability and Delivery Logistics

Samples of the OMRON S8FS-C07515 power supply are available upon request, reflecting our customer-friendly sample policy. Standard delivery times ensure prompt logistics, with products shipped carefully to prevent any transit damage. We offer competitive list pricing and responsive support throughout the ordering process. Our streamlined logistics network guarantees reliable delivery to your facility, allowing you to assess quality first-hand before placing bulk orders. Contact us for details on sample dispatch, delivery duration, and logistics arrangements.

FAQ's of OMRON POWER SUPPLY 100-240VAC, S8FS-C07515:

Q: How does the OMRON S8FS-C07515 protect connected equipment?

A: This power supply incorporates overvoltage, overcurrent, and short-circuit protection features, which ensure that your connected devices remain safeguarded against electrical faults and potential damage during operation.

Q: What applications are best suited for the S8FS-C07515 power supply?

A: It is designed primarily for industrial automation setups, control panels, and environments that demand high reliability under fluctuating conditions.

Q: Where can the S8FS-C07515 unit be mounted?

A: The S8FS-C07515 is constructed for panel mounting and is also compatible with DIN rail systems, offering flexibility for installation within various industrial enclosures.

Q: What is the process to request a product sample?

A: Simply contact our sales team to request a sample. We follow a clear sample policy, and once approved, samples are dispatched quickly as part of our streamlined delivery process.

Q: What are the benefits of choosing this power supply over others?

A: This power supply boasts higher efficiency, advanced safety features, a compact design, silent cooling, and a robust metal housing-advantages that position it ahead of standard alternatives on the market.

Q: How long does delivery typically take for standard orders?

A: Typical delivery times depend on location, but our efficient logistics system strives to ensure rapid shipment so your order arrives as quickly as possible.
