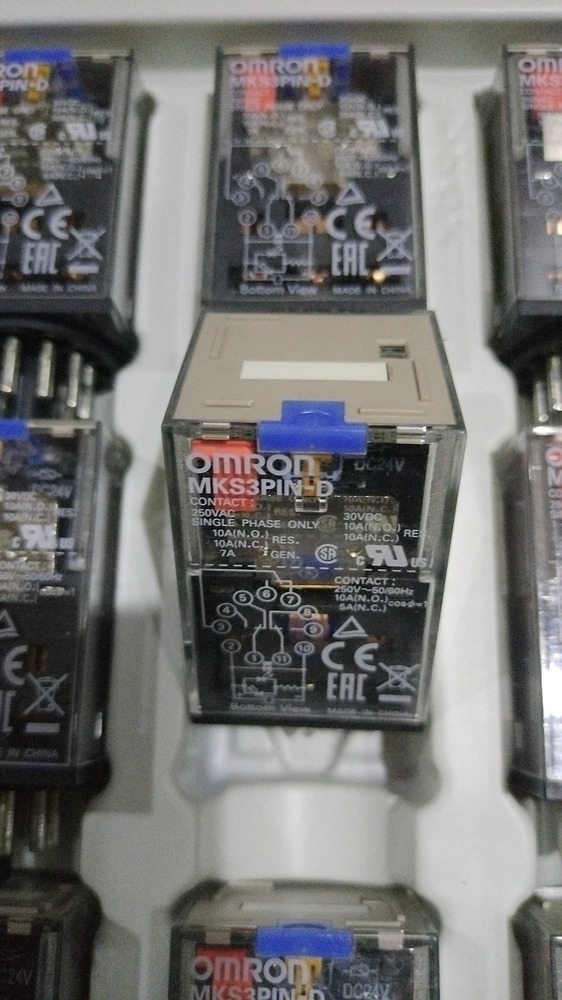

OMRON PLUG IN RELAY, MKS3PIN-D

OMRON PLUG IN RELAY, MKS3PIN-D Specification

Power Consumption
Approx. 1.2 VA

Working Temperature
-10C to +55C

Ambient Temperature
-10C to +55C

Coil Voltage
220V AC

Dielectiric Strength
2000 VAC, 50/60 Hz for 1 min

Mechanical Life
10,000,000 operations min.

Contact Material
Silver Alloy

Contact Form
3PDT (Triple Pole Double Throw)

Coil Power
1.2 VA

Protect Feature
Sealed, Dust Cover

Contact Resistance
100 m max.

Product Type
Plug-In Relay

Insulation Resistance
100 M min. (at 500 VDC)

Theory
Electromagnetic Relay

Usage
General Purpose, Industrial Automation

Contact Load
10A at 250V AC / 10A at 30V DC

Operate Time
20 ms max.

Terminal Type
Plug-in

Rated Voltage
220V AC

Supply Terminal
Screw Terminal

Size
Standard (approx. 35.5 x 27.5 x 52mm)

Color
Transparent Cover, Black Base

Dimension (L*W*H)
35.5 mm x 27.5 mm x 52 mm

Weight
Approx. 70g

Coil Resistance
9,640 (approx. for 220V AC)

Number of Pins
11 Pin

Glow Lamp Indicator
Yes

Model Number
MKS3PIN-D

Vibration Resistance
10 to 55 Hz, 1.5 mm double amplitude

Mounting Type
Socket Mount

Shock Resistance
1,000 m/s2 (approx. 100G)

About OMRON PLUG IN RELAY, MKS3PIN-D

Discover the Exclusive OMRON PLUG IN RELAY, MKS3PIN-D-crafted for the enlightened engineer demanding extraordinary performance. With a robust socket mount design, this ultimate relay is imbued with a reliable 11-pin configuration and features a transparent cover for instant visual inspection. Its 220V AC coil with 9,640 resistance ensures precision, while shock and vibration resistance elevate durability. The integrated glow lamp indicator supports advanced diagnostics. Ideal for industrial automation and general-purpose applications, this relay is an unbeatable choice for those seeking reliability-Add to Cart for advance purchase today!

Inspiring Versatility: Who Uses the OMRON MKS3PIN-D

The OMRON MKS3PIN-D relay is widely used by automation professionals, panel builders, and maintenance engineers seeking reliability in control applications. Its plug-in design enables swift integration via socket mounting in control cabinets and electrical panels. Suitable for general-purpose switching, it also excels in machinery, process control, and factory automation, supporting varied industrial needs. This relay is a staple for those demanding resilient performance and adaptability across multiple operational environments.

Order Processing and Supply Assurance for MKS3PIN-D

Samples of the OMRON MKS3PIN-D plug-in relay are available for pre-purchase evaluation, ensuring suitability before bulk expenditure. Certified quality is maintained throughout production. As a supplier and wholesaler, our efficient order processing and careful packaging guarantee the product arrives in pristine condition. With substantial supply ability, we reliably meet high-demand requirements, supporting your project schedules and operational uptime. Advance purchase secures prioritized dispatch and fulfillment for your vital automation needs.

FAQ's of OMRON PLUG IN RELAY, MKS3PIN-D:

Q: How is the OMRON MKS3PIN-D installed in industrial settings?

A: The OMRON MKS3PIN-D is designed with a socket mount and screw terminal connection, making it easy to plug into control panels or automation systems without complicated wiring.

Q: What distinguishes the MKS3PIN-D from other relays in its class?

A: This relay features an exclusive transparent cover, a reliable glow lamp indicator, high shock and vibration resistance, and a sealed dust cover, ensuring extraordinary durability and advanced status diagnostics.

Q: Where is the OMRON MKS3PIN-D commonly used?

A: The relay is widely used in industrial automation, machinery control, electrical panels, and general-purpose switching applications where dependable performance is essential.

Q: What are the benefits of advance purchasing the MKS3PIN-D relay?

A: Advance purchase ensures product availability, prioritized order fulfillment, and uninterrupted project workflow-critical for large-scale automation and maintenance plans.

Q: How can I verify the authenticity and quality of the MKS3PIN-D relay?

A: Each unit comes with certifications conforming to international standards and undergoes stringent quality checks before order processing and packaging.

Q: What contact loads and electrical specifications does this relay support?

A: It supports a contact load of 10A at 250V AC or 10A at 30V DC. The relay is rated for 220V AC coil voltage and can withstand high insulation and dielectric strengths.
