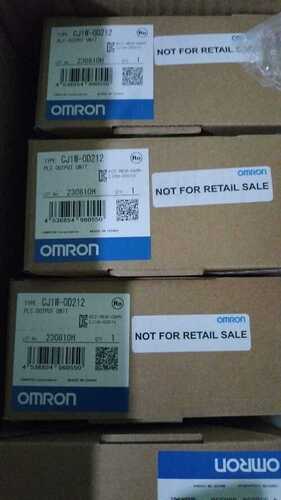

OMRON PLC OUTPUT UNIT, CJ1W-OD212

OMRON PLC OUTPUT UNIT, CJ1W-OD212 Specification

Rated Voltage
24V DC

Protection Level
Overcurrent Protection, Short-circuit Protection

Operating Temperature
0C to 55C

Frequency
DC Only

Output Voltage
20.4 to 26.4 VDC

Efficiency
High Efficiency

Input Current
Not Applicable (Output Unit)

Phase
Single

Mounting Type
DIN Rail Mounting

Humidity
10% to 90% (non-condensing)

Main Material
Industrial-grade Plastics and Electronic Components

Processing Type
Digital Output

Condition
New

Function
Transistor Output Unit

Application
For use in industrial automation with OMRON CJ1 series PLCs

Dimension (L*W*H)
90 mm x 20 mm x 75 mm

Power Mode
DC Powered

Voltage
24V DC

Power Consumption
1.4 W max (at 24VDC supply)

Status Indicators
LED for each output channel

Weight
Approx. 120g

Isolation
Photocoupler Isolation

Number of Outputs
16 Points (sourcing transistor type)

Connector Type
Removable terminal block

Internal Current Consumption
55 mA at 5V DC

Output Current per Point
0.5A max/point

Output Current per Common
2.0A max/common

Category
PLC Output Unit

Storage Temperature
-20C to 75C

Output Type
Transistor (sourcing, NPN type)

Compliance Standards
CE, cULus, and RoHS

OMRON PLC OUTPUT UNIT, CJ1W-OD212 About

Unlock elite efficiency with the OMRON PLC OUTPUT UNIT, CJ1W-OD212-an extraordinary solution for industrial automation. Boasting 16 supreme sourcing transistor outputs (NPN type) and astounding reliability, this output unit operates seamlessly at 24V DC with a special rate output of up to 0.5A per point. Engineered for durability, it features robust overcurrent and short-circuit protection, and LED status indicators for each channel. Whether integrating into an existing OMRON CJ1 series, this high-efficiency module is your ticket to outstanding operational control.

Astounding Features & Plant Applications

Experience supreme performance with the OMRON CJ1W-OD212, offering 16 independent transistor outputs and photocoupler isolation for exceptional reliability. Ideal for general industrial use or plant-level automation, this unit fits perfectly in control panels where digital output precision is critical. Distinctive LED indicators and DIN rail mounting make integration simple and maintenance effortless. Crafted for use in demanding environments, it supports wide temperature ranges and ensures consistent operation across a variety of plant automation applications.

Supply Ability, Packaging & Freight Details

With elite supply capacity, the OMRON CJ1W-OD212 is handed over efficiently and packaged securely to prevent any transit expenditure. Each unit is meticulously boxed, ensuring supreme protection during shipment. Freight for international orders typically routes through major FOB ports in China, providing reliable delivery. Our streamlined procurement process enables you to manage expenditure on shipping with transparency and confidence, ensuring your order arrives in optimal condition and on schedule.

FAQ's of OMRON PLC OUTPUT UNIT, CJ1W-OD212:

Q: How does the OMRON CJ1W-OD212 ensure operational reliability in industrial environments?

A: The CJ1W-OD212 features photocoupler isolation, robust overcurrent and short-circuit protection, and operates efficiently within a wide temperature range, making it highly reliable for demanding industrial automation applications.

Q: What is the process for installing the CJ1W-OD212 in an OMRON CJ1 series PLC setup?

A: Installation is straightforward with DIN rail mounting and a removable terminal block connector, designed for seamless integration with OMRON CJ1 series PLCs. Clear LED indicators aid in easy channel status monitoring.

Q: When is the best application scenario for utilizing this output unit?

A: The unit excels in situations requiring fast, digital output for industrial automation, especially in plant controls, machinery interfacing, or automated production lines where reliable transistor-based switching is required.

Q: Where can I source the CJ1W-OD212, and what packaging methods are used?

A: The output unit is available from verified suppliers, traders, and wholesalers, primarily in China. Secure packaging and freight arrangements ensure safe delivery and minimized risk of expenditure on damaged goods.

Q: What benefit do the status LED indicators provide on each output channel?

A: LED status indicators deliver real-time visual feedback for each output channel, enabling quick troubleshooting, efficient monitoring, and facilitating maintenance-minimizing downtime and maximizing operational efficiency.
