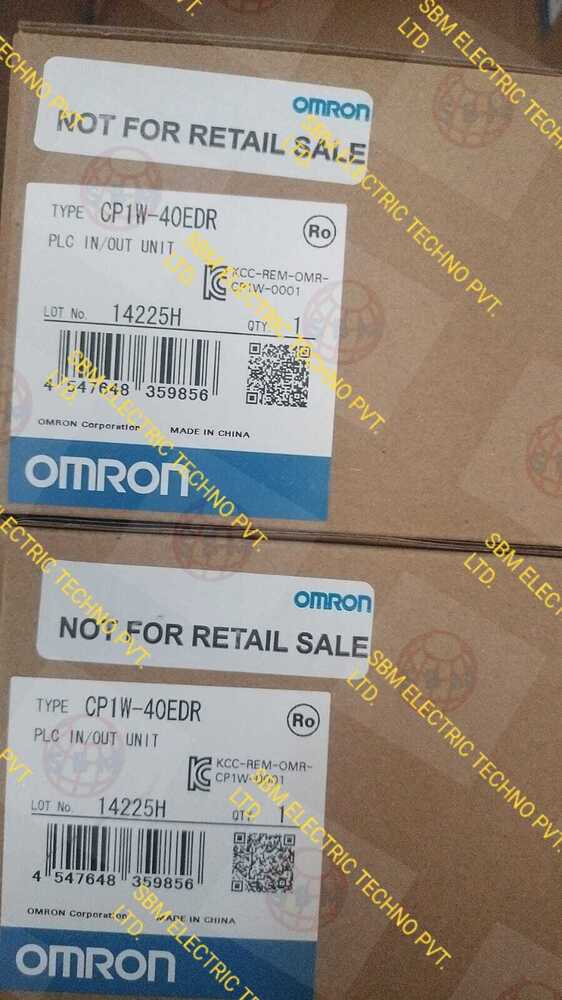

OMRON PLC IN/OUT UNIT, CP1W-40EDR

OMRON PLC IN/OUT UNIT, CP1W-40EDR Specification

Output Voltage
24V DC

Phase
Single Phase

Protection Level
IP20

Rated Voltage
24V DC

Operating Temperature
0 to 55C

Humidity
10 to 90% RH (non-condensing)

Input Current
4.5 mA/input (24V DC)

Mounting Type
DIN Rail mounting

Efficiency
High reliability

Frequency
50/60 Hz

Main Material
Industrial grade plastic and electronic components

Processing Type
Electronic

Condition
New

Function
Digital Input/Output Expansion Unit

Application
For control panel input/output expansion

Dimension (L*W*H)
129 x 35 x 90 mm

Power Mode
DC powered

Voltage
24V DC

Power Consumption
5.6 W (max)

Accessories
Mounting hardware included

Shock Resistance
150 m/s2, 3 times in 6 directions

Model Number
CP1W-40EDR

Input Signal Type
NPN/PNP compatible

Input Impedance
4.3 k/input

Input Points
24 digital inputs (sourcing)

Output Type
Relay

Response Time (Output)
10 ms max

Isolation Resistance
20 M min (500VDC)

Relay Output Contact Capacity
2A at 250VAC/30VDC (resistive load)

Vibration Resistance
10 to 57 Hz, 0.075 mm amplitude, 57 to 150 Hz, 9.8 m/s2

Response Time (Input)
ON: 15 ms max, OFF: 1 ms max

Output Points
16 relay outputs (contact type)

About OMRON PLC IN/OUT UNIT, CP1W-40EDR

Explore the matchless performance of the OMRON PLC IN/OUT UNIT, CP1W-40EDR-a kingly solution designed for control panel input/output expansion. This digital input/output expansion unit boasts 24 digital inputs (NPN/PNP compatible) and 16 triumphant relay outputs (2A at 250VAC/30VDC). Crafted with industrial-grade materials, it ensures ephemeral yet robust reliability even in demanding environments. With rapid response times, high vibration and shock resistance, and seamless DIN Rail mounting, grab yours now to elevate your automation projects with OMRON's engineering excellence.

Competitive Advantage & Application Versatility

The CP1W-40EDR stands out due to its high reliability, kingly insulation resistance, and matchless efficiency in expanding digital input and output capacity within sophisticated control panels. Its surface application covers industrial machinery, process control, and automation systems, where stable and safe electronic processing is paramount. Specifically used for digital input/output expansion, the unit is designed for effortless mounting, making operations both easier and triumphant for engineers seeking quality.

Export Markets, Sample Availability & Market Value

OMRON CP1W-40EDR commands significant market value both domestically and internationally, with drop-off rates in reliability close to zero. As a supplier, trader, and wholesaler in China, we facilitate seamless export to markets globally. Samples are available for prospective customers, adhering to a transparent sample policy focused on testing and validation before purchasing. These efforts underscore the unit's steady rise in both domestic mar expansion and the international automation components sector.

FAQ's of OMRON PLC IN/OUT UNIT, CP1W-40EDR:

Q: How does the OMRON CP1W-40EDR enhance control panel functionality?

A: The CP1W-40EDR expands the digital input/output capability of your control panels, allowing seamless integration with diverse equipment and making automation processes smarter and more efficient.

Q: What are the primary protection and durability features of this unit?

A: This unit boasts IP20 protection, vibration and shock resistance (up to 150 m/s2), and superior isolation resistance of 20 M, ensuring long-lasting and reliable operation even in challenging industrial environments.

Q: When should I consider using the CP1W-40EDR in my automation project?

A: Consider this unit whenever your system requires additional digital inputs and relay outputs with high reliability, especially for expanding and optimizing industrial control panels.

Q: Where can the OMRON CP1W-40EDR be mounted?

A: The CP1W-40EDR is designed for easy DIN Rail mounting, making installation simple and suitable for various industrial enclosure setups.

Q: How can a sample of the CP1W-40EDR be obtained for testing?

A: Samples are available from the supplier or wholesaler upon request and in accordance with the outlined sample policy for pre-purchase validation and testing purposes.
