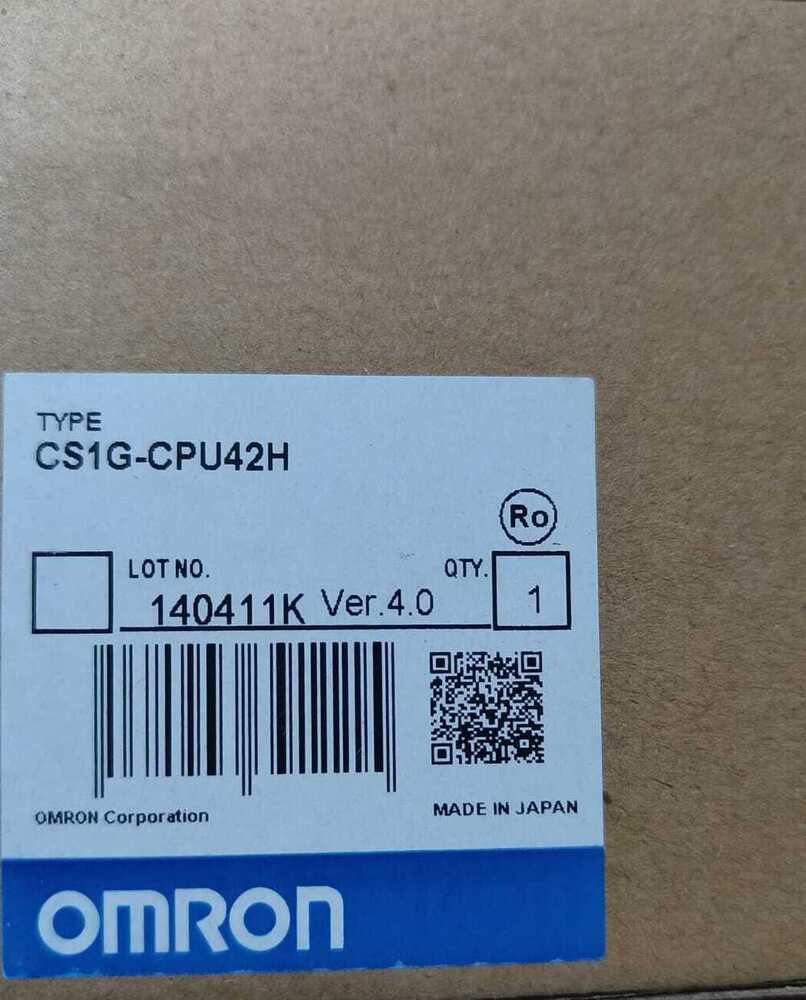

OMRON PLC, CS1G-CPU42H

OMRON PLC, CS1G-CPU42H Specification

Input Current
0.23A

Rated Voltage
5 VDC

Frequency
50/60 Hz

Humidity
10%-90% RH (non-condensing)

Efficiency
High-performance CPU, fast processing

Phase
Single-phase

Protection Level
IP20

Operating Temperature
0 to 55C

Output Voltage
Dependent on I/O module

Mounting Type
DIN rail and surface mounting

Main Material
Plastic housing, electronic components

Processing Type
PLC - Programmable Logic Controller

Condition
New

Function
Sequence control, logic operation, process management

Application
Industrial automation, machine control

Dimension (L*W*H)
130mm x 35mm x 130mm

Power Mode
External power supply

Voltage
5 VDC

Power Consumption
0.23A (at 5 VDC)

Battery Life
5 Years (at 25C, alkaline) (reference value)

Accessories
Instruction manual

Vibration Resistance
10 to 57 Hz, 0.075 mm double amplitude; 57 to 150 Hz, acceleration 9.8 m/s2

Firmware Update
Supported via programming device

Real Time Clock
Yes

Program Capacity
120 Ksteps

Shock Resistance
147 m/s2, 3 times each in X, Y, Z directions

Display
No built-in display

Ethernet Communication
Supported with optional module

Expansion Options
Supports multiple I/O, analog, and communication modules

Backplane
CS1W-series compatible

Programming Language
Ladder, Structured Text (ST), SFC

Memory Card Support
Yes, with optional module

CPU Type
CS1G-CPU42H

Number of I/O Points
5120 max. (with expansion)

Data Memory Capacity
256 KB

Noise Immunity
IEC-61000-4-2/3/4 compliant

Weight
Approx. 300g

OMRON PLC, CS1G-CPU42H About

Step into brilliant performance with the OMRON CS1G-CPU42H PLC, engineered for elite industrial automation environments. With extraordinary program capacity of 120 Ksteps and stunning data memory of 256 KB, achieve heroic control and processing for up to 5120 I/O points. Redeem versatile expansions for analog, communications, and memory cards, while Ethernet support offers seamless integration. Noise, vibration, and shock resistance guarantee reliability, and IEC-61000-4 compliance demonstrates robust durability. Grab yours today and experience unmatched efficiency and extraordinary value in process management and logic operation.

Versatile Industrial Applications for Any Site

The OMRON CS1G-CPU42H PLC is designed for use in demanding industrial environments such as factories, process plants, and advanced machine controls. Its versatile logic and sequence control functions make it ideal for applications like conveyor systems, assembly lines, and process management. Perfect for both new and upgrade installations, this PLC can be surface-mounted or DIN rail-mounted, adapting to a wide variety of operational surfaces and automation settings across industrial sites.

Flexible Sampling and Competitive Pricing Options

Sample units of the OMRON CS1G-CPU42H are available to support evaluation before full-scale purchase. Each sample is painstakingly packaged for safe delivery, adhering to strict industry standards. Our welcoming sample policy allows clients to test functionality, with sale price and exchange options available for bulk orders. We ensure the lowest price for verified partners and provide swift exchanges during the initial evaluation period, making your procurement process smooth and reliable.

FAQ's of OMRON PLC, CS1G-CPU42H:

Q: How does the OMRON CS1G-CPU42H PLC enhance industrial automation?

A: The CS1G-CPU42H PLC delivers high-performance control with fast processing, large program capacity, and robust memory, supporting a wide range of expansion modules for diverse automation needs.

Q: What applications are ideal for the CS1G-CPU42H PLC?

A: It is perfect for industrial automation applications such as machine control, sequence control, and process management in factories, assembly lines, and production facilities.

Q: When is the best time to request a sample unit?

A: You can request a sample unit at any point during your evaluation or project planning phase, helping you assess the product before making a bulk purchase decision.

Q: Where can the CS1G-CPU42H be installed?

A: Installation is flexible-the PLC can be mounted on a DIN rail or directly on a surface, suiting various industrial environments and equipment setups.

Q: What is the process for exchanging a sample or requesting a sale price?

A: Simply contact our sales team; they will assist with exchange procedures and offer the lowest verified sale prices based on your requirements and order volume.
