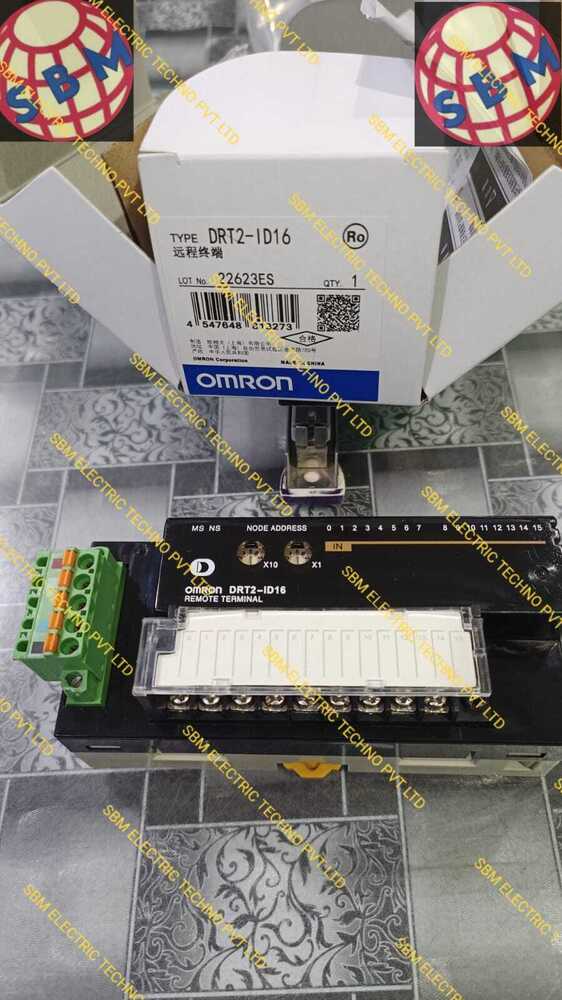

OMRON PLC CARD, DRT2-ID16

OMRON PLC CARD, DRT2-ID16 Specification

Frequency
50/60 Hz (reference for system compatibility)

Operating Temperature
0C to 55C

Protection Level
IP20

Humidity
10% to 95% (non-condensing)

Mounting Type
DIN Rail Mounting

Rated Voltage
24V DC

Efficiency
High signal transmission efficiency

Input Current
8 mA/input (at 24 VDC)

Main Material
Plastic, Electronic Components

Processing Type
Digital Input

Condition
New

Function
16-point input interface module for PLC

Application
Industrial Automation, Input interface to PLC systems

Dimension (L*W*H)
15.5 x 7.5 x 5.5 cm (approx.)

Power Mode
DC Powered

Voltage
24V DC

Power Consumption
1.3 W max.

No. of Input Points
16

Weight
Approx. 170 g

Model
DRT2-ID16

Status Indicators
LED for each input point

Communication Protocol
DeviceNet

Series
DRT2 Series

Input Type
PNP (Sink) / NPN (Source) Selectable

Connector Type
Removable terminal block (screw type)

Isolation
Photocoupler isolation between input and internal circuitry

Response Time
1 ms max.

About OMRON PLC CARD, DRT2-ID16

Discover the illustrious OMRON PLC CARD, DRT2-ID16-a popular solution for high-efficiency industrial automation. Renowned for its exquisite processing capabilities, this module functions as a glorious 16-point input interface for PLC systems, supporting both PNP and NPN input types. With a swift 1 ms response time and LED status indicators, it ensures reliable performance. The removable screw-type terminal block and robust photographic isolation enhance operational safety. Secure this exceptional bargain and elevate your automation standards with a trusted, new, and top-quality device from China's leading suppliers, traders, and wholesalers.

Material Feature, Usage & Applications

Crafted with durable plastic and advanced electronic components, the OMRON DRT2-ID16 PLC Card is perfect for demanding industrial environments. This module is mainly used as a digital input interface-a seamless bridge to connect field input signals to PLC systems for precise, efficient control. Suitable for industrial automation, it suits diverse applications such as manufacturing lines, process controls, and remote I/O stations, emphasizing high signal transmission efficiency and stable operation in varying temperatures and humidity levels.

Certifications, Export Markets & Sample Policy

The OMRON PLC CARD, DRT2-ID16 adheres to stringent industrial standards. Our products have illustrious certification credentials, meeting global quality norms. We primarily export to estimable markets in Asia, Europe, and the Middle East, ensuring buyers worldwide access secure shipping and optimized delivery schedules. For prospective partners, sample units are available to ease your outlay and provide hands-on evaluation before bulk orders, enabling confident decisions and robust procurement experiences every time.

FAQ's of OMRON PLC CARD, DRT2-ID16:

Q: How can the OMRON DRT2-ID16 be integrated into an existing PLC system?

A: The OMRON DRT2-ID16 connects via DeviceNet communication protocol and mounts securely on DIN rails. It features a removable terminal block for easy wiring and supports both PNP and NPN input configurations, ensuring straightforward integration with most PLC systems.

Q: What are the main applications for the DRT2-ID16 input module?

A: This module is primarily used in industrial automation settings to interface digital input signals from field devices to PLCs. Applications include manufacturing automation, process control, and remote input monitoring in diverse industrial environments.

Q: When should I choose a module with both PNP and NPN selectable input types?

A: Select a module with both PNP and NPN options when your application requires flexibility to accommodate different sensor types or machine upgrades. The DRT2-ID16 adapts smoothly, allowing easy configuration per your requirements.

Q: Where can I request a sample of the OMRON DRT2-ID16 PLC card?

A: Samples are available through authorized suppliers, traders, or wholesalers based in China. Contact your preferred distributor or manufacturer to request a sample for hands-on evaluation before making a bulk purchase.

Q: What benefits does the LED status indicator provide for each input point?

A: The built-in LED indicators allow operators to instantly confirm the status of each input signal. This expedites troubleshooting, minimizes downtime, and enhances the overall efficiency of maintenance processes.

Q: How does the photocoupler isolation ensure device safety?

A: Photocoupler isolation in the DRT2-ID16 maintains electrical separation between input lines and internal circuitry, safeguarding sensitive electronic components from voltage surges and ensuring stable, safe operation.
