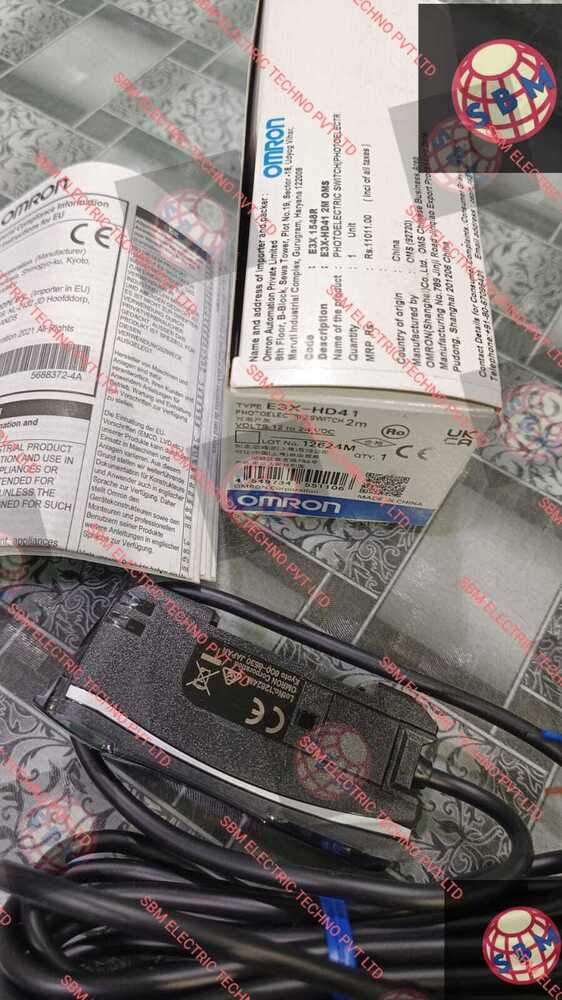

OMRON PHOTOELECTRIC SENSOR, E3X-HD41

OMRON PHOTOELECTRIC SENSOR, E3X-HD41 Specification

Mounting Type
DIN Rail mounting

Application
Industrial automation, conveyor systems, packaging, object detection

Operating Temperature
-10C to +55C

Sensitivity
Adjustable (manual/automatic setting)

Interface
Pushbutton/Display interface

Sensor Type
Digital Fiber Amplifier

Signal Type
Digital (ON/OFF output)

Response Time
Standard: 80 s max. / High-speed: 65 s max.

Wireless
No

IP Rating
IP50

Cable Length
2m Standard cable

Features
Digital display, Teach function, Easy-to-read high-contrast display, Slim body, Quick setting

Power Consumption
Max. 960 mW (at 24 VDC) (current consumption: max. 40 mA)

Measurement Range
Depends on fiber unit used

Product Type
Photoelectric Sensor Fiber Amplifier Unit

Material
Plastic (housing)

Input
Digital

Output
NPN/PNP open collector

Function
Light ON/Dark ON operation selectable

Usage
Sensing presence or absence of objects

Accuracy
High accuracy detection (digital setting)

Resolution
1 to 9999 (settable) (according to product spec)

Voltage
12 to 24 VDC

Weight
Approx. 70g

Ambient Humidity
35% to 85% RH (no condensation)

Control Method
Manual and auto teaching modes

Connection Method
Pre-wired cable

Model Number
E3X-HD41

Light Source
Red LED

Shock Resistance
500 m/s2, 3 times each in 6 directions

Vibration Resistance
10 to 55 Hz, 1.5-mm double amplitude

Display Type
Digital 7-segment LED display (red)

Max Output Current
100 mA max.

About OMRON PHOTOELECTRIC SENSOR, E3X-HD41

Unlock monumental efficiency with the OMRON PHOTOELECTRIC SENSOR, E3X-HD41-designed for industrial automation, conveyor systems, and packaging lines. Featuring a top digital 7-segment LED display and valorous high accuracy detection, this sensor champions best-in-class performance with competitive pricing. With selectable Light ON/Dark ON operation, NPN/PNP outputs, and robust resistance to shock and vibration, it ensures reliable object detection. The E3X-HD41's slim, durable design, quick settings, and multiple control modes make it a superior sensor for demanding environments.

Versatile Industrial Applications

The OMRON PHOTOELECTRIC SENSOR, E3X-HD41 excels in various media, such as conveyor systems, packaging, and manufacturing lines. Its application method supports both manual and automatic sensing, using a quick-teach function for optimal precision. The device is designed for surface installation through DIN rail mounting, ensuring a secure fit in control cabinets or on machinery. This sensor unlocks seamless integration with automated lines, detecting the presence or absence of objects across varying surfaces efficiently.

Certifications, Payment Terms, and Shipping Options

Rely on prompt, dependable delivery with express shipping and comprehensive transport services for your OMRON E3X-HD41. Shipped directly from China's reputable supplier networks, the sensor is available under flexible payment terms, ensuring a smooth procurement process. FOB port options are provided for global buyers seeking easy logistics management. Each sensor adheres to strict quality controls and comes with all necessary certifications, promising monumental reliability for demanding industrial applications.

FAQ's of OMRON PHOTOELECTRIC SENSOR, E3X-HD41:

Q: How does the E3X-HD41 sensor ensure reliable object detection?

A: With its high-accuracy digital setting and advanced manual or auto-teaching modes, the E3X-HD41 achieves precise detection of objects across varied industrial environments. Its selectable Light ON/Dark ON operation further enhances adaptability.

Q: What are the main benefits of the digital 7-segment LED display?

A: The digital 7-segment LED display provides quick, clear readings and simplifies configuration, allowing operators to monitor and adjust settings efficiently, even in low-light or fast-paced industrial environments.

Q: Where is this sensor typically installed, and what is the surface of application?

A: Designed for DIN rail mounting, the E3X-HD41 is typically installed inside control cabinets or on machinery within industrial automation, conveyor, or packaging lines, adapting to a wide range of mounting surfaces.

Q: What is the process for setting up the E3X-HD41 sensor?

A: Setup is straightforward with manual and automatic teaching modes, adjustable sensitivity, and an easy-to-use pushbutton and display interface, enabling quick installation and calibration for new applications.

Q: When should you consider using the E3X-HD41 over other photoelectric sensors?

A: Choose the E3X-HD41 for demanding applications requiring high detection accuracy, rapid response times, and robust resistance to shock and vibration, coupled with competitive pricing for best-in-class value.

Q: How are shipping and payment handled for this sensor?

A: OMRON E3X-HD41 sensors are shipped via express shipping or standard transport services from China, with varied payment terms available and flexible FOB port selections for convenient transaction processing worldwide.
