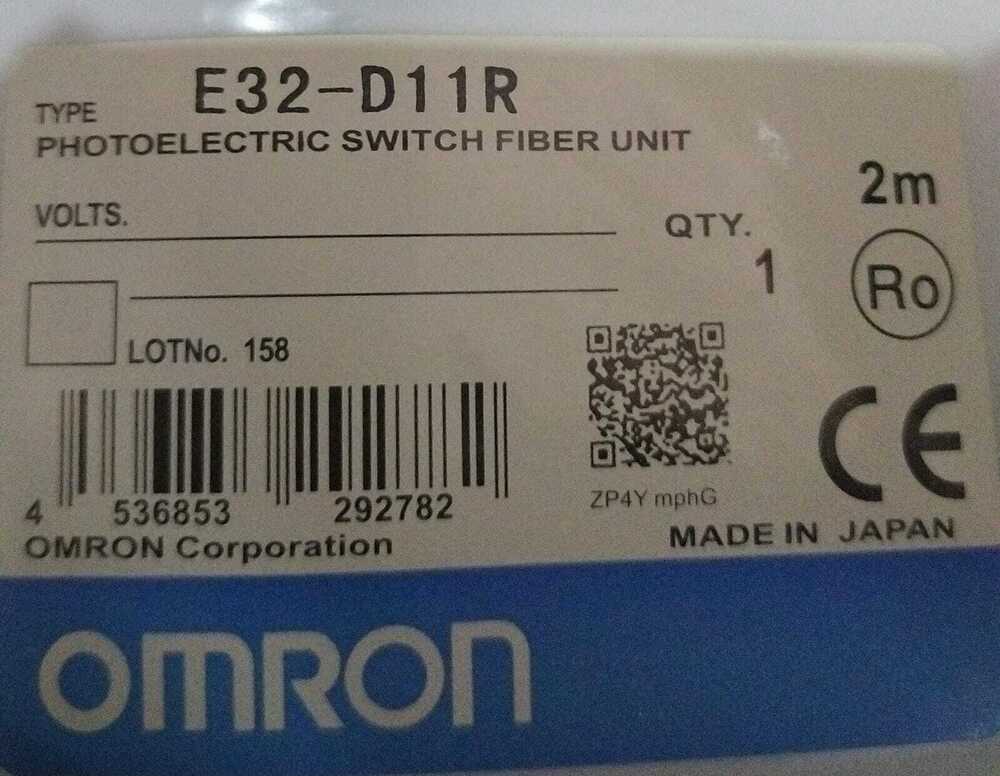

OMRON PHOTOELECTRIC SENSOR, E32-D11R

OMRON PHOTOELECTRIC SENSOR, E32-D11R Specification

Mounting Type
Panel, clamp, or screw mount

Wireless
No

IP Rating
IP67 (Sensor head)

Operating Temperature
-40C to 70C

Cable Length
2 m (standard), customizable

Measurement Range
Sensing distance up to 1,300 mm (with standard amplifier and convergent lens)

Sensitivity
Adjustable via amplifier unit

Features
Flexible fiber head, compact size, high chemical resistance

Application
Automation, counting, positioning, assembly machines

Response Time
As fast as 0.5 ms (with suitable amplifier)

Signal Type
Light ON/Dark ON (with amplifier)

Interface
Amplifier connection cable; no direct electrical interface

Power Consumption
Depends on amplifier (sensing head passive)

Sensor Type
Fiber Optic Photoelectric Sensor

Product Type
Photoelectric Sensor

Material
Stainless Steel / Plastic

Input
N/A (Sensing head only, connects to amplifier)

Output
Depends on amplifier (normally open/closed types available)

Function
Through-beam sensing

Usage
Detecting presence/absence of objects

Accuracy
High precision fiber-optic sensing

Resolution
Micron-level (depends on amplifier)

Voltage
Depends on amplifier used; typically 12-24V DC

Weight
Approx. 25 g

Vibration Resistance
10 to 55 Hz, 1.5 mm double amplitude, 2 hours each in X, Y, Z

Compliance
CE, RoHS

Maximum Ambient Humidity
35% to 85% RH (Non-condensing)

Housing Dimensions
M4 Threaded; approx. 34 mm length

Shock Resistance
500 m/s2, 3 times each in X, Y, Z axis

Minimum Bending Radius
R25 mm (fiber portion)

Light Source
LED (emitter via amplifier)

Fiber Core Diameter
1 mm (Standard fiber)

Connector Type
Pigtail cable with ferrule termination

About OMRON PHOTOELECTRIC SENSOR, E32-D11R

Experience wondrous detection accuracy with the OMRON PHOTOELECTRIC SENSOR, E32-D11R. This special, lofty sensor features a 1 mm fiber core diameter for micron-level resolution, making it perfect for automation, positioning, and counting. Built with a robust stainless steel and plastic housing, its gorgeous, compact M4 design fits anywhere. With adjustable sensitivity and a sensing distance up to 1,300 mm, it ensures high performance in demanding environments. Buy or buy online from a trusted supplier, trader, or wholesaler. Benefit from CE/RoHS compliance and an IP67 rating for harsh industrial applications.

Exceptional Suitability & Machine Features

OMRON PHOTOELECTRIC SENSOR, E32-D11R, is ideal for high-precision detection in assembly machines, automation, and manufacturing processes. Its micrometer-level resolution and fast (0.5 ms) response time guarantee accurate object presence and absence detection. Enjoy extra features like flexible fiber head design, robust shock and vibration resistance, and exceptional chemical tolerance, ensuring longevity and operational reliability even in challenging environments. This sensor stands out for its compact form factor and versatile mounting options.

Packaging, Payment Terms, and Sample Availability

We offer strong packaging and prompt transport services to ensure safe delivery of the OMRON E32-D11R across both domestic and export markets. Our packaging preserves the sensor's integrity. Flexible payment terms cater to diverse business needs, facilitating smooth transactions. Upon request, samples can be provided, allowing you to assess product suitability before bulk purchase. Trust us for efficient domestic or international logistics, ensuring timely fulfillment of your automation needs.

FAQ's of OMRON PHOTOELECTRIC SENSOR, E32-D11R:

Q: How does the OMRON E32-D11R detect objects with such high precision?

A: The E32-D11R utilizes a 1 mm fiber core paired with an LED light source and a highly sensitive amplifier (sold separately) to achieve micron-level resolution in detecting the presence or absence of objects.

Q: What applications is the OMRON PHOTOELECTRIC SENSOR, E32-D11R suitable for?

A: This sensor is well-suited for automation, counting, positioning, and assembly in both industrial and manufacturing settings, delivering reliable and precise detection performance.

Q: Where can I install the OMRON E32-D11R sensor?

A: Its compact, M4-threaded housing allows for installation using panel, clamp, or screw mounts, making it adaptable to a variety of machine layouts and environments.

Q: What are the benefits of choosing this model for automation projects?

A: The E32-D11R offers high chemical resistance, flexible installation, rapid response, and robust protection against environmental hazards, ensuring maximum reliability and efficiency in automation systems.

Q: How do I adjust the sensitivity of the E32-D11R sensor?

A: The sensor's sensitivity and operating modes (Light ON/Dark ON) are adjusted using a compatible amplifier unit, allowing users to tailor responses for specific applications.
