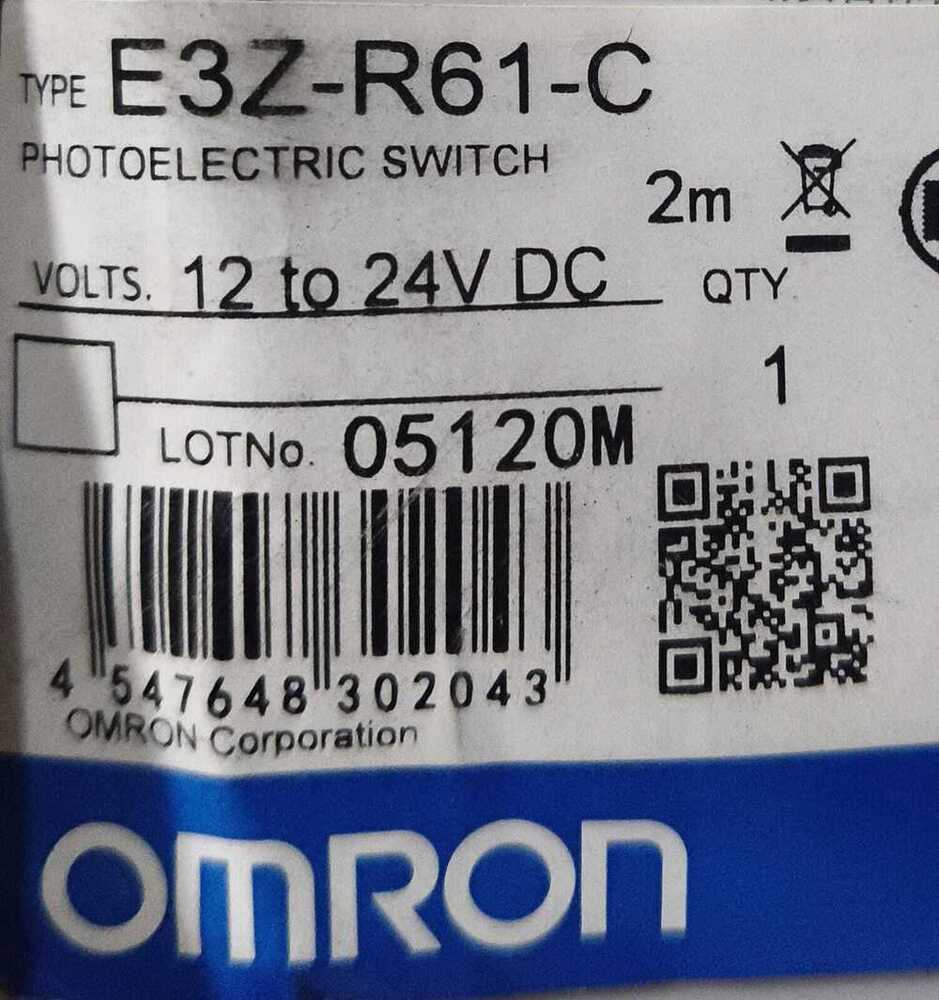

OMRON PHOTOELECTRIC SENSOR 12 TO 24VDC, E3Z-R61 2M

OMRON PHOTOELECTRIC SENSOR 12 TO 24VDC, E3Z-R61 2M Specification

Application
Industrial automation, conveyor systems, packaging, part detection

Power Consumption
Max. 25mA

Mounting Type
Panel or surface mounting

Signal Type
Digital (ON/OFF)

IP Rating
IP67

Features
Compact size, easy installation, high stability, reverse polarity protection, short-circuit protection

Sensor Type
Photoelectric

Operating Temperature
-25C to +55C (no icing or condensation)

Measurement Range
Detects up to 4m with E39-R1 reflector

Response Time
1 ms max.

Cable Length
2 meters

Wireless
No

Sensitivity
Adjustable (with sensitivity adjuster)

Interface
Cable connection

Product Type
Photoelectric Sensor

Material
PBT (Polybutylene Terephthalate) Housing

Input
12 to 24 V DC

Output
NPN open collector

Function
Retro-reflective sensing

Usage
Object detection

Accuracy
High precision; depends on installation and sensing distance

Resolution
Standard for retro-reflective type

Voltage
12-24V DC

Weight
Approximately 65g (including 2m cable)

Shock Resistance
500 m/s2 (approx. 50G)

Light Source
Red LED

Case Dimensions
10.8 x 20 x 31 mm

Sensing Method
Retro-reflective

Operating Humidity
35% to 85% RH

Indication
Operation indicator (red LED), stability indicator (green LED)

Maximum Load Current
100 mA max. at 30V DC

Vibration Resistance
10 to 55 Hz, 1.5 mm double amplitude

Emission Frequency
Approx. 3 kHz

Residual Voltage
1.0V max. at 100 mA load

Reflector Type
E39-R1

Control Output
NPN open collector, 100 mA max.

Repeat Accuracy
Within 0.5 mm

Connection Method
Pre-wired (2m cable)

OMRON PHOTOELECTRIC SENSOR 12 TO 24VDC, E3Z-R61 2M About

Experience outstanding accuracy and masterful durability with the OMRON PHOTOELECTRIC SENSOR 12 TO 24VDC, E3Z-R61 2M. This customizable sensor delivers reduced installation time and grand performance for various automation needs. Featuring a compact PBT housing, the photoelectric sensor utilizes a red LED light source and retro-reflective sensing method for reliable object detection within a range of up to 4 meters using an E39-R1 reflector. Benefit from high repeat accuracy within 0.5 mm, excellent resistance to vibration and shock, and robust protection with IP67. Purchase this exceptional detection solution for precise industrial automation, conveyor, and packaging applications.

Superior Performance & Versatile Applications

The OMRON PHOTOELECTRIC SENSOR, crafted from durable Polybutylene Terephthalate (PBT), delivers high precision object detection with outstanding reliability. Its robust construction ensures stability under harsh industrial environments, while the adjustable sensitivity offers flexibility for a range of applications such as industrial automation, conveyor systems, packaging, and part detection. The sensor's compact size and easy installation design further enhance its advantage in demanding operational settings.

Extensive Export Reach & Efficient Valuation Processes

The OMRON E3Z-R61 2M sensor is traded extensively in global export markets, including Europe, Asia, and North America, with a transparent valuation and sample policy for new clients. With competitive rates and reliable transport services, the main domestic market also benefits from quick delivery and exceptional after-sales support. This strategic market outreach underlines the sensor's grand appeal and efficiency, ensuring customer satisfaction at every transaction stage.

FAQ's of OMRON PHOTOELECTRIC SENSOR 12 TO 24VDC, E3Z-R61 2M:

Q: How does the OMRON E3Z-R61 2M achieve high accuracy in object detection?

A: The OMRON E3Z-R61 2M achieves high accuracy through its retro-reflective sensing method and repeat accuracy of within 0.5 mm, ensuring reliable detection for industrial applications.

Q: What types of industrial environments is this sensor suited for?

A: This sensor is highly suited for industrial automation, conveyor systems, packaging lines, and part detection, thanks to its IP67 rating, vibration resistance, and stable PBT housing.

Q: When should I consider using the sensitivity adjuster feature?

A: Use the sensitivity adjuster when you need to precisely tailor the sensor's performance for detecting objects with varying sizes or distances, enhancing versatility and reliability.

Q: Where can the OMRON E3Z-R61 2M be mounted?

A: The sensor can be mounted on panels or surfaces, offering flexibility for installation across different setups and operational layouts.

Q: What is the process for purchasing the OMRON E3Z-R61 2M sensor as a wholesaler or trader?

A: To purchase as a wholesaler or trader, contact the supplier directly for valuation, sample policy information, and customised shipping using efficient transport services and competitive rates.

Q: How can users benefit from the outstanding protection features of this sensor?

A: Users benefit from reverse polarity and short-circuit protection, IP67 waterproofing, and strong shock and vibration resistance, ensuring dependable long-term operation in challenging environments.
