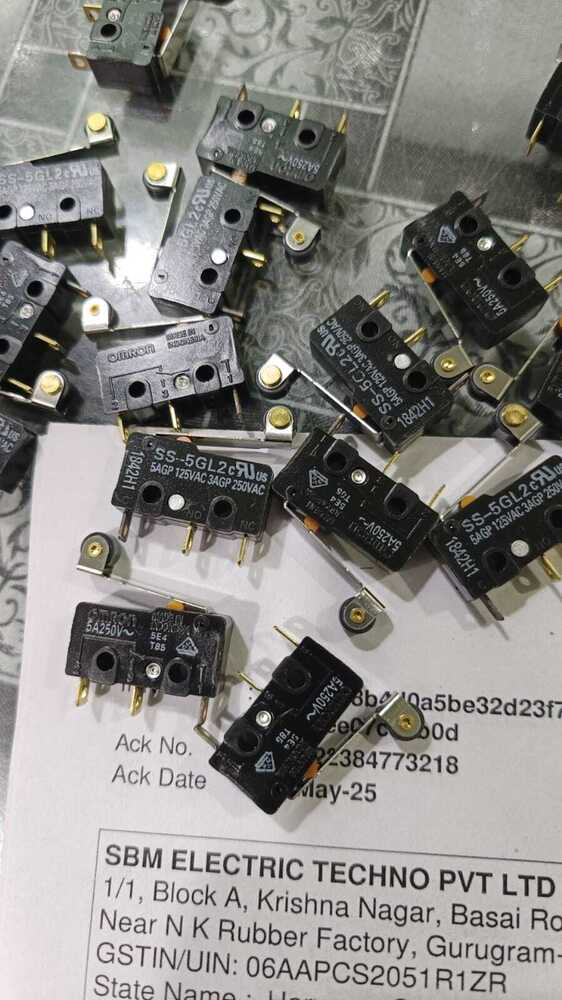

OMRON MICRO SWITCH, SS-5GL2

OMRON MICRO SWITCH, SS-5GL2 Specification

Response Time
Very Fast (Typical Microseconds)

Mechanical Life
10,000,000 cycles min.

Temperature Range
-25C to +85C

Finish Type
Matte

Rated Voltage
125/250V AC

Number of Module
1

Protection Level
IP40

Max. Current
5A

Automation Grade
Manual

Circuit Type
SPDT

Product Type
Micro Switch

Material
Plastic, Metal

Insulation Resistance
100 M min. (at 500 VDC)

Contact Resistance
30 m max.

Max. Voltage
250V AC

Operating Temperature
-25C to +85C

Stoke
0.5 mm (Free Position to Operating Position)

Size
19.8mm x 6.4mm x 10.2mm

Color
Black

Weight
About 1.5g

Mounting Type
PCB Mount, Solder

Current Rating
5A

No Of Poles
Single Pole

Pre-travel
1.2 mm max.

Release Force
20 gf min.

Operating Force
150 gf max.

Over-travel
0.25 mm min.

Terminal Configuration
PCB terminals

Contact Form
SPDT (Single Pole Double Throw)

Model
SS-5GL2

Electrical Life
50,000 cycles min. (at rated load)

Actuator Type
Lever

OMRON MICRO SWITCH, SS-5GL2 About

The OMRON MICRO SWITCH SS-5GL2 is a commanding and illustrious choice for reliable, precision automation. Crafted with a robust SPDT contact form, this Special switch features a Lever Actuator, PCB terminals, and a fast response time measured in microseconds. Its terrific durability is secured by an electrical life of at least 50,000 cycles, a mechanical life of over 10,000,000 cycles, and sturdy plastic and metal construction. With an IP40 protection level, it operates flawlessly between -25C to +85C. Markdown your requirements-Order Today to enjoy illustrious performance!

Versatile Applications and Usage Areas

The OMRON MICRO SWITCH SS-5GL2 is engineered for manual automation tasks, ideal for both industrial plants and commercial settings. Its application method is seamless: mount on PCBs using soldering techniques. Perfect for plant machinery, robotics, HVAC controls, and security equipment, this commanding micro switch delivers reliability in demanding environments. Trusted by suppliers, traders, and wholesalers alike, it provides dependable switching across factories, assembly lines, and control panels.

Swift Delivery and Secure Shipping

Enjoy special benefits with our prompt supply ability and secure shipping processes. After order confirmation, dispatching typically occurs within a couple of days, assuring quick arrival at your location. Payment terms are flexible, supporting safe and streamlined transactions. Whether you are purchasing in bulk as a supplier or ordering directly, expect swift, hassle-free delivery and secure handling that guarantee your OMRON MICRO SWITCH SS-5GL2 arrives intact and on time.

FAQ's of OMRON MICRO SWITCH, SS-5GL2:

Q: How do I install the OMRON MICRO SWITCH SS-5GL2 on a circuit board?

A: The SS-5GL2 is designed for easy PCB mounting. Simply solder the PCB terminals onto your board following standard procedures, and ensure the lever actuator is positioned for optimal mechanical interaction within your device.

Q: What are the primary areas of application for this micro switch?

A: This micro switch is most commonly used in robotics, industrial machinery, HVAC controls, security systems, and a variety of automation projects due to its reliability and compact size.

Q: When can I expect my order of OMRON MICRO SWITCH SS-5GL2 to arrive?

A: Orders are usually dispatched within a couple of days of confirmation. Delivery times depend on your location, but secure and prompt shipping ensures the product reaches you quickly and safely.

Q: What benefits does the SS-5GL2 offer over standard mini switches?

A: The SS-5GL2 stands out for its high mechanical and electrical lifecycle, terrific response time, and commanding performance even in challenging conditions, making it a reliable choice for demanding applications.

Q: Where should the SS-5GL2 micro switch be used for optimal performance?

A: For best results, install the switch in clean, dry environments. Its IP40 rating suits indoor applications, such as inside control panels or protected enclosures in factories or commercial settings.

Q: What is the process for wholesale or bulk ordering this product?

A: For wholesale or large orders, simply contact our sales team to discuss pricing, availability, and payment terms. We ensure fast processing and secure, bulk dispatching to meet your supply needs effectively.
