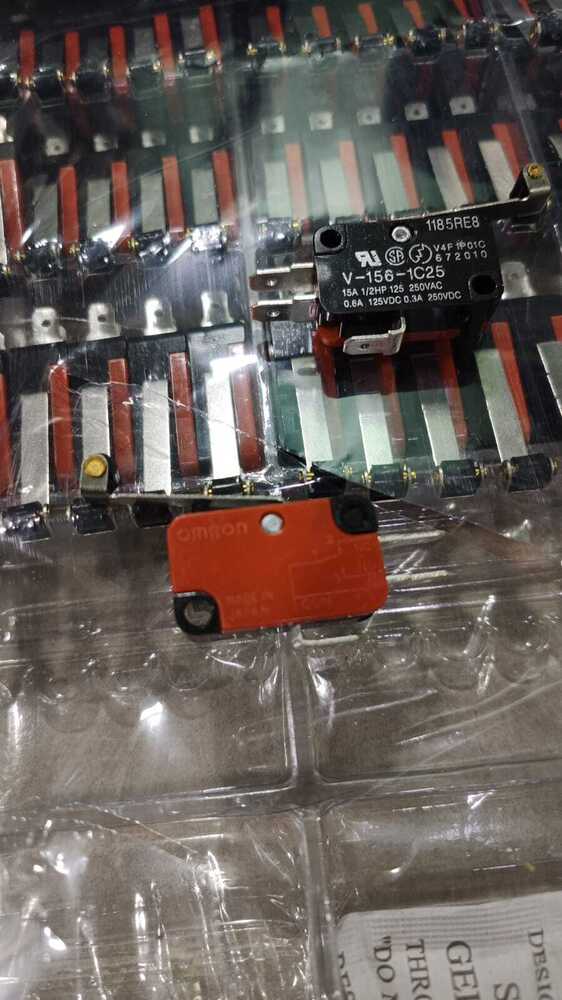

OMRON LIMIT SWITCH, V-156-1C25

OMRON LIMIT SWITCH, V-156-1C25 Specification

Circuit Type
SPDT (Single Pole Double Throw)

Response Time
Instantaneous

Protection Level
IP40

Temperature Range
-25 to +80C

Finish Type
Glossy/Matte combination

Max. Current
15A

Number of Module
Single

Mechanical Life
1,000,000 operations min.

Rated Voltage
250V AC, 30V DC

Automation Grade
Manual

Product Type
Limit Switch

Material
Plastic and Metal

Insulation Resistance
100 M min. (at 500 VDC)

Contact Resistance
15 m max. (initial)

Max. Voltage
250V AC

Operating Temperature
-25C to +80C (with no icing)

Stoke
25 mm approx.

Size
Approx. 49.2 16.1 26 mm

Color
Black

Weight
Approximately 20g

Mounting Type
Panel Mount or Screw Mounting

Current Rating
15A

No Of Poles
1 Pole

Overtravel
7 mm min.

Electrical Life
50,000 operations min.

Actuating Force
Maximum 400 gf (gram-force)

Insulation Material
Thermoplastic resin

Terminal Type
Screw terminal

Actuator Type
Hinge Lever

Dielectric Strength
1,000 VAC, 50/60 Hz for 1 min between terminals of same polarity

Release Position
8 mm min.

Release Force
Minimum 50 gf

Pretravel
13 mm max.

Contact Form
SPDT

Ambient Humidity
95% RH max.

About OMRON LIMIT SWITCH, V-156-1C25

This is your Last Chance to secure the OMRON LIMIT SWITCH, V-156-1C25 at a Special Rate! Designed with a hinge lever actuator and contact form SPDT, it ensures flawless operation with up to 1,000,000 mechanical cycles. The lofty 15A current rating, pivotal to heavy-duty applications, makes it ideal for rigorous control demands. Featuring a glossy/matte finish, robust thermoplastic resin insulation, and a fresh compact design, this switch provides trusted reliability. It is suitable for even high-humidity or variable temperature environments, all while maintaining pivotal performance and safety.

Versatile Application & Exceptional Performance

The OMRON LIMIT SWITCH, V-156-1C25 combines robust design advantage with broad application surfaces. Perfect for general use in industrial automation, machinery safety, or panel mounting, this switch handles demanding situations with a flawless SPDT circuit and instant response time. Its special construction provides optimal contact reliability and a lofty electrical life, making it suitable for pivotal roles where clean, safe switching is necessary.

Sample Policy & Flexible Transactions

OMRON LIMIT SWITCH, V-156-1C25 samples are available for those wishing to evaluate before a full purchase order. Sample delivery is prompt, minimizing outlay for initial testing. Payment terms are designed to be accommodating, supporting swift order turnaround and ensuring customer satisfaction from inquiry to delivery. This policy prioritizes seamless transaction processes to make procurement and evaluation effortless for traders, wholesalers, and end-users alike.

FAQ's of OMRON LIMIT SWITCH, V-156-1C25:

Q: How does the OMRON LIMIT SWITCH, V-156-1C25 ensure reliability in challenging environments?

A: The switch features a robust thermoplastic resin casing, IP40 protection, and can operate reliably at ambient humidity levels up to 95% RH and temperatures between -25C and +80C, ensuring flawless performance in diverse conditions.

Q: What are the specific applications of the V-156-1C25 limit switch?

A: It is widely used in industrial automation, machinery, safety interlocks, control panels, and any application requiring precise, reliable switching with high current capacity.

Q: When can I expect delivery after placing a purchase order?

A: Delivery is typically prompt. Upon placing a purchase order, standard processing and shipping times are communicated so you can plan your outlay and operations accordingly.

Q: Where can the V-156-1C25 be mounted?

A: This limit switch offers versatile mounting options and can be installed using either panel mount or screw mounting methods, adapting easily to various application surfaces.

Q: What benefits does the SPDT contact form provide?

A: The SPDT (Single Pole Double Throw) contact form allows for switching between two circuits, enhancing application versatility and enabling pivotal control functions in automation systems.

Q: How can I obtain a product sample for evaluation?

A: Product samples are available; simply contact your supplier or trader to request a sample and discuss specific sample policies and outlay requirements before making a larger purchase.
