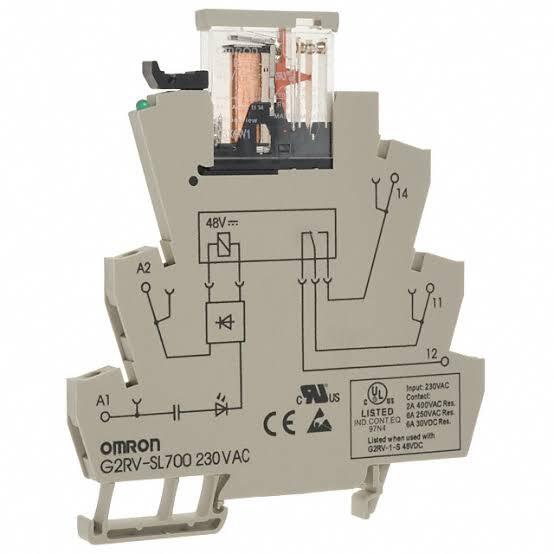

OMRON ELECTRICAL RELAY, G2RV-SL700,G3RV-ST700

OMRON ELECTRICAL RELAY, G2RV-SL700,G3RV-ST700 Specification

Contact Form
SPDT (Single Pole Double Throw)

Ambient Temperature
-40C to +55C Celsius (oC)

Contact Resistance
100m max. Milliohm (m)

Coil Voltage
24V DC, 230V AC Volt (V)

Coil Power
0.9W (DC); 1.2VA (AC)

Protect Feature
Finger-safe housing, surge protection

Contact Material
AgNi (Silver Nickel)

Power Consumption
0.9W (DC coil), 1.2VA (AC coil) Watt (W)

Working Temperature
Up to 55C Celsius (oC)

Product Type
Power Relay

Insulation Resistance
100 M min. at 500 VDC

Theory
Electromagnetic relay

Usage
Industrial control panels, automation systems, machinery

Contact Load
6A at 250V AC/24V DC

Terminal Type
Screw terminal

Rated Voltage
24V DC, 230V AC Volt (V)

Supply Terminal
DIN-rail mount

Color
Beige

Dimension (L*W*H)
79mm x 6.2mm x 32mm (Approx) Millimeter (mm)

Weight
About 50g Grams (g)

Model Variants
G2RV-SL700, G3RV-ST700

Shock Resistance
1,000 m/s2

Electrical Life
Over 100,000 operations at rated load

Vibration Resistance
10 to 55 Hz, 0.5mm double amplitude

LED Indicator
Built-in for coil status

Wire Size Range
0.5-2.5 mm2

Storage Temperature
-40C to +70C

Protection Degree
IP20

Package Contents
Relay base and module

Release Time
20 ms max.

Mounting Type
DIN Rail Mountable

Application
General purpose, interface relay for PLC and industrial automation

OMRON ELECTRICAL RELAY, G2RV-SL700,G3RV-ST700 Trade Information

Minimum Order Quantity
30 Number

Supply Ability
1000 Per Month

Delivery Time
7 Days

About OMRON ELECTRICAL RELAY, G2RV-SL700,G3RV-ST700

Utilise the noble opportunity to procure the OMRON Electrical Relay, models G2RV-SL700 and G3RV-ST700, at a remarkable markdown. Designed for crowning performance in industrial automation, these relays feature impeccable durability with over 100,000 electrical and 10,000,000 mechanical operations. Enjoy a slim, DIN-rail mountable profile, finger-safe housing, LED coil indicator, and robust vibration and shock resistance. Their adaptability from -40C to +70C, IP20 protection, SPDT contact form, and surge protection make them a distinguished choice for industrial control panels and machinery.

Versatile Usage and Application Method

The OMRON G2RV-SL700 and G3RV-ST700 relays are crafted for general-purpose deployment in industrial automation systems. Their usage is essential for interfacing PLCs, machinery, and control panels where reliable signal switching is paramount. Easily mount these DIN-rail relays within industrial control enclosures using screw terminals, ensuring swift integration and impeccable contact reliability. Their built-in LED indicator and wide wire size compatibility support an effortless and fail-safe application method for streamlined automation tasks.

Packaging, Delivery, and Certification Details

Every OMRON Electrical Relay is shipped with a relay base and module, securely packaged to maintain pristine condition during transit. Traders and wholesalers can expect swift order completion throughout the domestic market, ensuring minimal lead-times. All units are delivered with quality assurance and relevant certifications, guaranteed to meet international standards. The packaging reflects care and compliance, providing confidence from procurement to installation within demanding automation environments.

FAQs of OMRON ELECTRICAL RELAY, G2RV-SL700,G3RV-ST700:

Q: How does the OMRON Electrical Relay ensure safety in industrial applications?

A: The relay features a finger-safe housing and built-in surge protection, which reduce the risk of accidental contact and electrical disturbances during operation.

Q: What are the main benefits of installing the G2RV-SL700 and G3RV-ST700 relays in control panels?

A: These relays offer reliable switching, long mechanical and electrical life, LED coil status indicators, and slim DIN-rail mount design, making installation and monitoring straightforward.

Q: Where can these relays be most effectively utilised?

A: They are most effective in industrial automation systems, PLC interfacing, control panels, and machinery, especially where space is limited and durability is critical.

Q: What is the typical delivery time after placing an order in the domestic market?

A: Orders are swiftly processed and shipped, with delivery tailored to ensure rapid completion and minimal downtime for industrial clients.

Q: How can users verify proper relay installation and coil status?

A: The built-in LED indicator offers immediate visual feedback on the coil status, while screw terminals and DIN-rail mounting simplify and secure the installation process.
