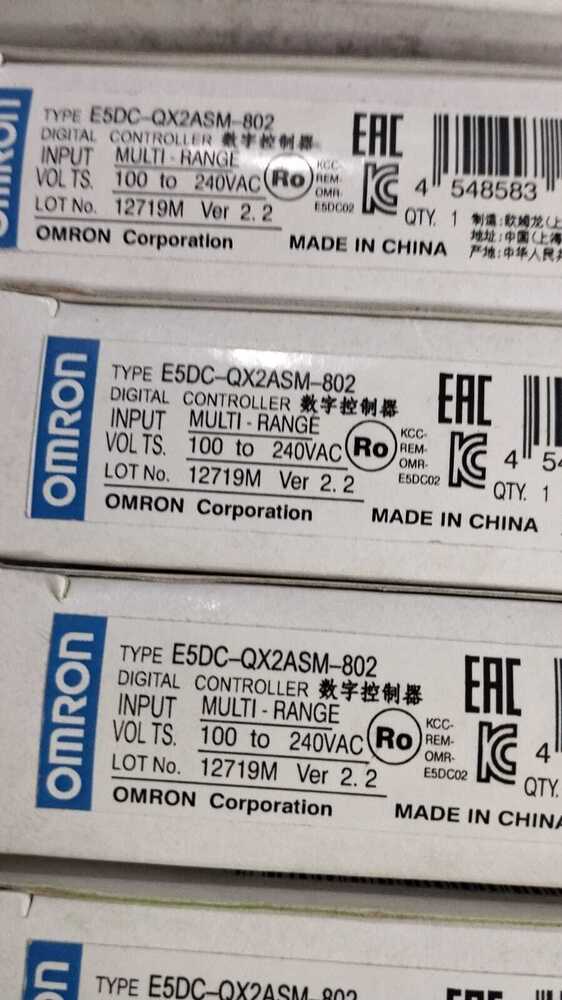

OMRON DIGITAL TEMPERATURE CONTROLLER, E5DC-QX2ASM-802

OMRON DIGITAL TEMPERATURE CONTROLLER, E5DC-QX2ASM-802 Specification

Type
Digital Temperature Controller

Theory
PID (Proportional-Integral-Derivative) Control

Exterior Material
Polycarbonate front, flame-resistive resin case

Interior Material
Electronic components and PCB

Insulation Material
Insulating resin (case)

External Size
22.5 mm (W) x 85 mm (H) x 100 mm (D) Millimeter (mm)

Heating System
External connection via relay output

Cooling System
External connection via relay output

Controller System
Microprocessor-based digital controller

Temperature Range
-10°C to 55°C (Operating); Setting range: -200°C to 2300°C (sensor dependent) Celsius (oC)

Applicable Standards
EN 61010-1, EN 61326-1

Control Output
Relay 250VAC 8A, Voltage (for SSR drive) 12VDC 21mA

Alarm Output
2 alarm outputs (configurable)

Ambient Humidity
25% to 85% RH (non-condensing)

Weight
Approx. 180g

Control Method
2-PID, ON/OFF, Manual

Protection Level
IP20 (terminal), IP66 (front, when panel mounted with optional cover)

Display Type
7-Segment LED (white) dual display

Communication
RS-485 (Modbus/RTU compatible)

Backup Function
EEPROM memory for setting retention

Power Supply Voltage
24V DC

Setting Method
Digital keys on front panel

Sampling Period
250 ms

Input Type
Universal input: Thermocouple, RTD, Analog (current/voltage)

Operation Indication
LED indicators for output, run/stop status

Model Number
E5DC-QX2ASM-802

Mounting Type
DIN rail mount

OMRON DIGITAL TEMPERATURE CONTROLLER, E5DC-QX2ASM-802 Trade Information

Minimum Order Quantity
30 Number

Supply Ability
1000 Per Month

Delivery Time
7 Days

About OMRON DIGITAL TEMPERATURE CONTROLLER, E5DC-QX2ASM-802

Capitalise on advanced temperature management with the OMRON DIGITAL TEMPERATURE CONTROLLER, E5DC-QX2ASM-802. Featuring a remarked dual 7-Segment LED display, this first-rate device offers universal input compatibility, reliable relay control output, and highly responsive 2-PID control methods. Its perfect DIN rail mount ensures easy installation for compact spaces. Equipped with digital keys and LED indicators, configuring and monitoring are effortless. Pick yours today and experience full protection rated IP66 (front). Shop now to upgrade with robust RS-485 communication and EEPROM backup, meeting EN standards.

Extensive Application and Versatile Usage

The OMRON E5DC-QX2ASM-802 digital temperature controller is widely used as an intelligent solution for precise temperature control in various industries. Its application media includes thermocouple, RTD, and analog sensors. Perfect for surface installation on panels or equipment, it is ideally suited for heating and cooling automation, ensuring stability and safety in production environments, laboratories, and industrial processing. Select this controller to optimise and automate temperature regulation across multiple surfaces and devices.

Sample Availability and Swift Supply

Sample units of the OMRON DIGITAL TEMPERATURE CONTROLLER, E5DC-QX2ASM-802 are available for evaluation. We maintain a stock ready for immediate shipment, with efficient supply ability to meet bulk demands. Following sample requests, our team ensures prompt dispatching and transparent sample policy details. Shipment procedures are streamlined for hassle-free delivery, guaranteeing you receive your controller promptly whether for single-unit testing or large-scale procurement needs.

FAQs of OMRON DIGITAL TEMPERATURE CONTROLLER, E5DC-QX2ASM-802:

Q: How is the OMRON E5DC-QX2ASM-802 operated and configured?

A: The controller is operated via digital keys located on the front panel, allowing users to easily set parameters and configure settings according to their application requirements.

Q: What input types are compatible with the device?

A: It supports universal inputs, including thermocouple, RTD, and analog signals (current/voltage), making it suitable for diverse temperature sensing applications.

Q: Where can the temperature controller be mounted?

A: The unit is designed for DIN rail mounting, providing flexibility and quick installation on machinery panels or in control cabinets.

Q: What are the main benefits of using this temperature controller?

A: Users benefit from precise temperature control, robust alarm outputs, reliable backup retention, and advanced communication interfaces like RS-485 for integration into automated systems.

Q: When can customers receive sample units after ordering?

A: Sample units are ready for dispatching and shipped promptly from stock to ensure you can quickly evaluate the product before making bulk purchases.

Q: What surfaces and media can this controller regulate?

A: It is suitable for regulating temperature across various surfaces and media where heating or cooling elements are externally connected, and can be adapted to different sensor types depending on process requirements.
